VPS09027 Vanquish Proucts H10 Optic 1/10 Scale 4WD Crawler Kit

VPS09027 – Vanquish Products H10 Optic 1/10 Scale 4WD Crawler Kit

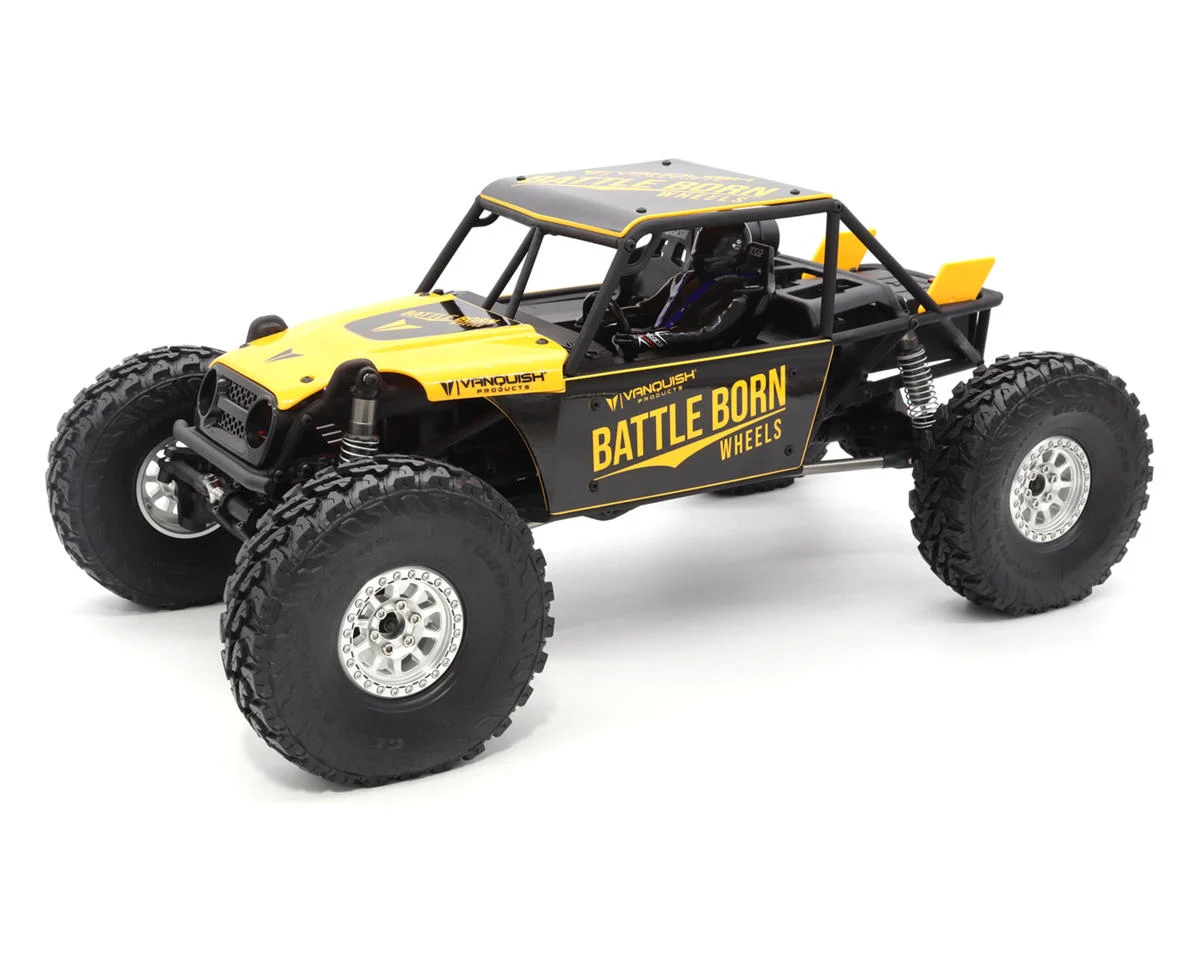

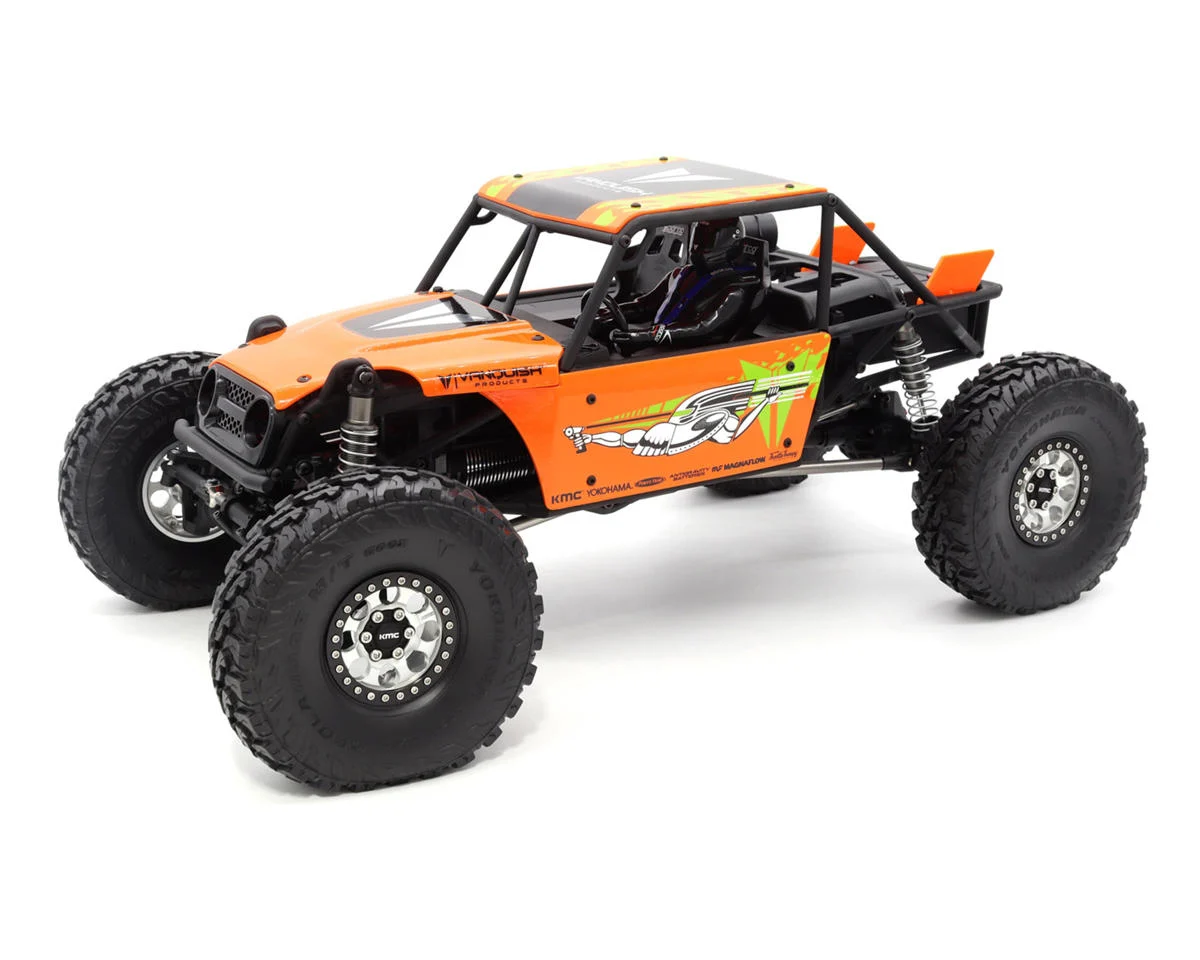

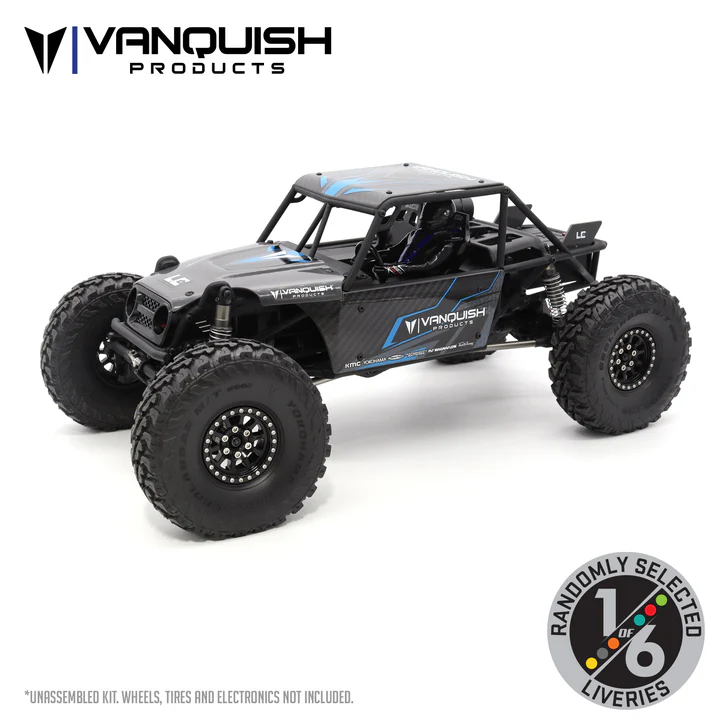

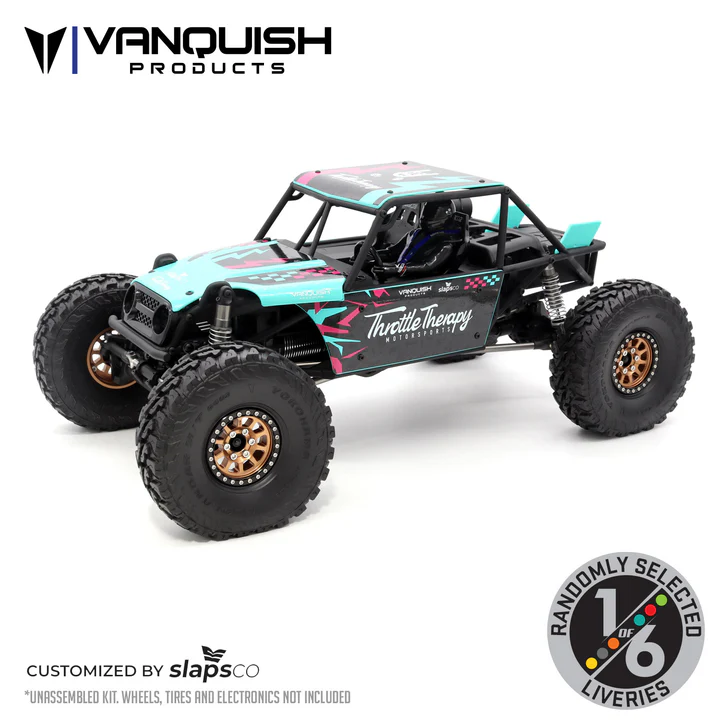

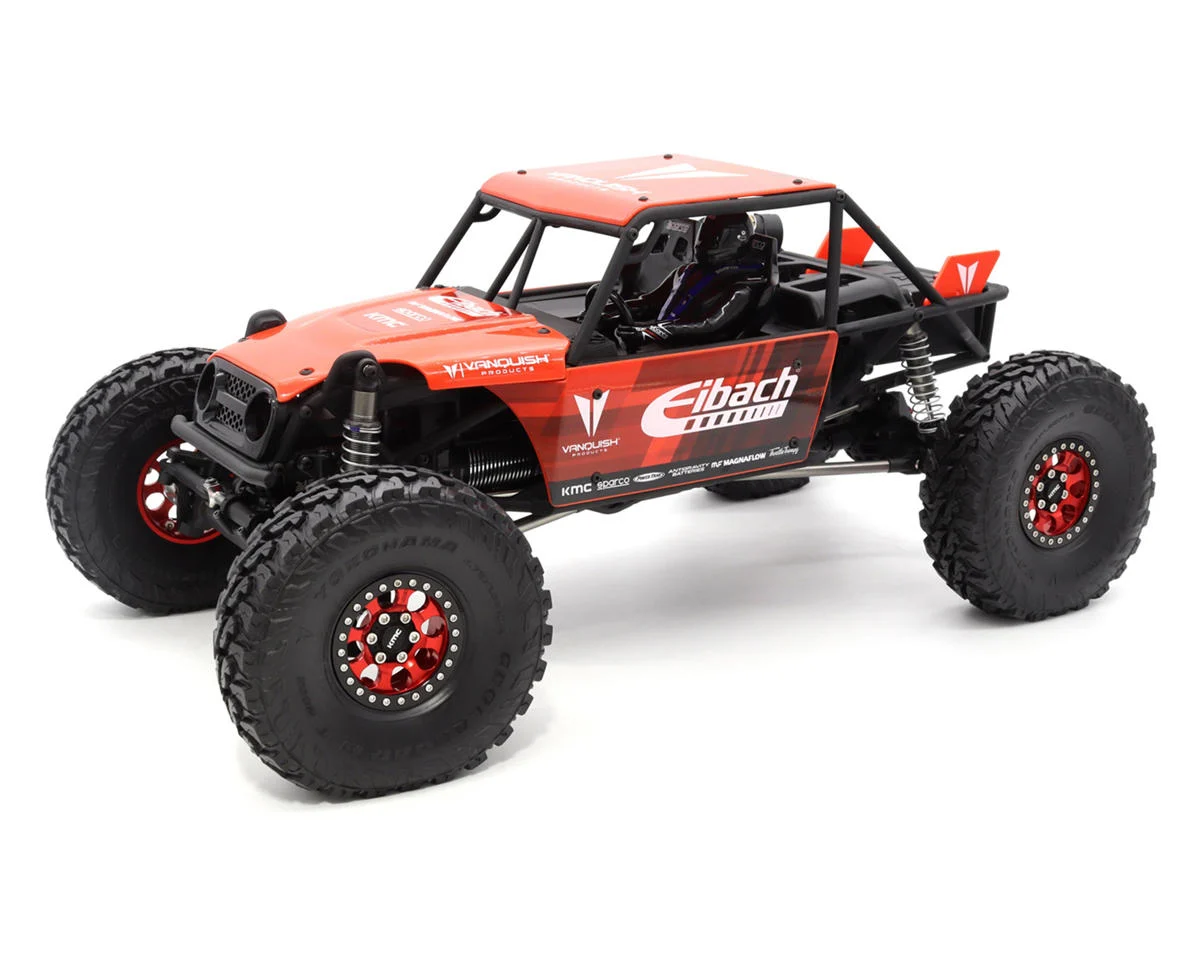

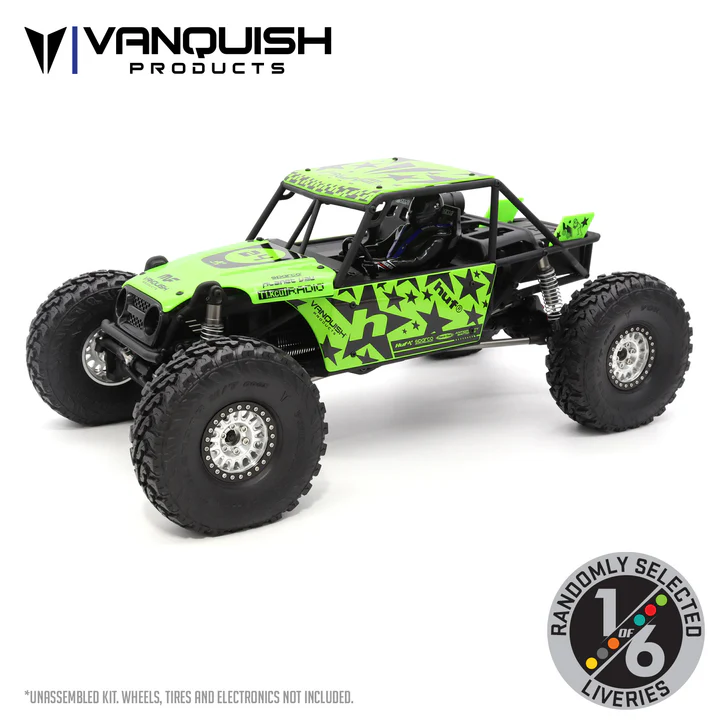

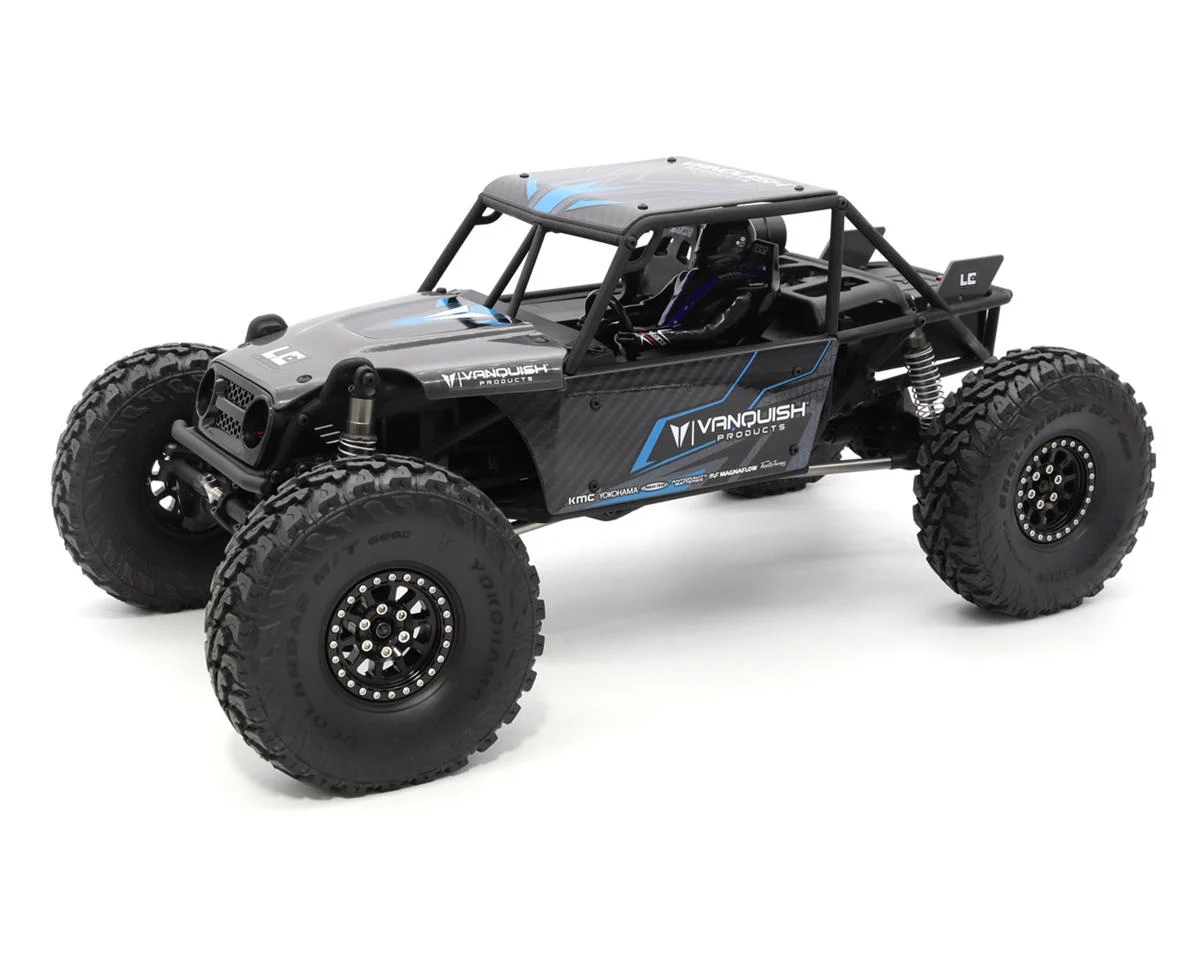

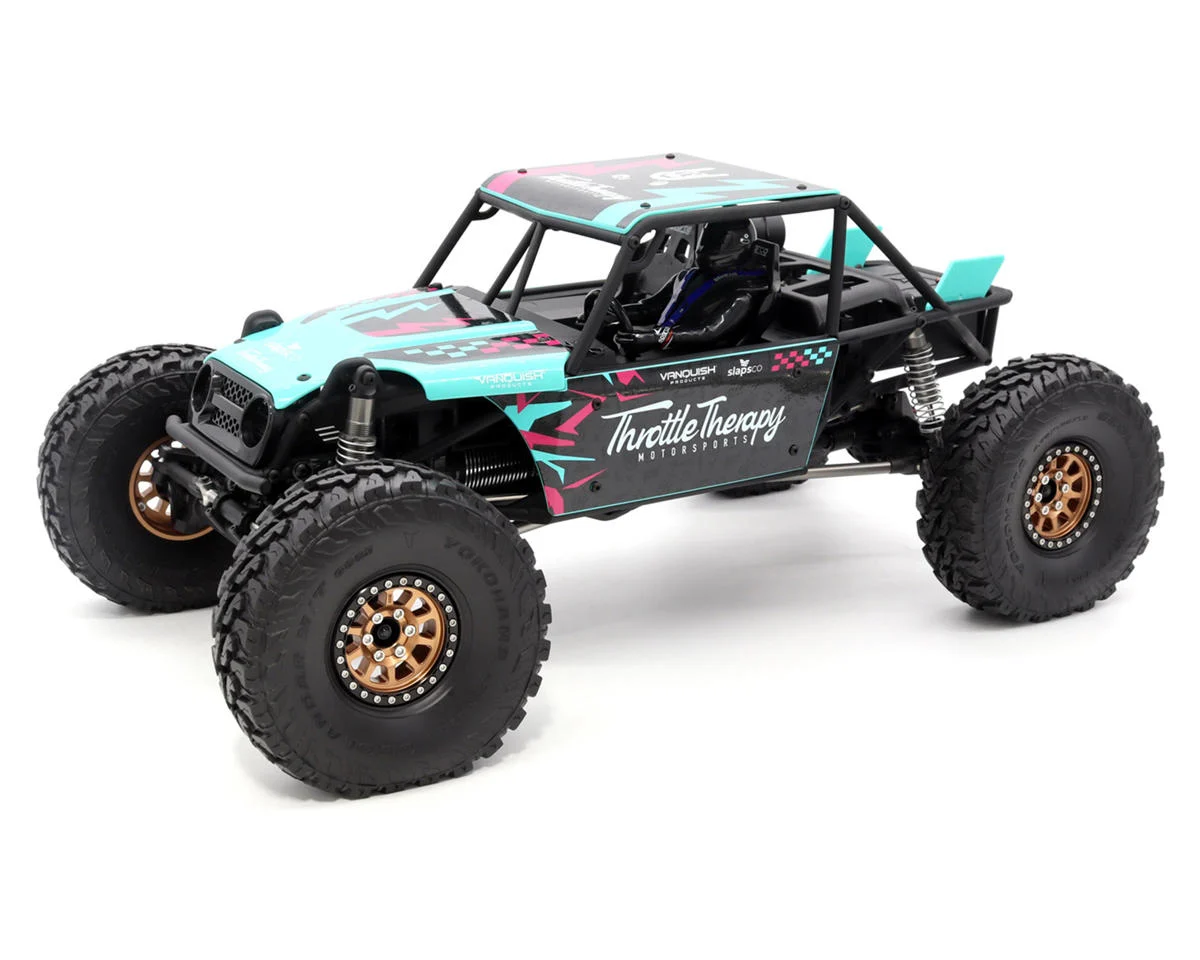

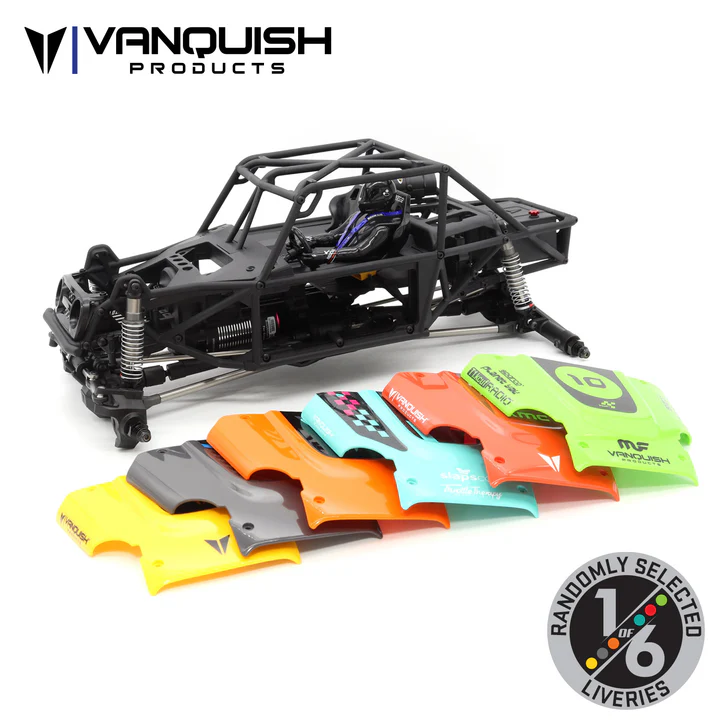

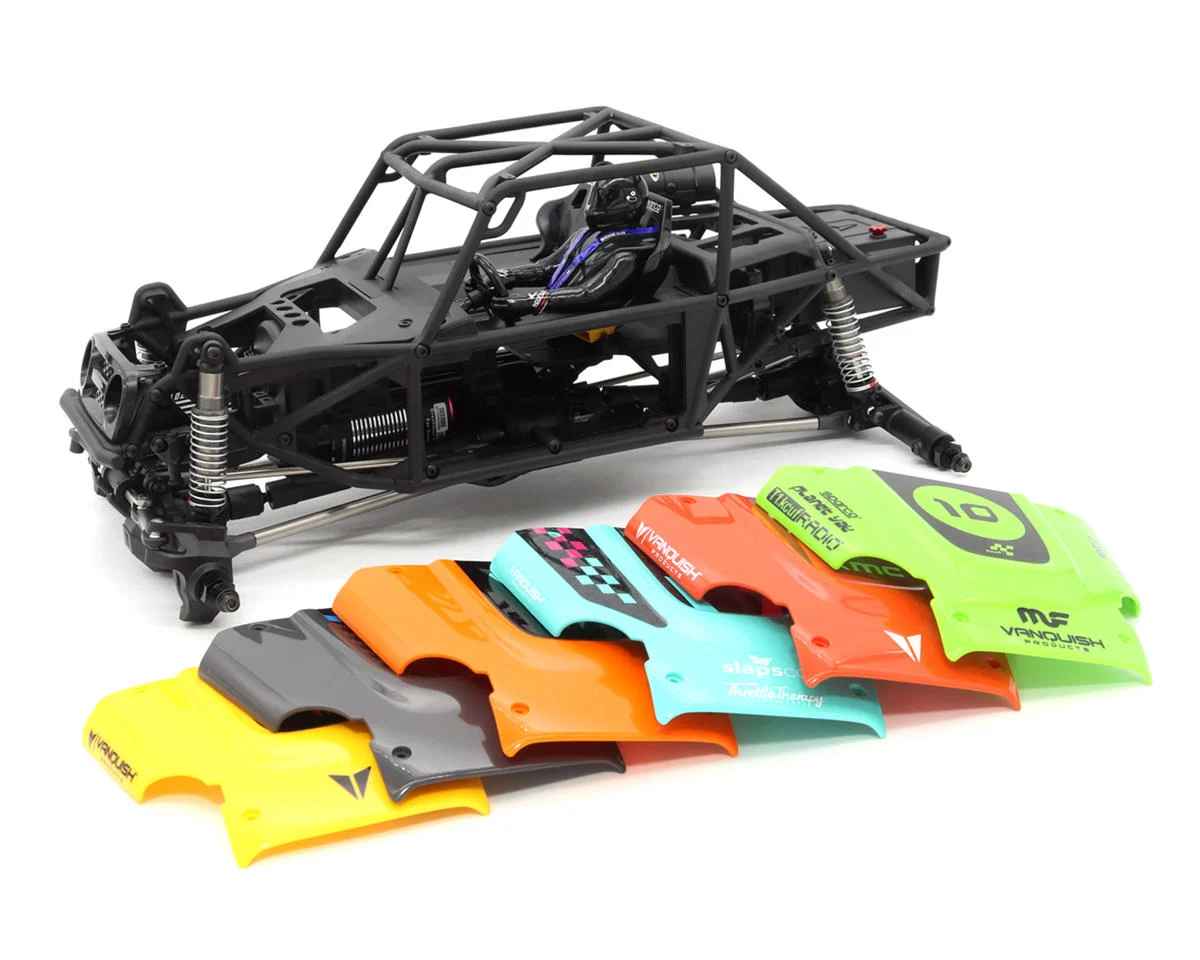

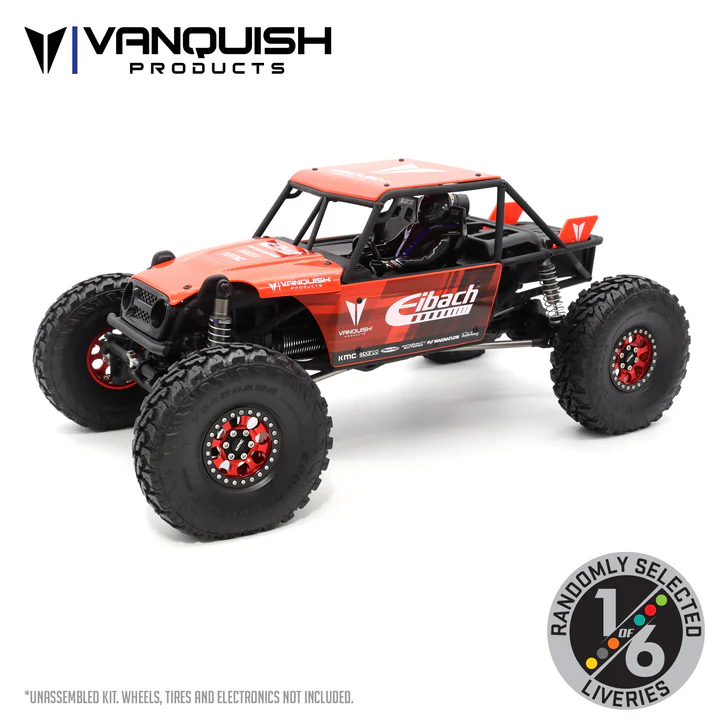

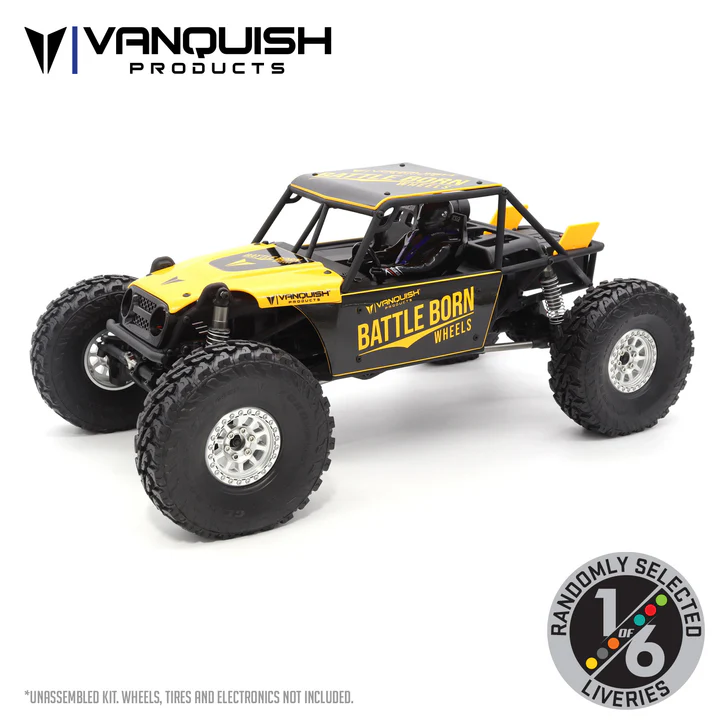

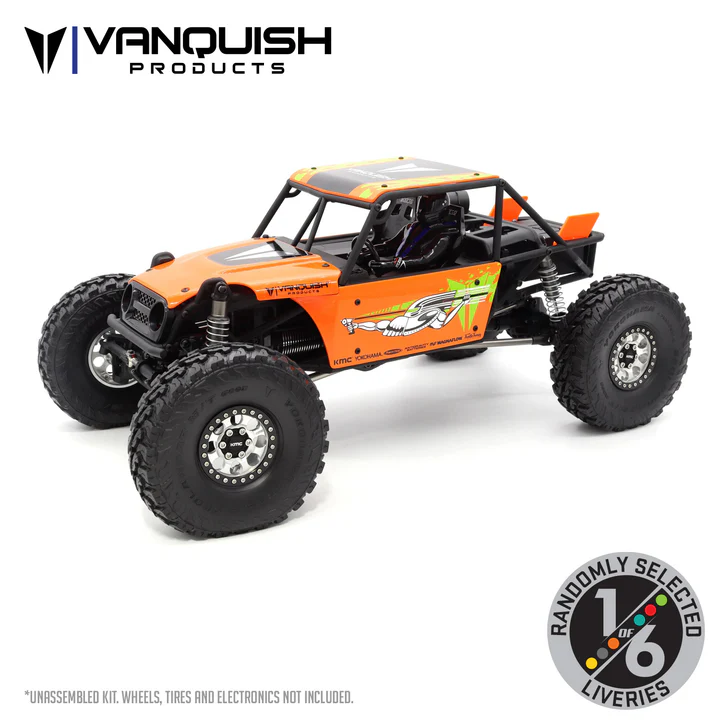

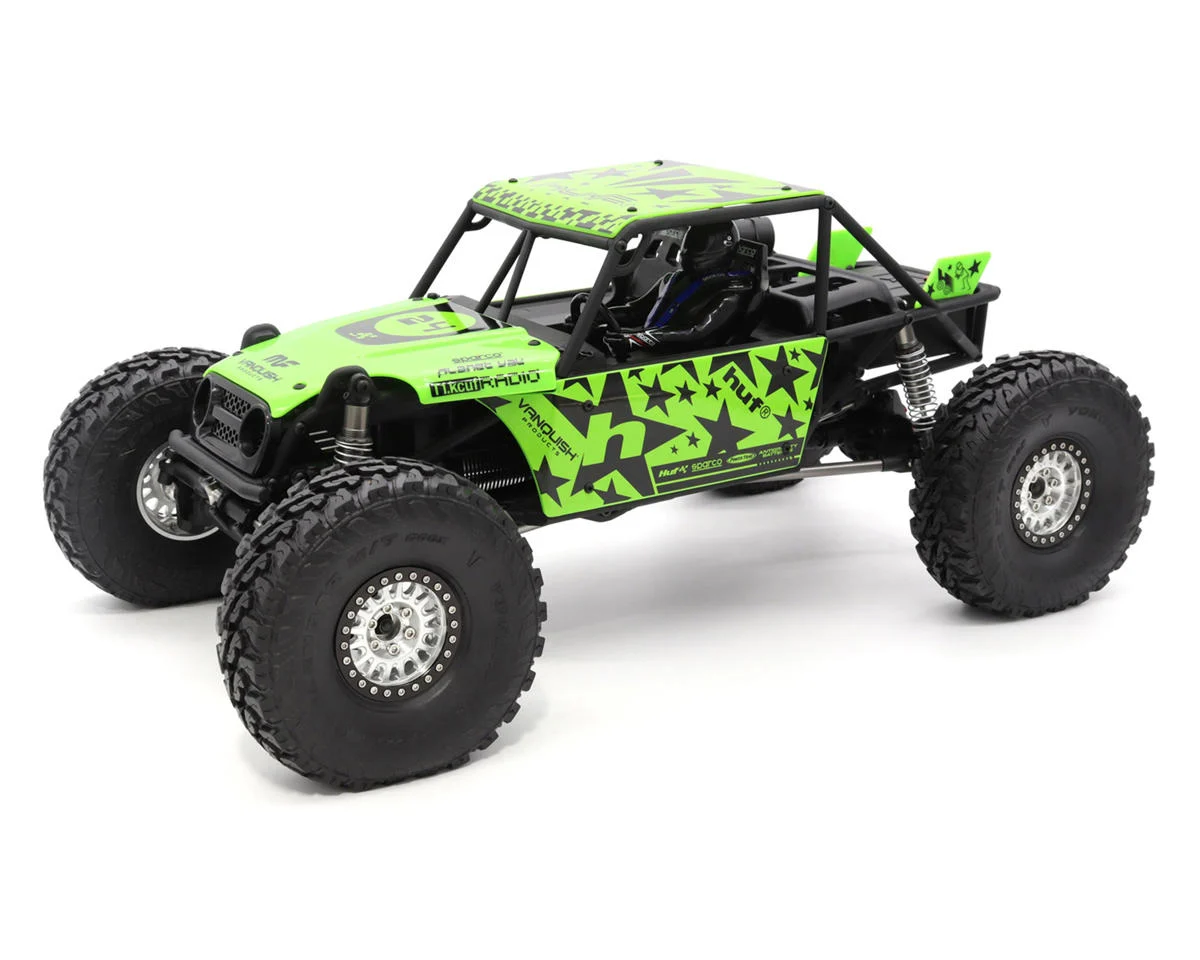

The H10 Optic Trail Buggy Kit is shipped with a randomly selected color and graphics package. Customers cannot choose a specific version, and the box does not indicate which design is included open your kit to discover which one you received. Please note that some images may show wheels and tires for illustrative purposes only; the H10 Optic Kit does not include wheels, tires, or electronics. See the disclaimer below for full details.

Designed from the ground up as the ultimate purpose-built trail truck, the H10 Optic draws inspiration from full-size buggies built to handle the toughest terrain. Its wide H10 axles broader than the standard F10 axles feature a scale hydraulic-style ram steering system. The servo is cleverly concealed behind the front axle and moves with the chassis during suspension travel, preserving scale accuracy while delivering high-performance control. A 13.25” wheelbase and increased track width enhance both stability and capability across rugged trails.

At its core, the H10 features the proven VFD transmission equipped with a machined motor plate, precision standoffs, and bearing plates. The low motor placement ensures a balanced and predictable driving experience. The front axle’s integrated hydraulic-style steering provides a direct, well-protected link between the front tires while maintaining a clean scale appearance. Both front and rear axles are exclusive to the H10 platform, paired with a 4-link suspension setup and a wide 8.11” hex-to-hex stance for increased trail confidence.

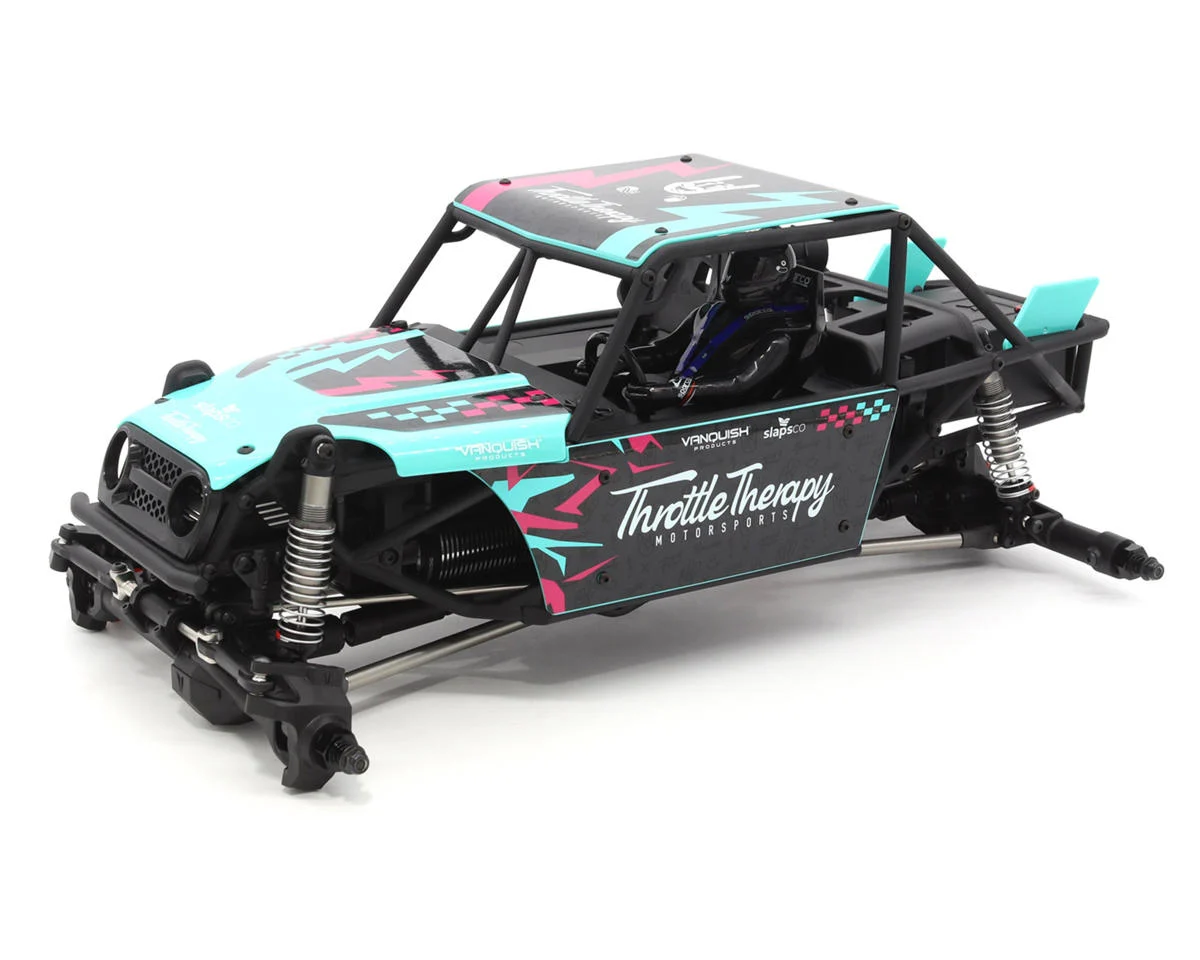

The Optic body is molded from tough ABS plastic commonly referred to as a “hard body” offering the H10 a realistic, rugged appearance with durable exterior panels. Underneath, you’ll find a highly detailed ABS interior tray, complete with a 3D driver figure seated in a Sparco EVO L QRT racing seat, wearing a full Sparco competition suit, RF-5W helmet, and Land+ gloves. Accessing the battery compartments is quick and easy thanks to a smart single-pin and latch system that secures each side panel for tool-free entry on the trail.

Specification:

1/10th Scale

Axle Ratio 3.75:1

Pinion 13T 32P

Spur 56T 32P

Overall Width Hex to Hex - 206mm (8.11”)

Wheelbase - 337mm (13.26”)

Overall Height (w/4.75" Tires) - 198mm (7.80”)

Overall Front Ratio 41.3:1

Overall Rear Ratio 44.0:1

Final Overdrive 6%

Battery Compartment Size: 93mm x 36mm x 42mm

Need to Complete:

ESC

540 Motor

Servo

Radio and Receiver

2-3S LiPo Battery (Compartment Size: 93MM X 36MM X 42MM)

Battery Charger

1.9 Wheels with SLW Hubs (Recommended)

4.75" Tall 1.9 Tires (Recommended)
