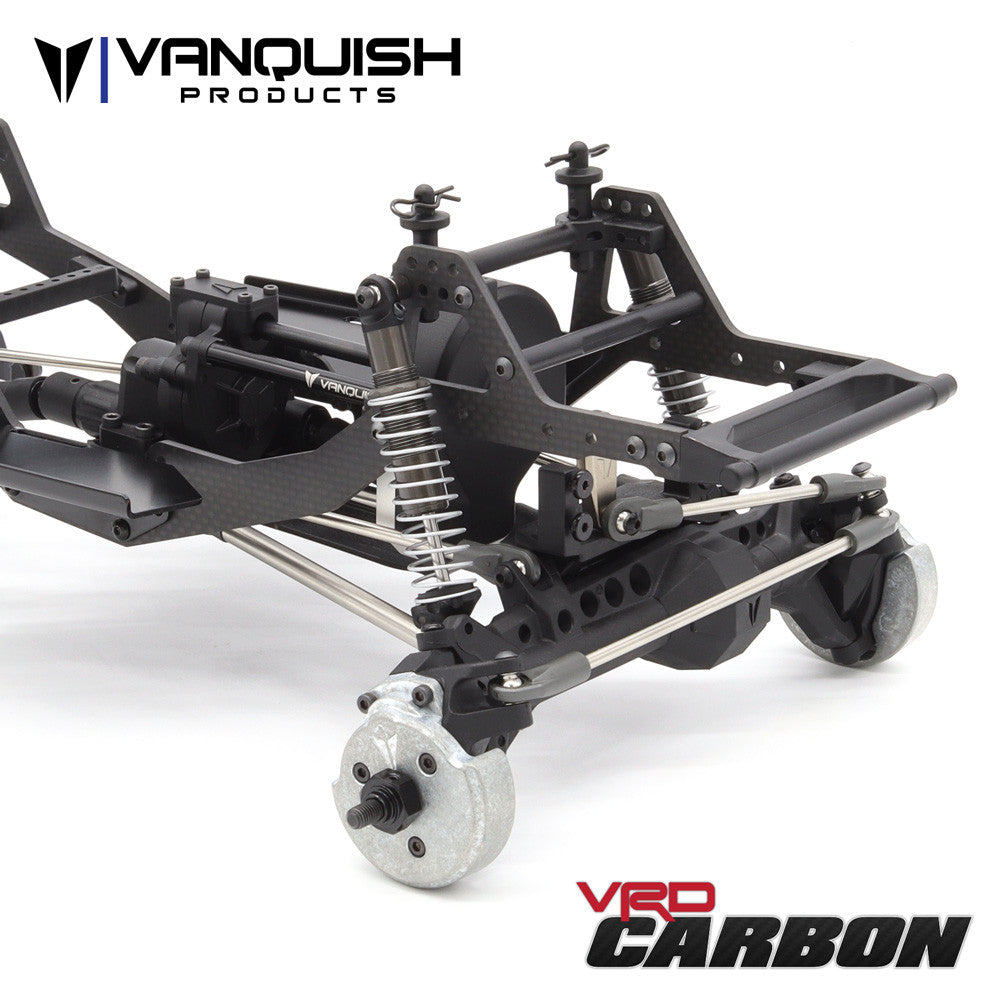

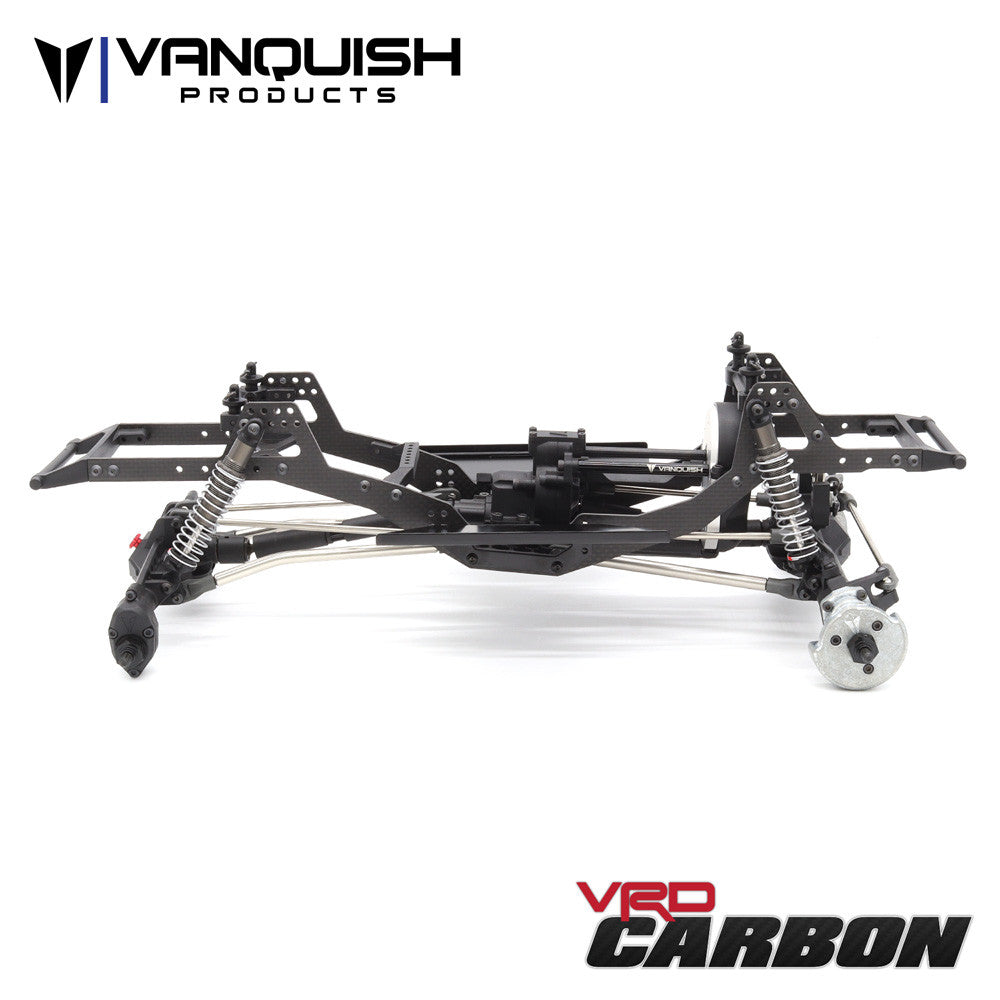

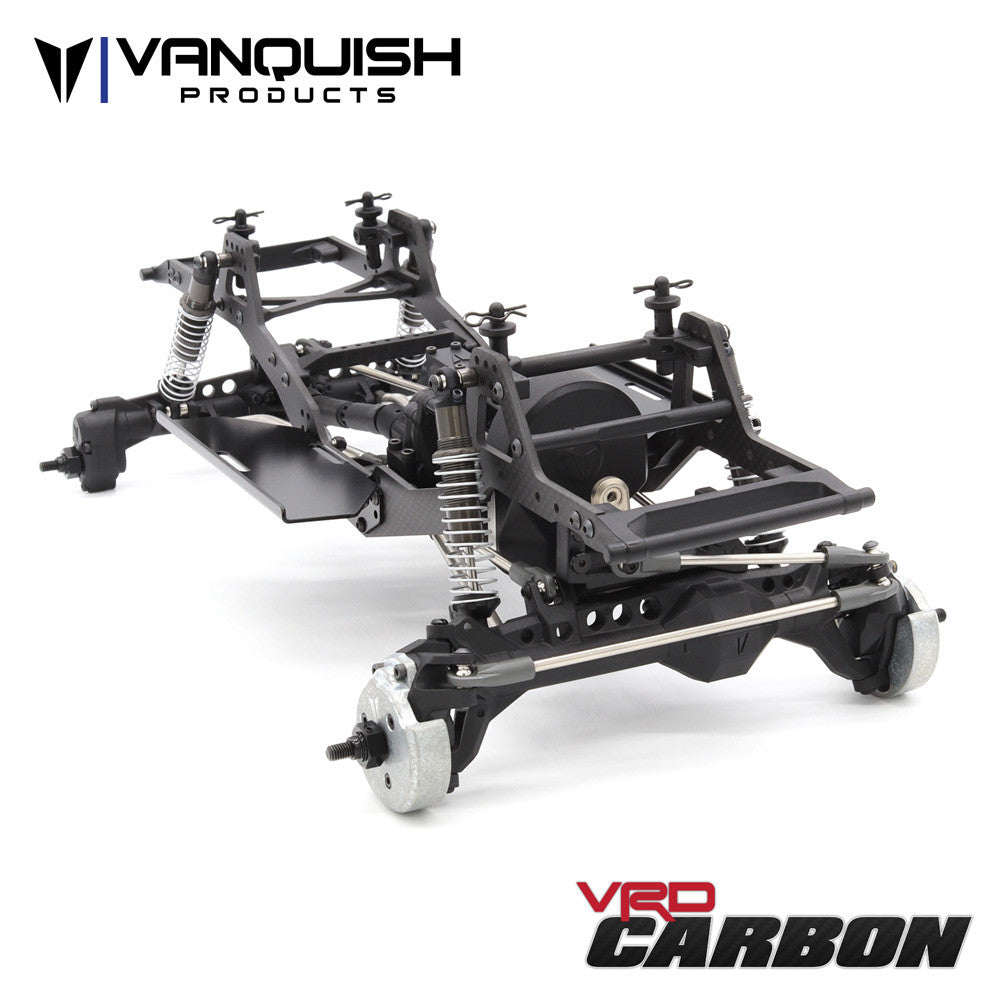

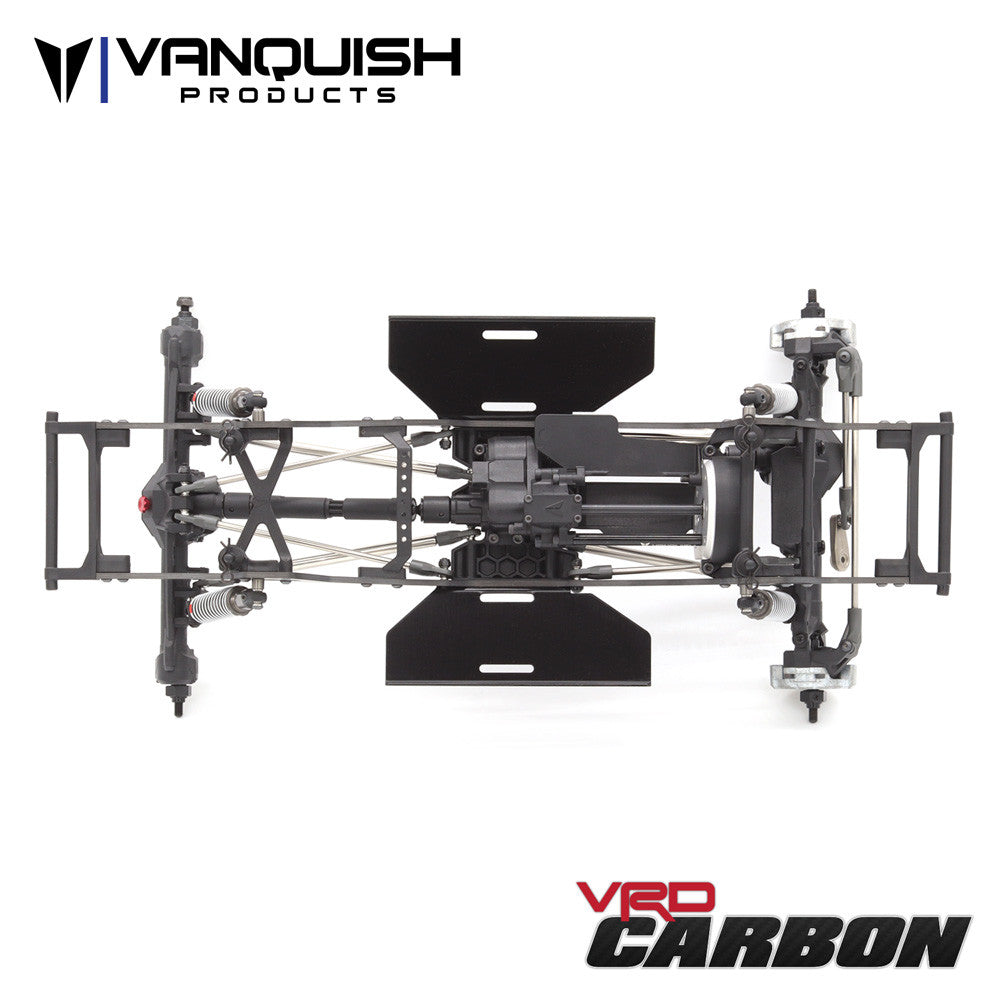

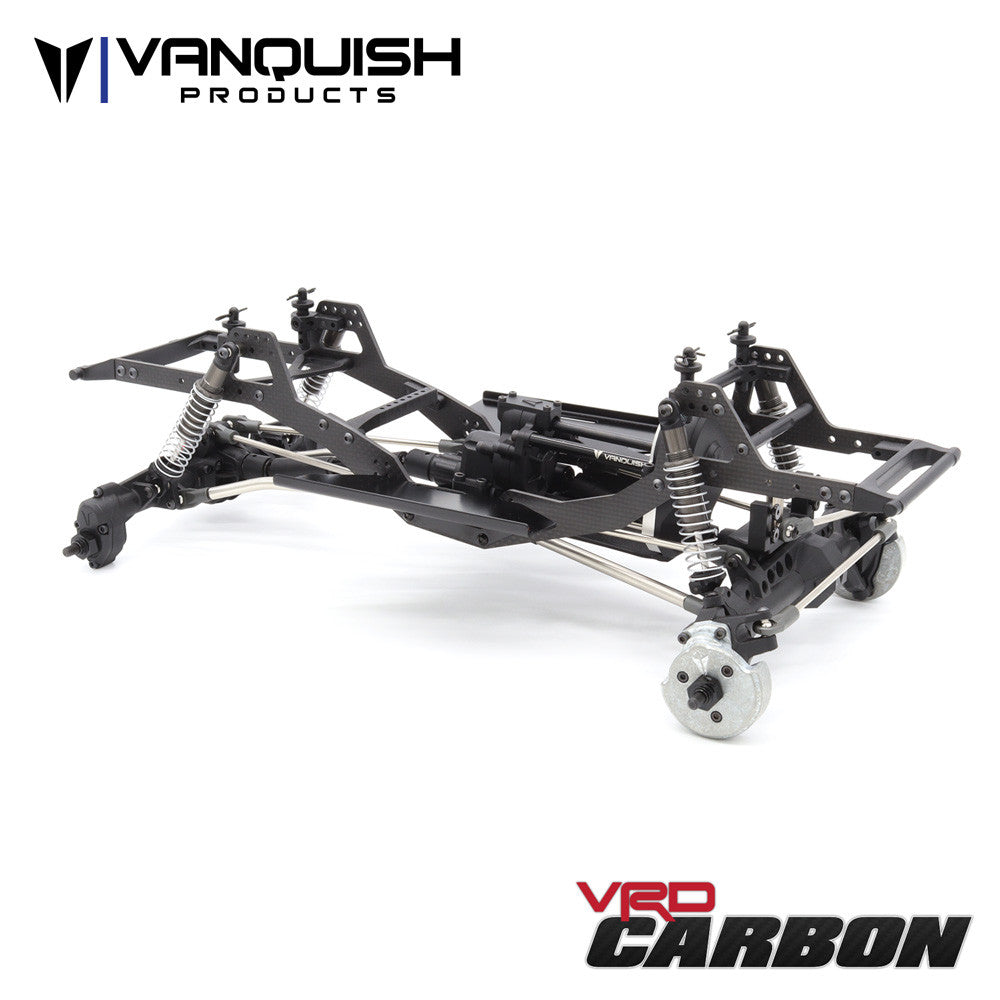

VPS09015 Vanquish Products VRD Carbon 1/10 Scale Competition Crawler Kit

Vanquish Products VRD Carbon Kit

Elite Performance. Pure Competition. Precision Engineered.

The VRD Carbon Kit is Vanquish Products' first-ever dedicated competition rock crawler platform, meticulously engineered by some of the most respected designers in the RC crawling world. This high-performance kit blends lightweight materials, precision drivetrain components, and tuned suspension geometry to deliver a predictable, capable, and tunable rig ready for serious comp use.

Key Features

• 3mm Matte Carbon Fiber Chassis Rails with 6° flat skid plate

• New Lightweight VFD Transmission with 21% internal overdrive

• F10 Portal Axles w/ overdrive front and standard rear gearing

• Final Overdrive: 37% for tight turning and forward weight bias

• Brass Weight Tubes (Front & Rear) + Alloy Portal Knuckle Weights

• Full Metal Drivetrain: Machined spools, ring/pinion gears, chromoly universals

• Stamped Aluminum Rock Sliders with integrated flat electronics mounting

• Incision S8E Shocks with hard anodized bodies and tunable lengths (85–95mm)

• Heavy-Duty Stainless Steel Links with bent rear lowers for clearance

• Incision Pro M4 Rod Ends for strength and precision

• Adjustable Body and Shock Mounting Points for fine-tuning setup

Engineered for the Trail and the Podium

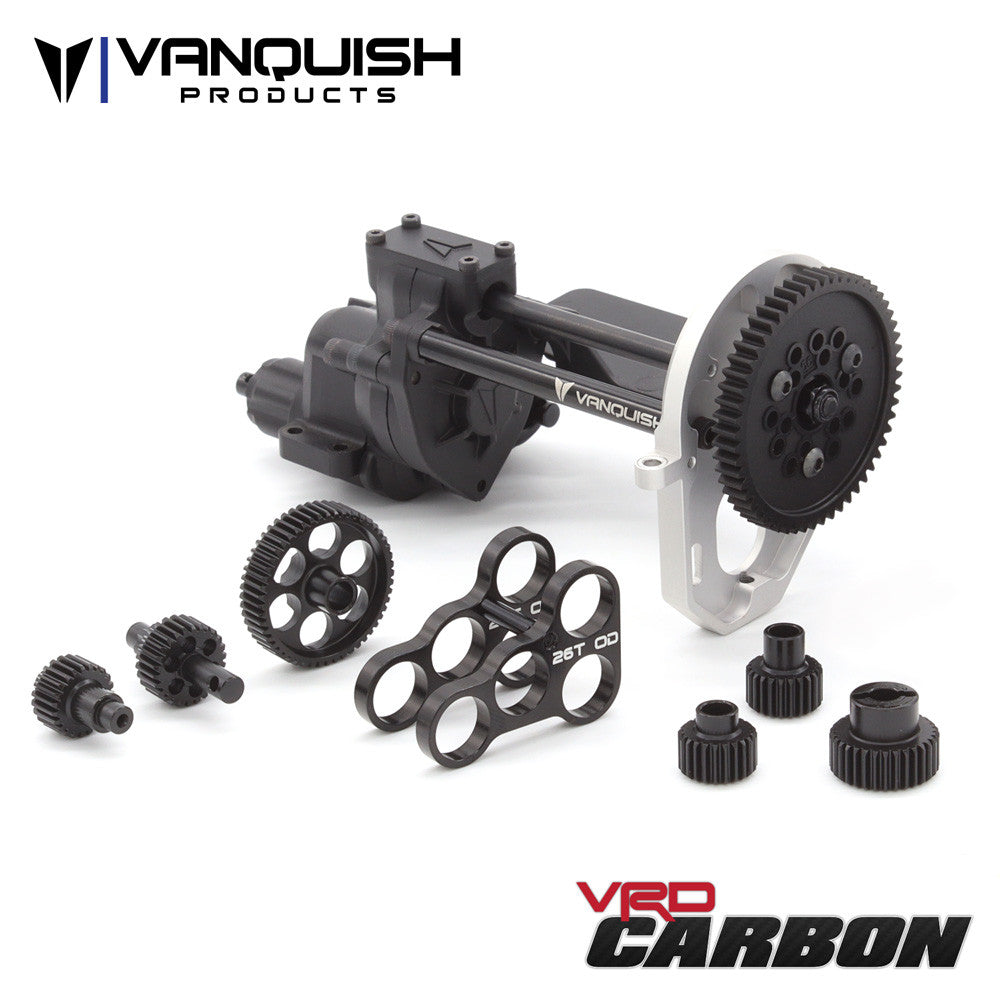

At its core, the VRD Carbon Kit features Vanquish's all-new Lightweight Spec VFD Transmission, optimized for minimal weight and maximum strength. It includes machined aluminum internals and bearing plates, dropping grams without compromising durability. The transmission’s 21% T-case overdrive, combined with the overdriven front F10 portal axle, gives you a competitive edge with a total final overdrive of 37%.

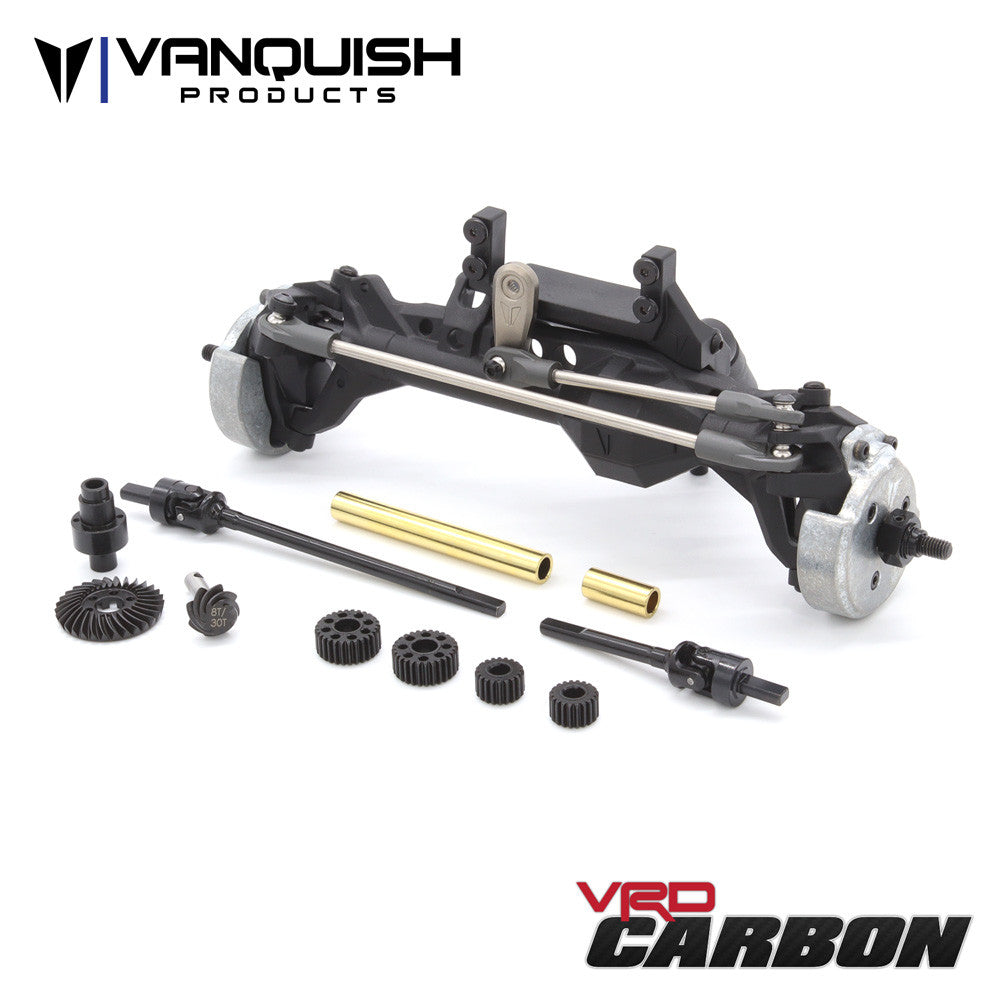

The F10 axles Vanquish’s heaviest spec yet include internal brass weight tubes and front alloy knuckle covers, pushing weight low and forward for superior stability and crawl capability.

Chassis & Suspension

The VRD Carbon chassis is ultra-rigid, featherlight, and fully tunable. You get multiple body and shock mounting points, minimalistic front/rear bumpers, and flat rock sliders designed to double as mounting platforms for electronics or batteries.

Suspension is handled by Incision S8E hard anodized shocks, stainless steel lower links, and bent rear links for better breakover angles. With multiple shock positions and adjustable lengths, this kit adapts to any terrain or comp class.

Specifications

• Scale: 1/10

• Wheelbase: 322mm (12.67”)

• Width (Hex-to-Hex): 200mm (7.87”)

• Front Axle Ratio: 5.25:1

• Rear Axle Ratio: 6.25:1

• Pinion/Spur: 15T/52T (32P)

• Overall Gear Ratios:

  • Front: 46.5:1

  • Rear: 68:1

• Final Overdrive: 37%

• Recommended Tires: 1.9 x 4.75”

• Recommended Wheels: 1.9” Vanquish or SLW-compatible

Required to Complete:

• Tools & Paint

• Comp-style 1/10 body

• 1.9” wheels & 4.75” tires

• Transmitter/Receiver

• 25-spline steering servo

• 540-size motor

• ESC & battery (max size: 35x35x100mm)

• LiPo charger
