VPS09010B Vanquish Products H10 Optic 1/10 Scale Sparco RTR Crawler

H10 Optic RTR Trail Buggy

Purpose-Built. Trail-Ready. Unmistakably Scale.

The H10 Optic RTR Trail Buggy is a ground-up design built to dominate rugged trails with precision, stability, and unmatched scale realism. Inspired by ultra-capable full-size trail buggies, the H10 features a detailed caged chassis that proudly showcases its aggressive Yokohama Geolandar M/T tires, giving it an authentic, open-wheel look.

At the heart of the Optic is the proven VFD transmission, mounted low for optimal balance and control. The all-new H10-specific front and rear axles deliver an extended 8.11” hex width and feature a 4-link suspension system, engineered to provide superior articulation and trail performance. Most notably, the integrated hydro-style ram steering system hides the servo behind the front axle for a clean scale look tucking seamlessly into the chassis during suspension compression.

Built for Performance and Realism

With a 13.25” wheelbase and widened stance, the H10 chassis brings new levels of capability and stability to the 1.9 trail truck class. Both front and rear H10 axles are exclusive to this platform and deliver enhanced performance while maintaining stunning visual accuracy.

The Optic trail buggy body is crafted from durable injection-molded ABS hard plastic, offering a rigid, realistic appearance and feel. Under the body panels, you’ll find a highly detailed interior tray with a fully outfitted 3D driver figure, complete with Sparco EVO L QRT racing seat, RF-5W helmet, and Land+ gloves bringing unmatched scale detail to the trail.

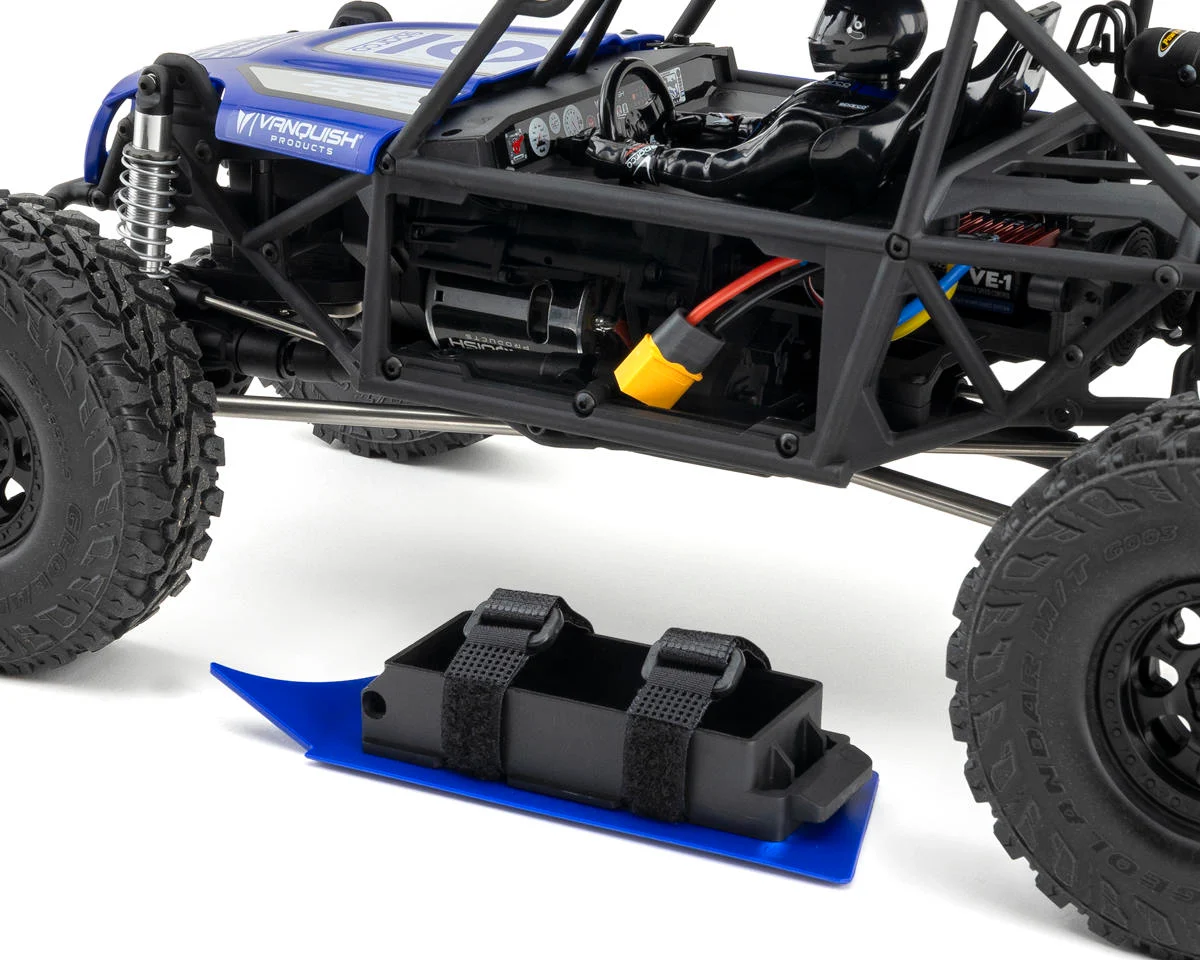

Access to the battery compartment is trail-friendly, thanks to a smart quick-release pin and latch system that allows you to remove the side panels quickly and easily—no tools required.

Key Features

• Cage-Style Chassis for maximum visibility of tire articulation and a true trail buggy look

• Durable ABS Hard Body with molded Optic panels and detailed interior tray

• 13.25" Wheelbase and 8.11” Hex Width for unmatched stability and control

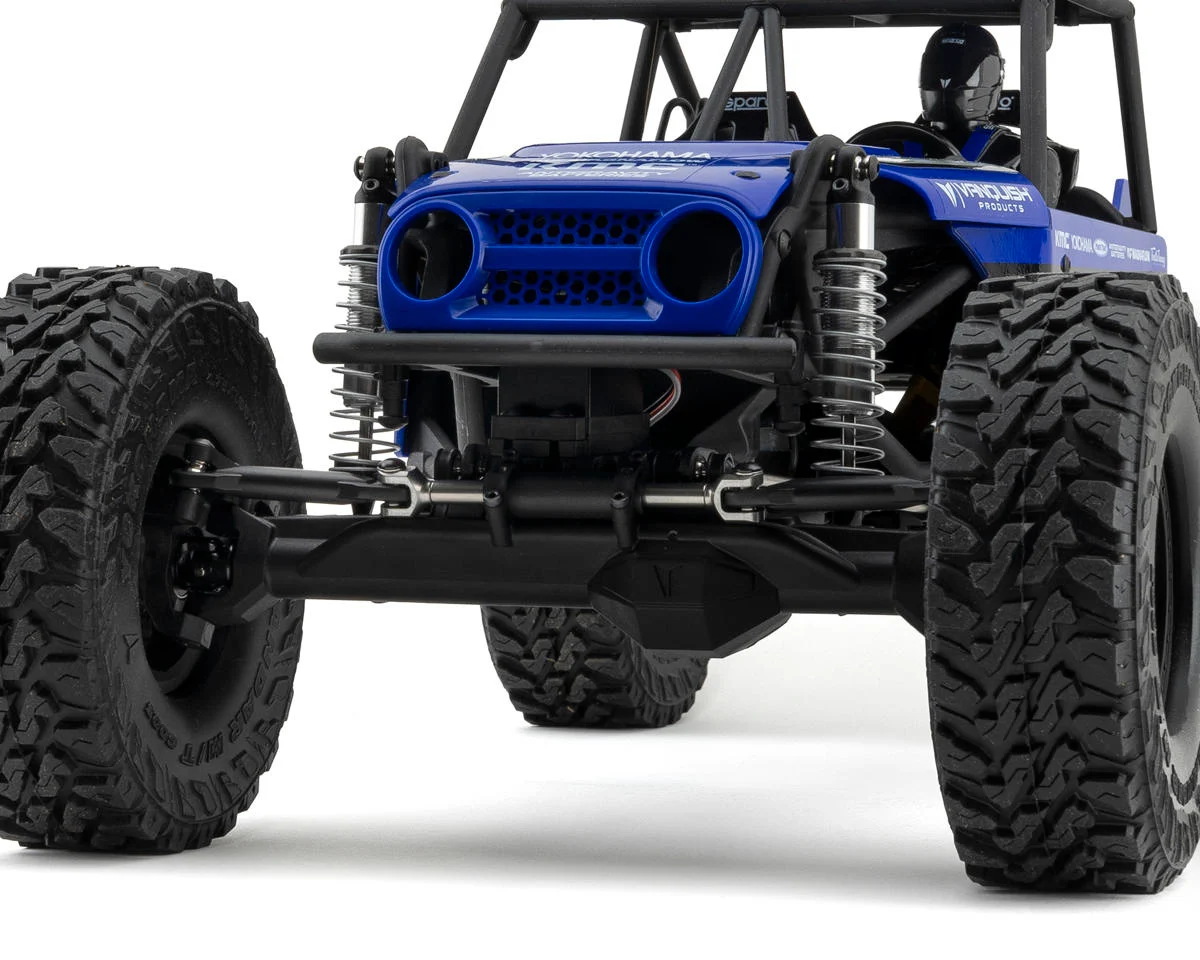

• Exclusive H10 Axles with integrated hydro-style ram steering

• Servo-on-Axle Design hidden behind the axle for clean scale appearance

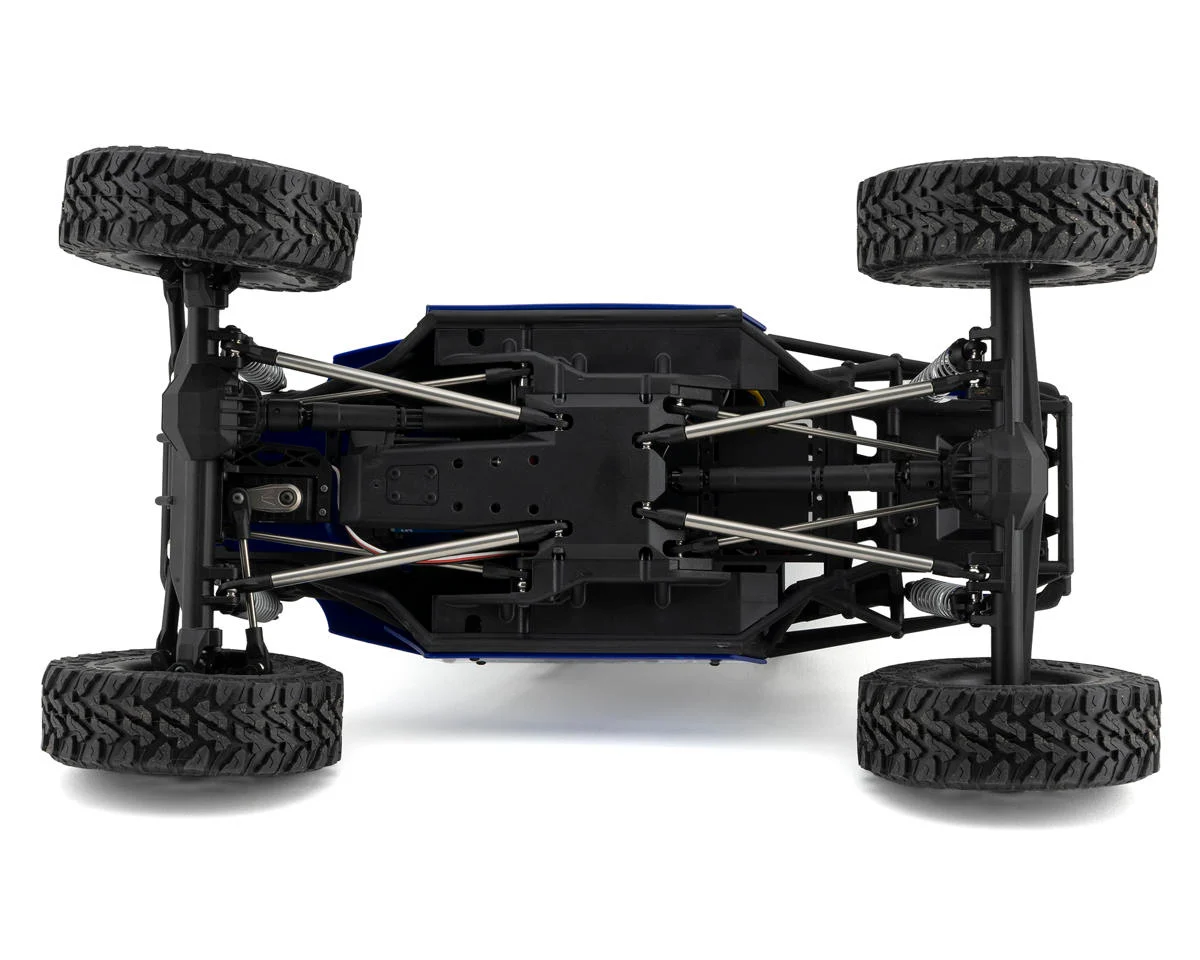

• Front & Rear 4-Link Suspension tuned for flex and responsiveness

• Low-Mounted VFD Transmission with optimized weight balance

• Quick-Access Side Panels with tool-free latch and pin design

• Realistic Driver Figure in Sparco racing gear for maximum interior realism

• Yokohama Geolandar M/T Tires deliver grip and aggressive style

Specification:

1/10th Scale

Geolandar M/T Red Compound 4.75” x 1.9” Tires

Axle Ratio 3.75:1

Pinion 15T 32P

Spur 56T 32P

Overall Width Hex to Hex - 206mm (8.11”)

Wheelbase - 337mm (13.26”)

Overall Height - 198mm (7.80”)

Overall Front Ratio 41.3:1

Overall Rear Ratio 44.0:1

Final Overdrive 6%

RTR Weight (without battery) 5.35lbs (2.43kg)

Battery Compartment Size: 93mm x 36mm x 42mm

Need To Complete:

2-3S LiPo Battery (Compartment Size: 93MM X 36MM X 42MM)

Battery Charger

Battery and Charger must be equipped with XT60 connection
