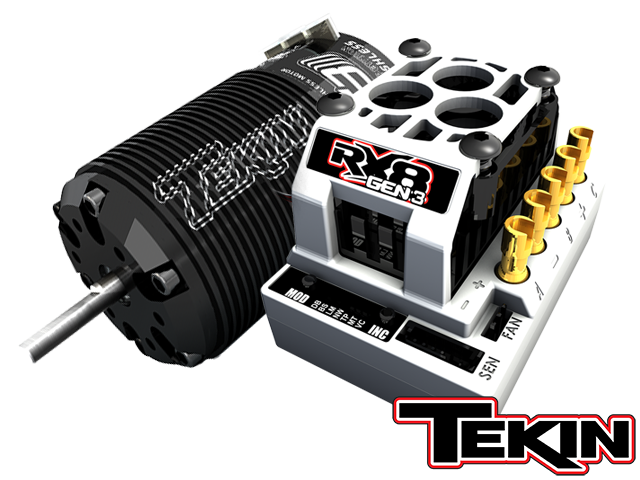

TT2335 RX8 GEN3/Redline T8 GEN3 1/8 Truggy Brushless ESC/Motor Combo (2250kV)

The Tekin TT2335 RX8 GEN3 and T8 GEN3 2250kV system is a high-performance 1/8 scale brushless power system designed specifically for truggy racing. The RX8 GEN3 ESC features Tekin’s D2 Dual Drive Technology, providing seamless sensored and sensorless operation along with a programmable high-voltage BEC, data logging, timing profiles, and adjustable LiPo voltage cutoffs. The matching T8 GEN3 2250kV motor uses a 4-pole, 12-slot design with a stronger 18.5mm rotor for high torque and efficient power delivery. Its rebuildable construction, 6061-T6 aluminum heatsink can, high-current solder tabs, and oversized ABEC-5 bearings make it well suited for demanding track use. The system is rated for 2S-4S LiPo/LiHV power and includes a 30mm cooling fan, HotWire adapter, and 12AWG wire.

Features:

• Complete RX8 GEN3 ESC and T8 GEN3 2250kV motor system for 1/8 truggy applications.
• D2 Dual Drive Technology supports both sensored and sensorless brushless operation.
• Programmable high-voltage BEC, timing profiles, voltage cutoff, and data logging.
• 4-pole, 12-slot T8 GEN3 motor provides strong torque and smooth power delivery.
• 18.5mm neodymium rotor and 6061-T6 aluminum heatsink can provide high-performance durability.
• Rebuildable motor design with high-current solder tabs and oversized ABEC-5 bearings.
• Includes 30mm cooling fan, HotWire adapter, and 12AWG power wire.

Specifications:

• Part Number: TT2335
• System: RX8 GEN3 ESC + T8 GEN3 Motor
• Application: 1/8 Scale Truggy
• Motor: T8 GEN3
• Motor KV: 2250kV
• Motor Design: 4-Pole / 12-Slot
• Motor Input: 2S-4S LiPo/LiHV
• Rotor: 18.5mm
• Motor Weight: 368g / 13oz
• Motor Shaft: 5mm x 19mm
• Motor Diameter: 40mm / 1.57in
• Motor Length: 77mm / 3.03in
• Front Bearing: 5 x 16 x 5mm
• Rear Bearing: 5 x 11 x 5mm
• Motor: Rebuildable
