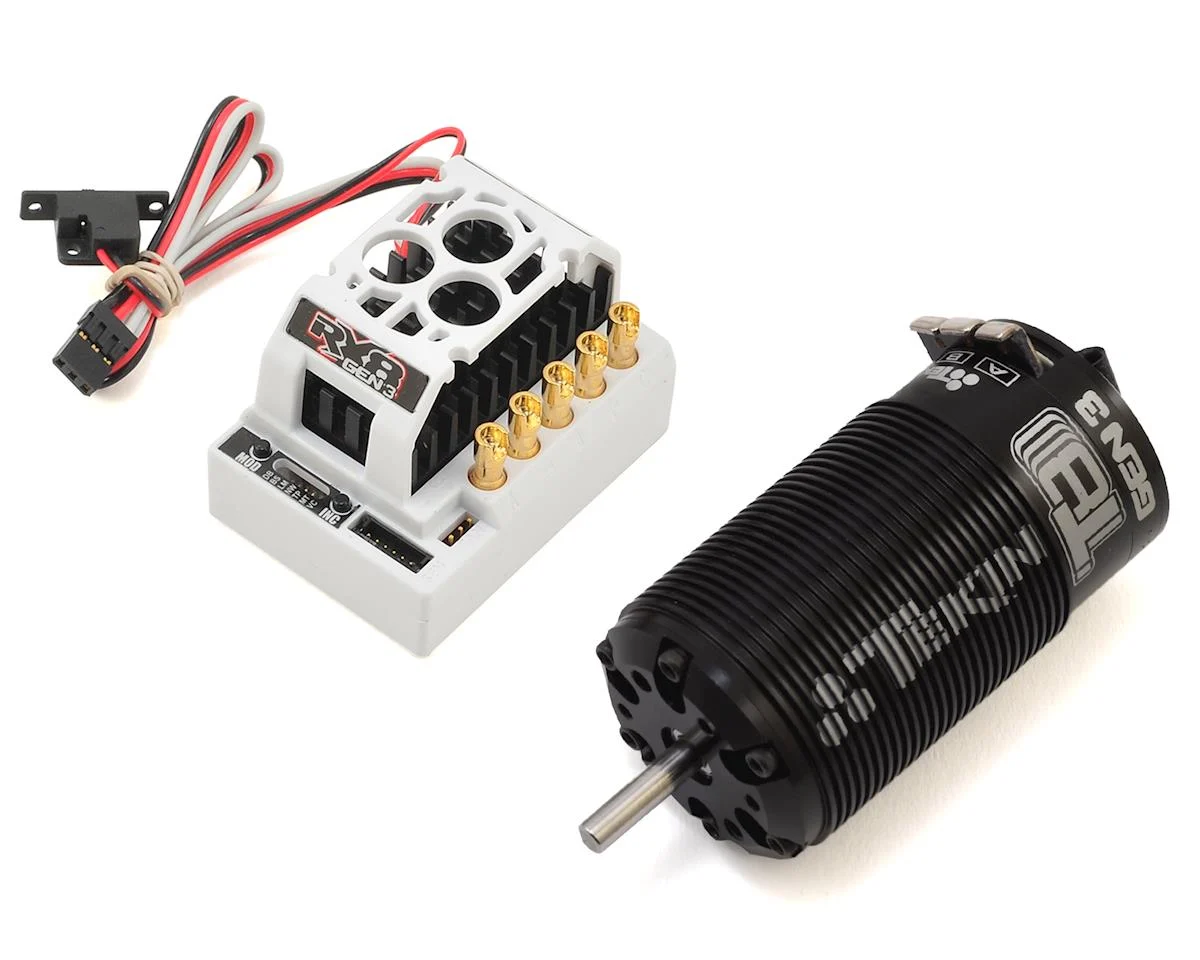

TT2332 RX8 Gen3/T8Gen3 1900KV

The Tekin TT2332 RX8 GEN3 / T8 GEN3 1900KV System is a high-performance 1/8-scale brushless racing system designed for electric buggies. It combines the RX8 GEN3 ESC with Tekin's T8 GEN3 1900KV 4-pole motor, delivering strong torque, efficient power delivery, and precise control throughout the RPM range. Tekin specifically describes the 1900KV setup as a popular choice for 1/8 buggy racing. TTekin Store+1

Key Features

• Part Number: TT2332
• System: RX8 GEN3 ESC + T8 GEN3 Motor
• Application: 1/8 Scale Buggy
• Motor: T8 GEN3 4030
• KV: 1900KV
• Motor Design: 4-Pole / 12-Slot
• Battery: 2–4S LiPo / LiHV
• Input Voltage: 8.4–17.4V
• Motor Weight: 331g / 11.6 oz
• Motor Diameter: 40 mm / 42 mm with fins
• Motor Length: 69 mm / 2.71"
• Shaft: 5 mm × 19 mm
• Maximum RPM: 65,000 RPM
• Maximum Operating Temperature: 180°F / 82°C
• Rotor Size: 18.5 mm
• Front Bearing: 5 × 16 × 5 mm
• Rear Bearing: 5 × 11 × 5 mm
• Rebuildable Motor: Yes
• Sensored & Sensorless Operation
• High-current solder tabs
• 6061-T6 billet aluminum ribbed heatsink can
• 4-pole neodymium sintered magnet
• ABEC5 high-speed oversized bearings
• ROAR approved TTekin Store

RX8 GEN3 ESC Features

• Sensored/Sensorless D2 Dual Drive Technology
• High-voltage 6.0 / 7.4V BEC
• Programmable LiPo voltage cutoff
• Supports 2S–6S voltage cutoff settings
• On-board data logging
• Adjustable timing profiles
• HotWire 3.0 BLE connectivity
• ESC, battery and motor performance monitoring
• 30 mm cooling fan included
• Includes HotWire adapter and 12AWG wire TTekin Store+1
