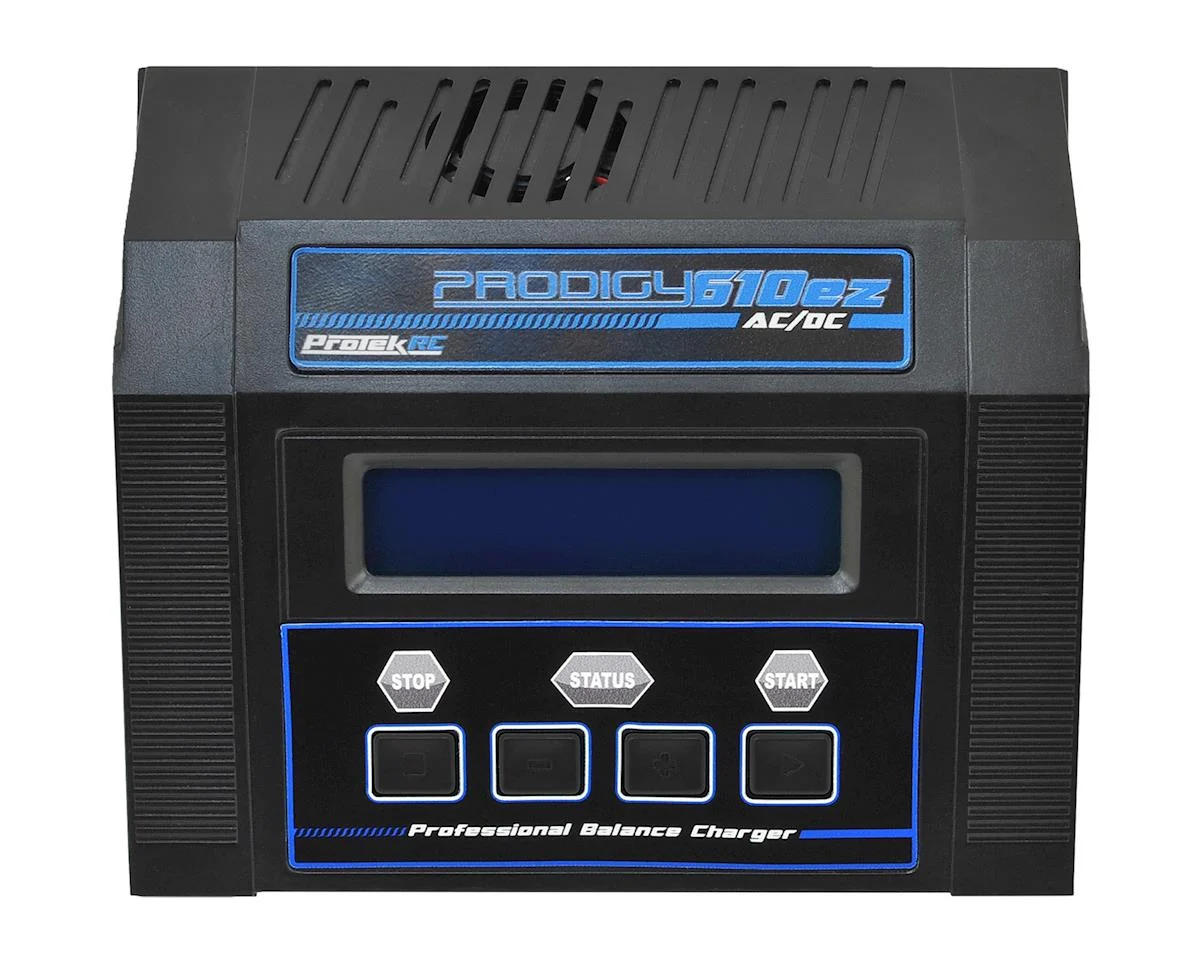

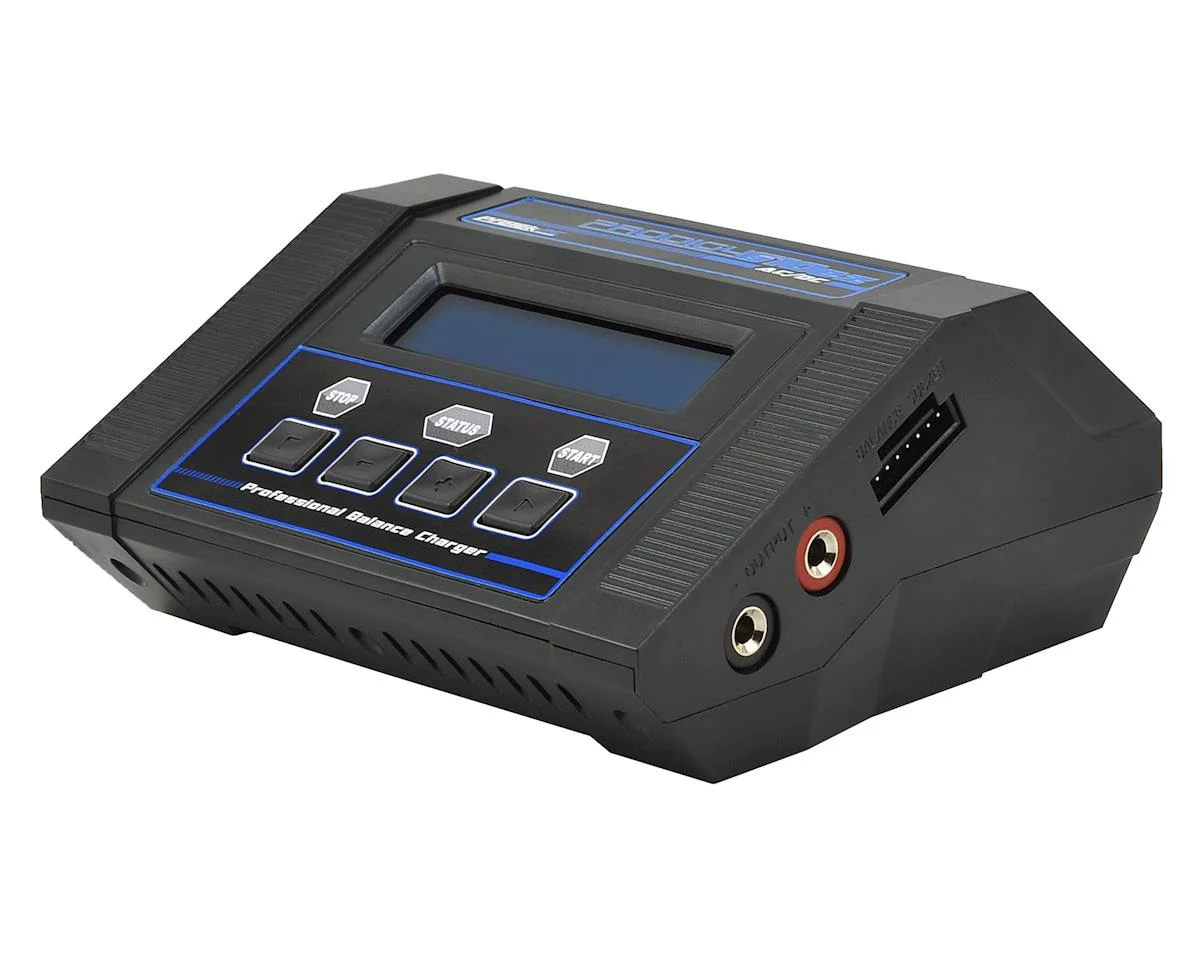

PTK8522 "Prodigy 610ez AC/DC" LiHV/LiPo Balance Battery Charger (2-6S/10A/100W)

This product is a compact AC/DC balance battery charger designed for charging and maintaining RC vehicle battery packs. It supports multiple battery chemistries including LiPo, LiHV, LiFe, NiMH, NiCd, and lead-acid packs, making it suitable for a wide range of RC applications. The charger delivers up to 10 amps of charge current and 100 watts of power while supporting lithium batteries up to 6 cells. A built-in power supply allows operation from standard AC outlets or 11–18V DC sources for charging at home or at the track. The integrated balancing system helps maintain equal cell voltage for improved battery safety and longevity.

Features:

• Dual Channel Digital AC/DC Balance Charger
• Maximum 6A Charge Current, up to 5W
• Hi-Voltage LiHV charging mode allows charging end voltage up to 4.40V
• Supports up to 6S Lithium & 15 Cell Nickel Battery Packs
• Lithium, Nickel & Lead Acid Compatible
• Multiple Safety Functions
• Multiple Charge Modes

Specifications:
AC Input Voltage: 100V-240V
DC Input Voltage: 11V-18V
Chemistry: LiPo, Li-Ion, LiFe, LiHV, NiMH, NiCd, Pb
Cell Count: LiPo/Li-Ion/LiFe/LiHV: 1-6S; NiMH/NiCd: 1-15 cells; Pb: 2-24V
Voltage Cutoff (per cell): LiPo: 4.18-4.22V; Li-Ion: 4.18-4.20V; LiFe: 3.68-3.8V; LiHV: 4.30-4.40V
Display: LCD; blue back light (non-touch)
Dimensions: 177x150x55mm
Charge Current: 6.0A x2
Charge Power: 50W max. x2
Balance Current: 400mA/cell
Cooling System: Fan
Weight: 930g
Safety Timer: 1-720min or off
Discharge Current: 2.0A x2
Discharge Power: 5W x2 max.
Memory: 10 different profiles

Includes:

• (1) Prodigy 66 DUO AC Charger
• (1) DC Power Input Cable w/XT60 Connector
• (2) XH Type LiPo Balance Board
• (1) AC Power Input Cable
• (2) Bullet to T-Plug Charge Lead
• (1) Alligator Clip Charge Lead
• (2) Alligator Clips
