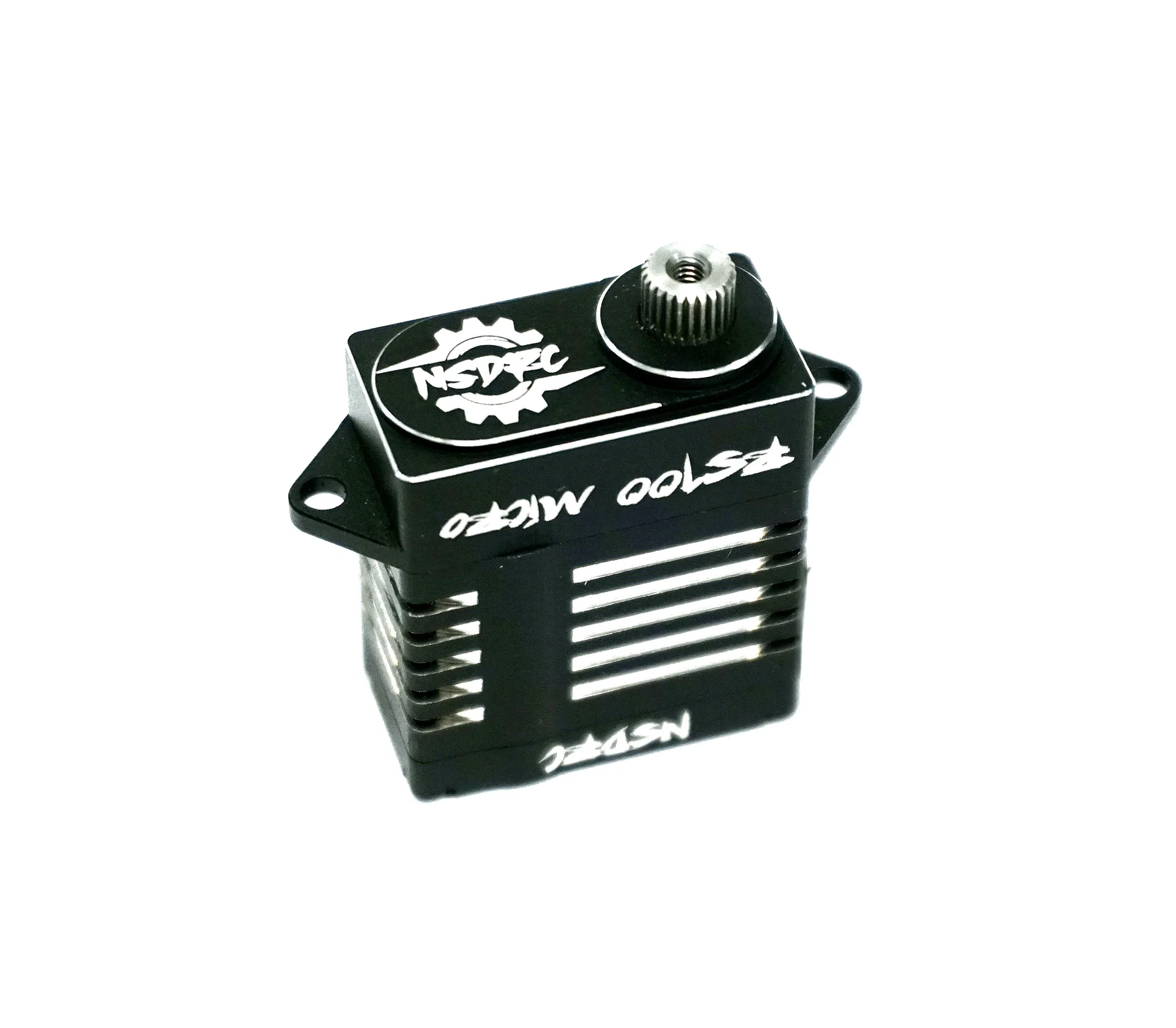

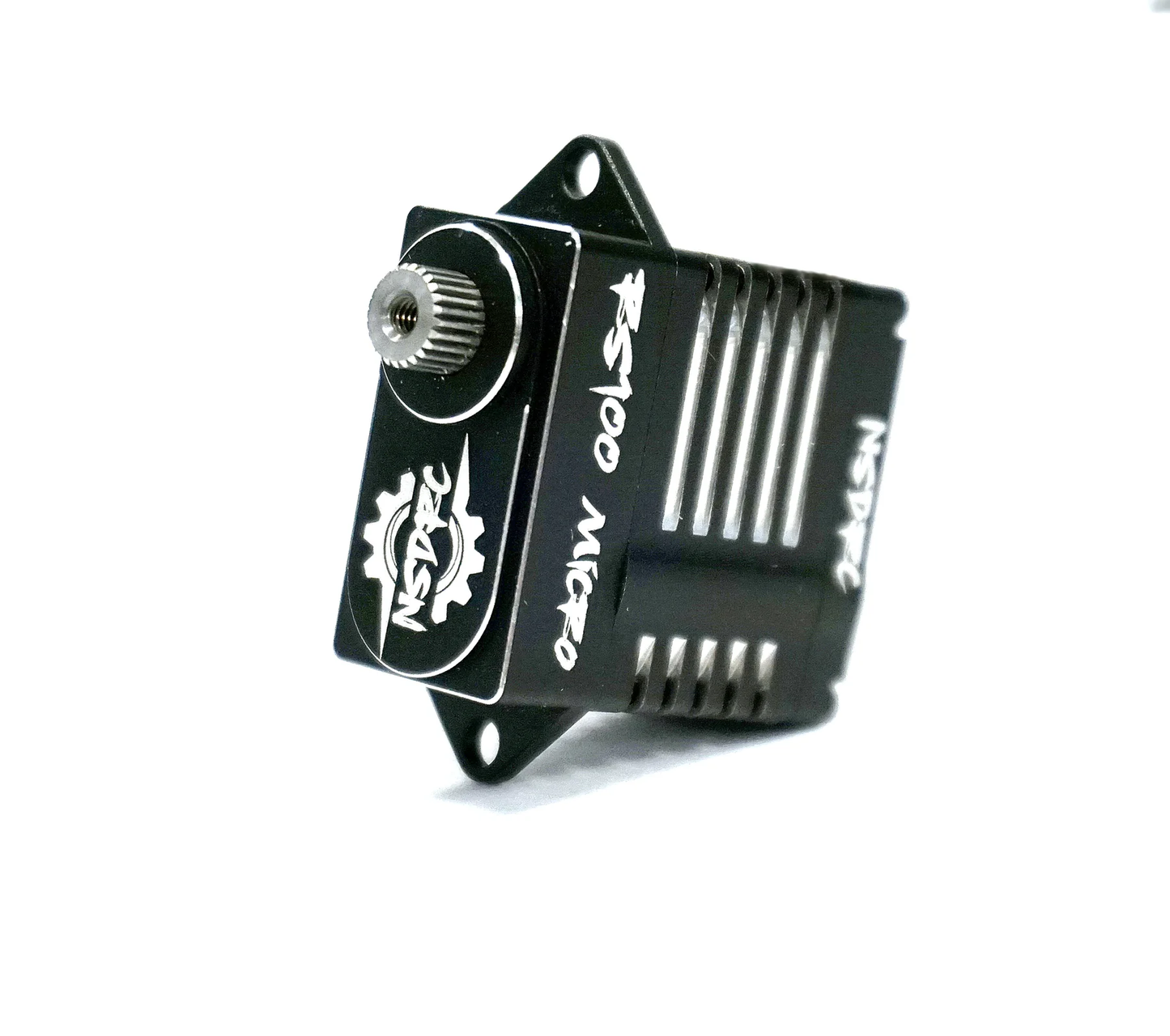

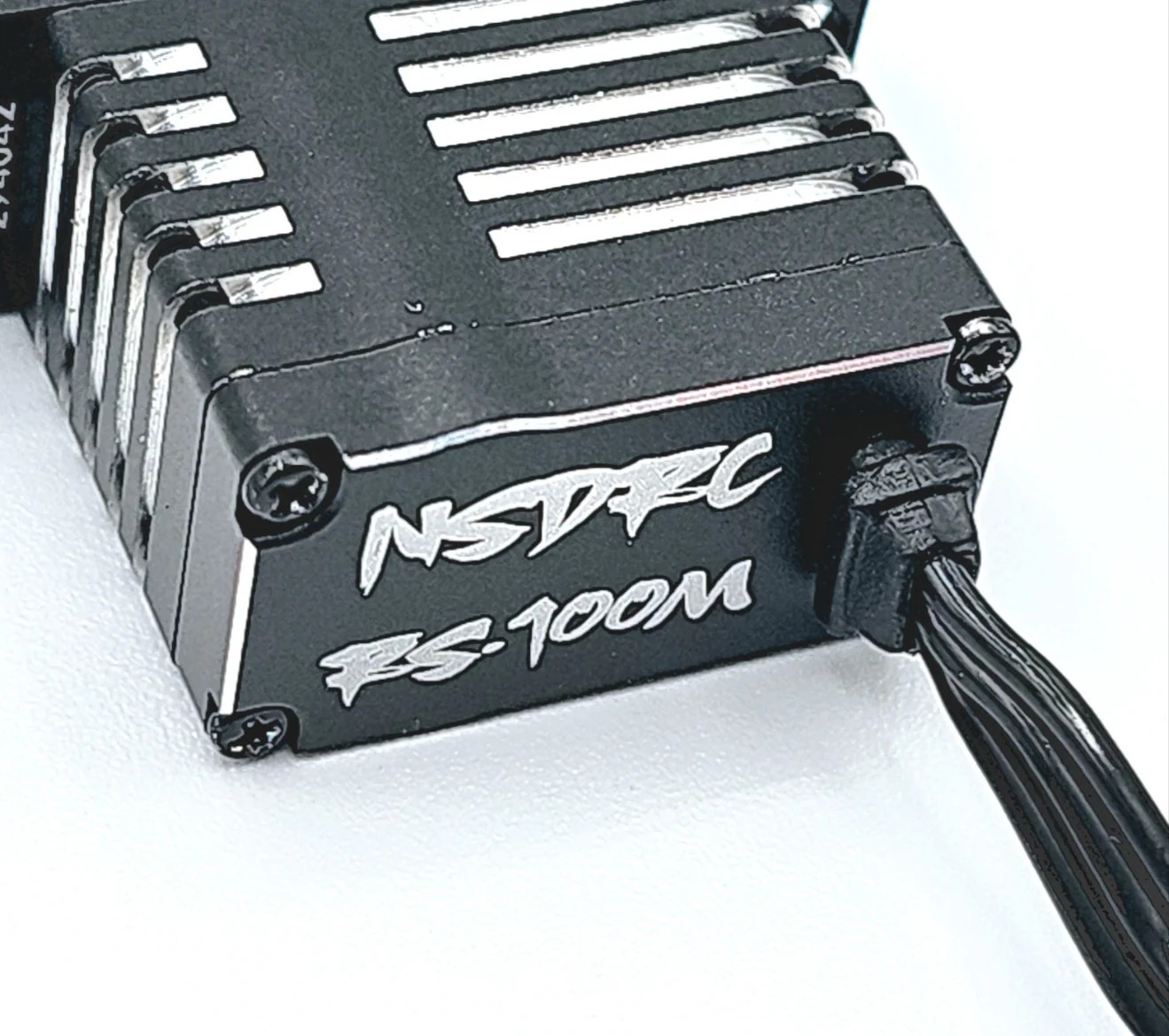

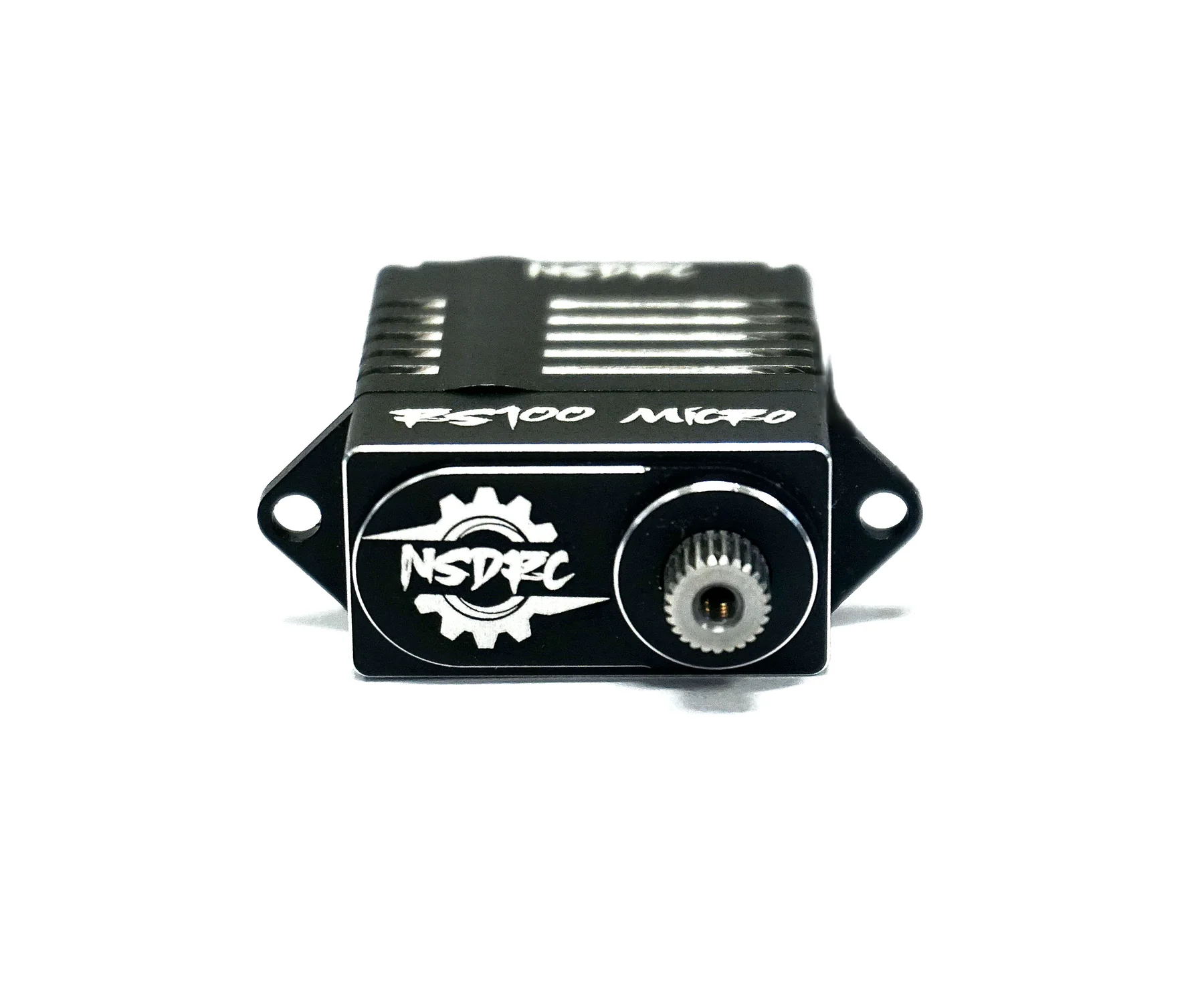

NSD-MSRVO RS100 High Torque Micro Servo ( Bottom Wire Exit )

RS100 High Torque / Speed Micro Servo

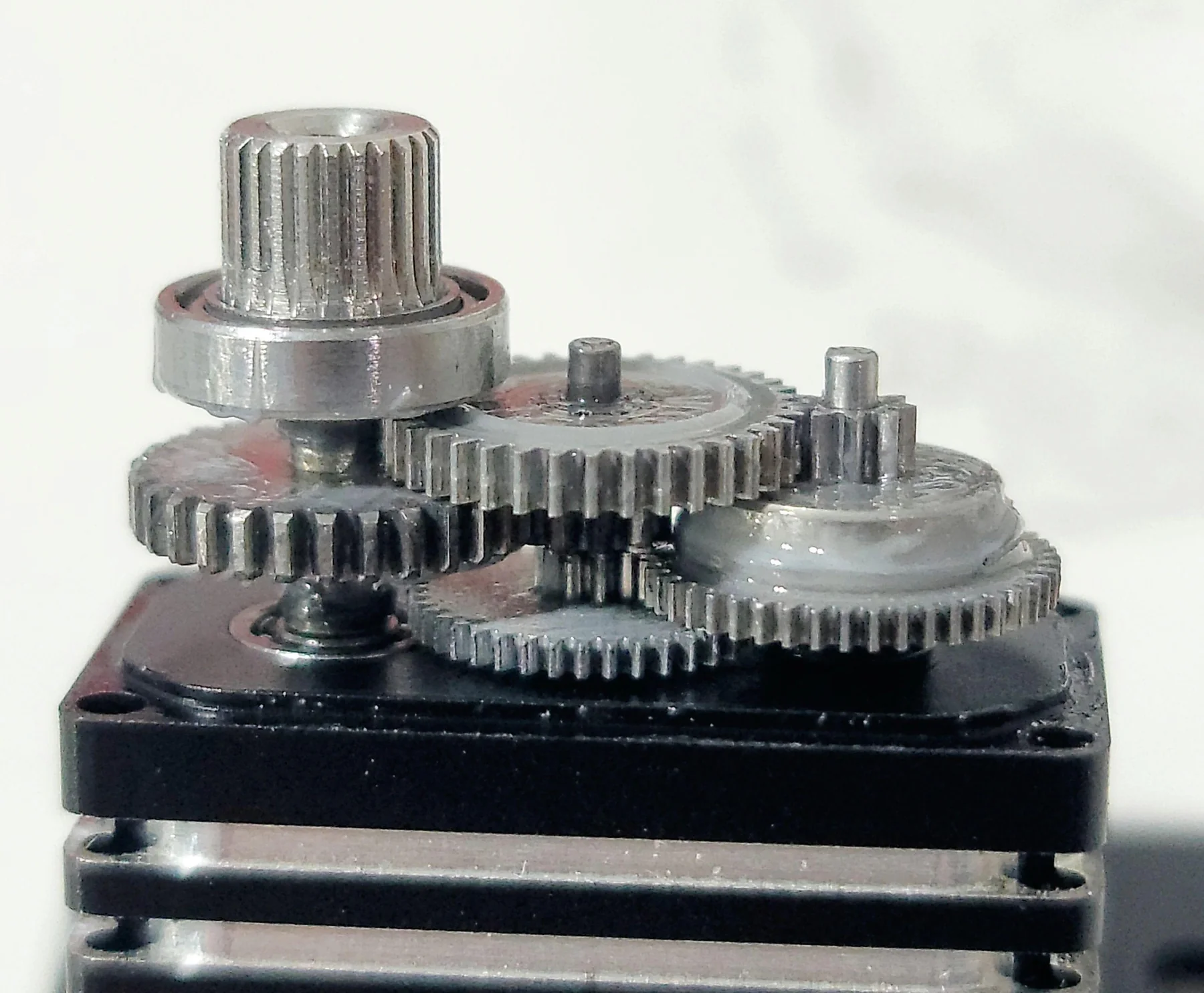

The RS100 combines a powerful oversized motor with heavy-duty stainless steel gears for reliable power and durability. It features a CNC-machined aluminum case with curved mounting tabs, a water-resistant 7-point O-ring seal, conformal-coated electronics, and a precision angle sensor.

• Operating Voltage: 5.0V to 8.4V
• Signal Type: Digital
• Operating Temperature: -10°C to 50°C
• Spline: Φ4.9, 25T
• Overall Dimensions: 23.0 × 12.0 × 26.5 mm
• Bearing: Dual Ball Bearing
• Connector Wire Gauge: #26 AWG
• Connector Wire Length: 185 ± 5 mm
• Gear: Steel Gear
• Motor: Coreless
• Case: CNC Aluminum
• Weight: 20 ± 1 g
• Angle Sensor: Potentiometer
• Waterproof: Water Resistant
• Operating Travel: 130°
• Neutral Position: 1500 μsec
• Dead Band Width: 2 μsec

Additional Information

• Servo Type: High Torque Micro Servo

• Motor Type: Coreless

• Gear Material: Steel

• Housing Material: CNC Aluminum

• Sensor Type: Potentiometer

• Bearing Type: Dual Ball Bearing

• Signal: Digital

• Water Resistance: Yes

• Operating Voltage Range: 5.0V to 8.4V

• Manufacturer: No Superior Designs RC
