Jevries V2 - Ultra Fast Superpumps

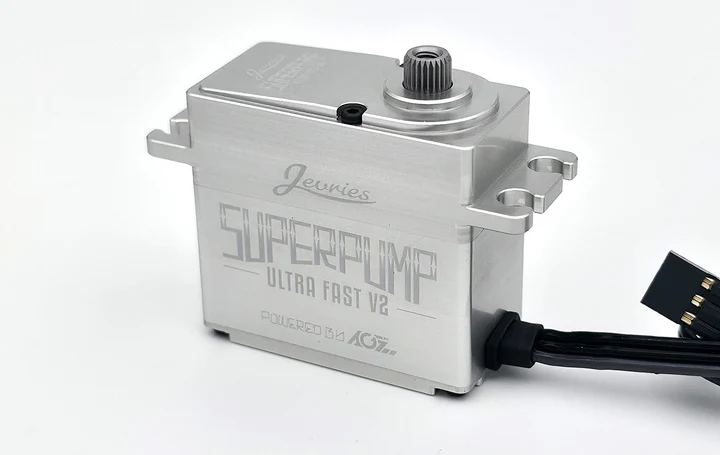

ULTRA FAST V2-Series Superpump Servo

The best hopper servo in the game just got better! Featuring a newly developed ultra-fast brushless motor, this servo makes your RC lowrider hit harder and faster than ever before. Engineered for extreme performance, it delivers unparalleled speed, torque, and durability for serious RC enthusiasts.

Key Features:

• Ultra Fast & High Torque: 43 kg-cm / 0.055 sec at 8.4V

• Wide Voltage Range: Operates at 7.4V–8.4V (9V capable) without overheating

• Brushless Motor: Newly developed for maximum efficiency, ultra torque, and exceptional durability

• Super Steel Pro Gears for reliable strength under extreme loads

• 3 HQ Ball Bearings for smooth and precise movement

• High Durability: Built to last under aggressive hopping and heavy loads

Specifications:

• Voltage: 7.4V–8.4V (max 9V with Jevries 20A BEC)

• Operating Speed: 0.065 sec/60° @ 7.4V | 0.055 sec/60° @ 8.4V

• Static Holding Torque: 40 kg-cm (556 oz-in) @ 7.4V | 43 kg-cm (598 oz-in) @ 8.4V

• Pulse/Frequency: 1520 μs / 333 Hz

• Operating Temperature: -15°C to +70°C

• Size: 40 × 20 × 37.2 mm (1.57 × 0.78 × 1.46 in)

• Motor Type: Super Brushless

• Spline: 25T / Dead Band Width 2 μs

Important Notes:

• Designed for experienced users only.

• Always adjust endpoints before mounting the servo horns to avoid binding or humming.

• For best performance, use the Jevries 20A BEC set to max 9V and a 3S LiPo battery.

• Warranty does not cover burned or locked servos caused by improper handling, incorrect endpoint settings, overvoltage, or mechanical binding.

Tips for Optimal Performance:

1. Set endpoints at 50%-50% without the servo horn attached, then mount and fine-tune to avoid binding.

2. Use the third hole (20mm) on the Jevries servo horn for the best balance of speed and torque.

3. For single servo setups, mount the servo with the horn facing forward and use the third hole.

4. For double servo setups, use the RC Hop Shop aluminum double servo mount, mounting the servos upside down as shown.

5. For maximum hopping performance, consider a shaved driveshaft or neutral mod.

6. Use medium/stiff shocks to prevent the car from bottoming out.
