HWA38030210 Hobbywing QuicRun 10BL120 G2 Sensorless Brushless ESC/3660SL Motor Combo (3150kV)

Hobbywing Quicrun 10BL 120A ESC & Motor Combo

The Quicrun 10BL120 G2 Sensorless Brushless ESC and Motor Combo have been designed to deliver extreme power and reliability with a more efficient dust-proof motor and IP-67 waterproof rated ESC. The 10BL's built in capacitor improves on the brownout protection, efficiency, and thermal protection. This combo will be a great option for a wide range of RC models.

G2 QuicRun 10BL120 Features:

• Intelligent freewheeling technology
• Extreme performance
• Powerful built-in BEC
• Efficient cooling system
• Capacitor Thermal Protection
• Built-in capacitor
• IP-67 waterproof Rating

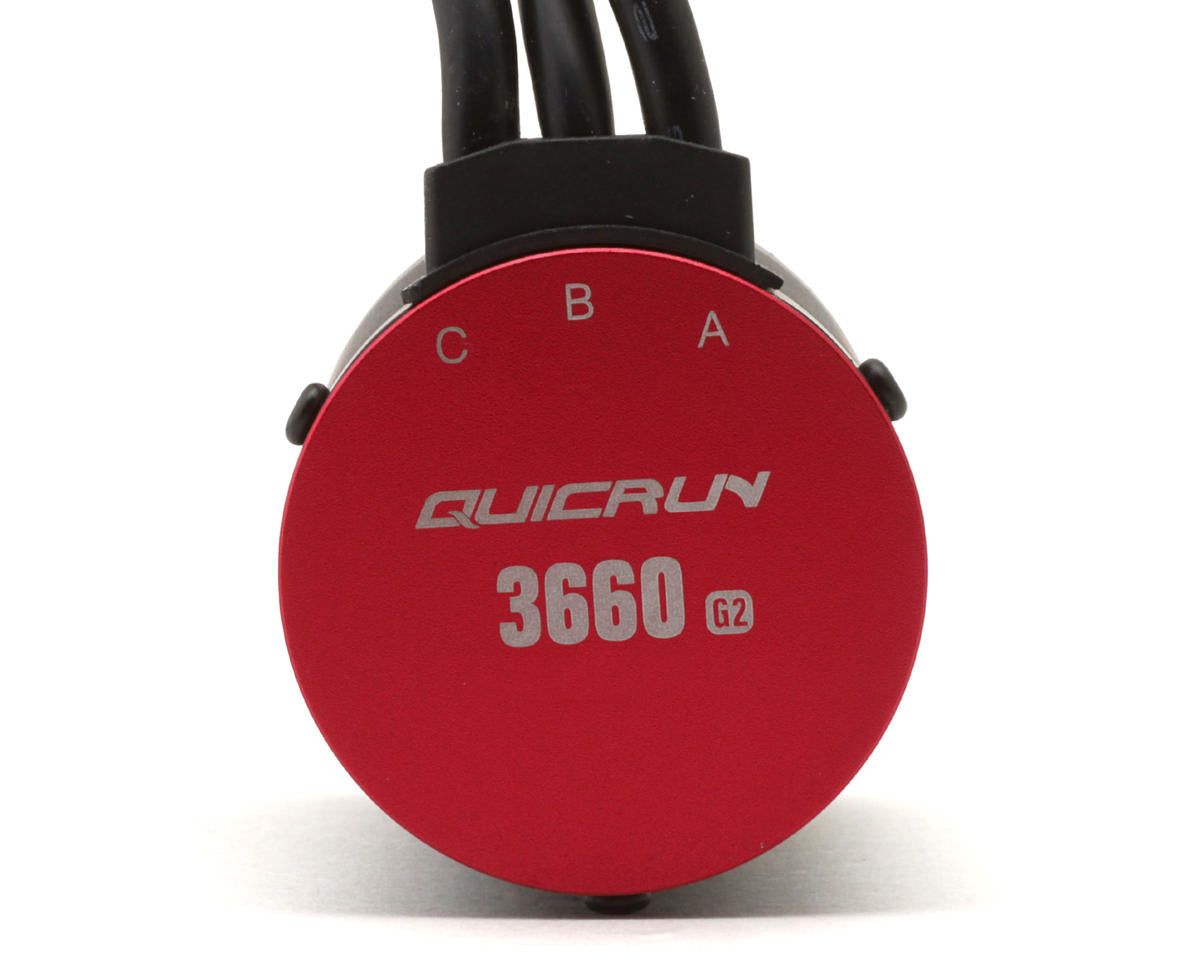

G2 QuicRun 3660SL Features:

• High efficiency for more power with lower temperatures!
• 4-pole rotor design for more torque with strong explosive force.
• Compared with the previous generation of motors, the output power and efficiency are increased by more than 10%, and the motor temperature is effectively reduced under the same load.
• 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.

Specifications:

• ESC:
• Scale: 1/10th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Waterproof: IP-67
• Current:
• Continuous: 120A
• Peak: 760A
• Input Voltage: 2-4S LiPo
• BEC Output: 6V/7.4V @ 5A
• Output Connectors: 4.0mm Bullets
• Dimensions: 2.07x1.56x1.50" (52.8x39.8x38.2mm)
• Weight: 4.19oz (119g)
• Motor:
• Input Voltage: 2S-3S LiPo
• KV: 3150kV
• Pole: 4
• Motor Diameter: 1.42" (36mm)
• Motor Length: 2.36" (60mm)
• Shaft Diameter: 0.20" (5mm)
• Shaft Length: 0.73" (18.5mm)
• Front Bearing size: D16*D5*T5
• Rear Bearing size: D13*D5*T4
• Weight: 278g

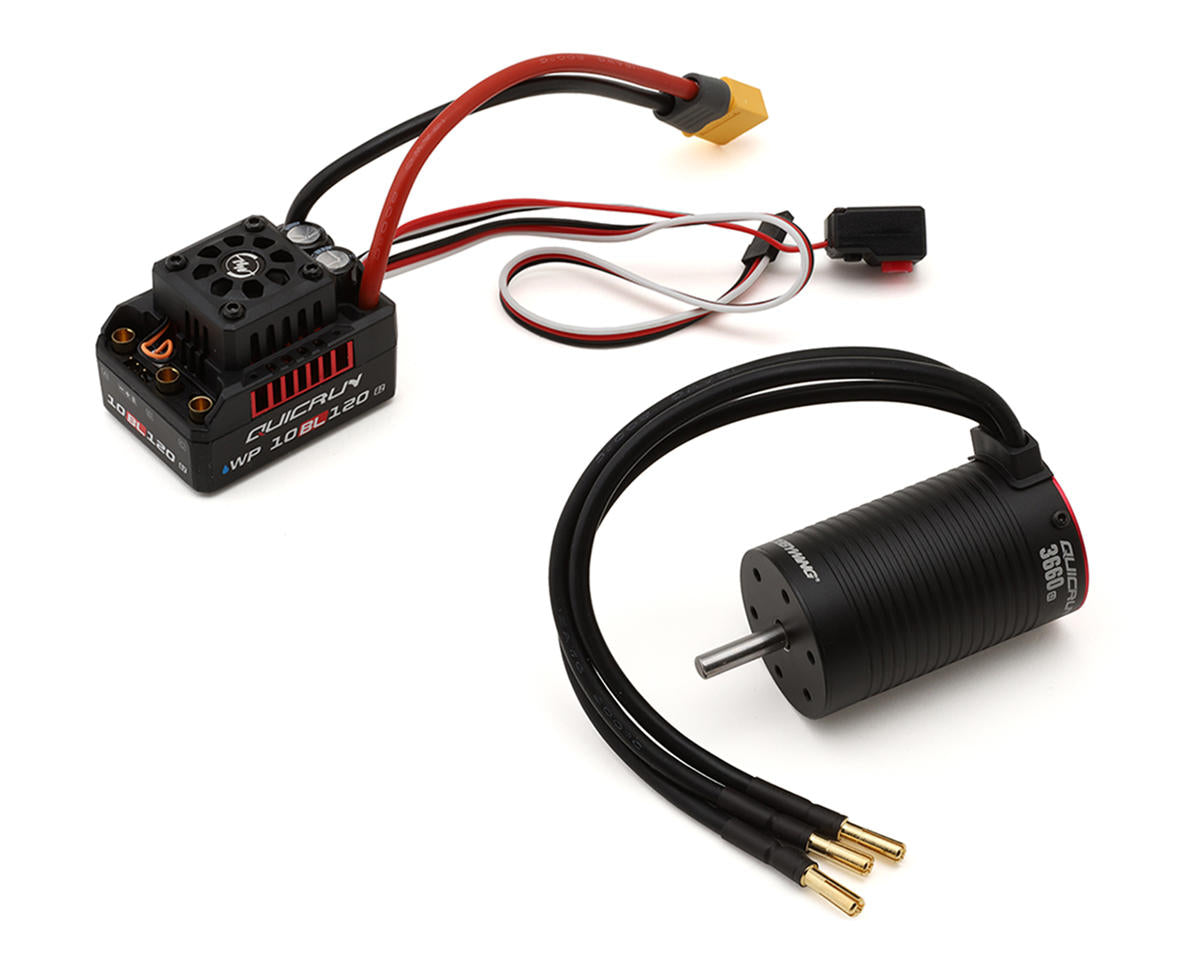

What is included in this combo?

• (1) QUICRUN WP 10BL120 SL G2 ESC (Waterproof, Sensorless)
• (1) QUICRUN 3652SL or 3660SL G2 brushless motor w/ your choice of KV
• HOBBYWING decals
• Accessories

Warning: Please carefully check power devices and manual of car frame to ensure the power pairing is reasonable. Avoid wrong pairing to overload and damage the motor. Always wire up all the parts of the equipment carefully. If any of the connections come loose as a result of vibration, your model RC may lose control. • Never apply full throttle if the pinion is not installed. Due to the extremely high RPMs without load, the motor may get damaged. Never allow the motor case to get 100 degrees Celsius (212 degrees Fahrenheit) because the magnets maybe demagnetized by high temperature.
