GYC441 Futaba Gyro

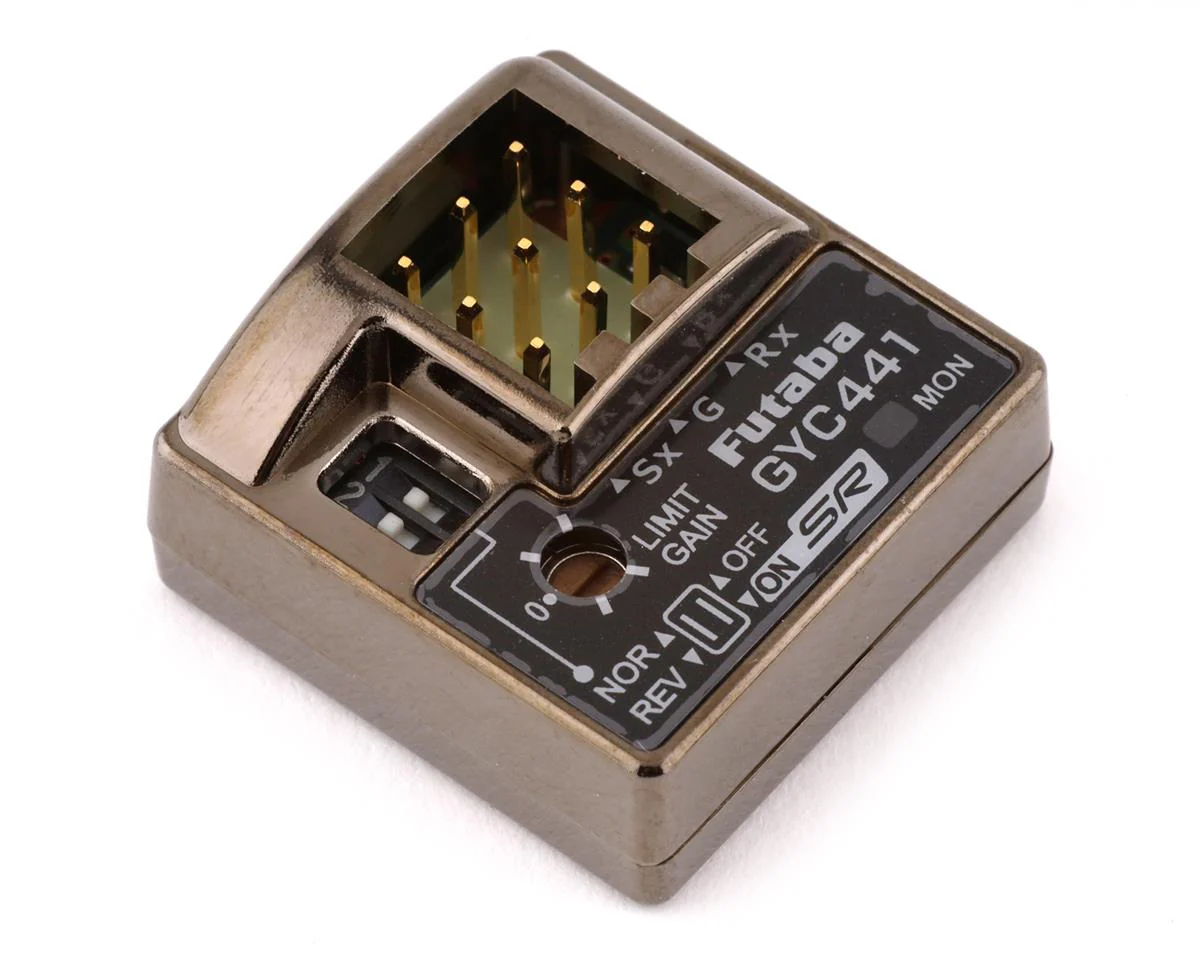

Futaba GYC441 All‑Purpose Car Gyro

Description
The Futaba GYC441 is a dedicated steering gyro designed for RC surface cars. It uses an integrated MEMS rate gyro sensor to help stabilize steering and improve vehicle straightness and cornering performance. It’s compact and lightweight, supports remote gain adjustment from the transmitter (if the transmitter has 3+ adjustable channels), and can connect over S.BUS or S.BUS2 with minimal wiring. The gyro also has manual gain trimmer and mode switching controls on the unit itself, and is intended for use with Futaba digital servos in surface applications.

Features

• Dedicated RC surface car steering gyro designed to improve stability and handling

• Integrated MEMS rate gyro sensor for responsive corrections

• Remote gain adjustment support from compatible transmitters (3 or more adjustable channels)

• Supports mode switching function (e.g., AVCS/NORMAL)

• Compact and lightweight design (approx. 20.5 × 20.5 × 11 mm, ~3.7 g)

• Easy setup with simple wiring via S.BUS/S.BUS2 connectivity

• Manual gain trimmer and gyro direction switch on the unit

• LED monitor for operational status and diagnostics

• Designed for use with Futaba digital servos (analog servos not supported)

• Operating voltage range DC 4.2 V – 8.4 V
