CSE011-0133-00 14XX SERIES SENSORED MOTOR ENDBELL REPLACEMENT KIT

Designed for 14XX series sensored motors, this replacement kit includes the components needed to restore proper motor function.

Package contents:

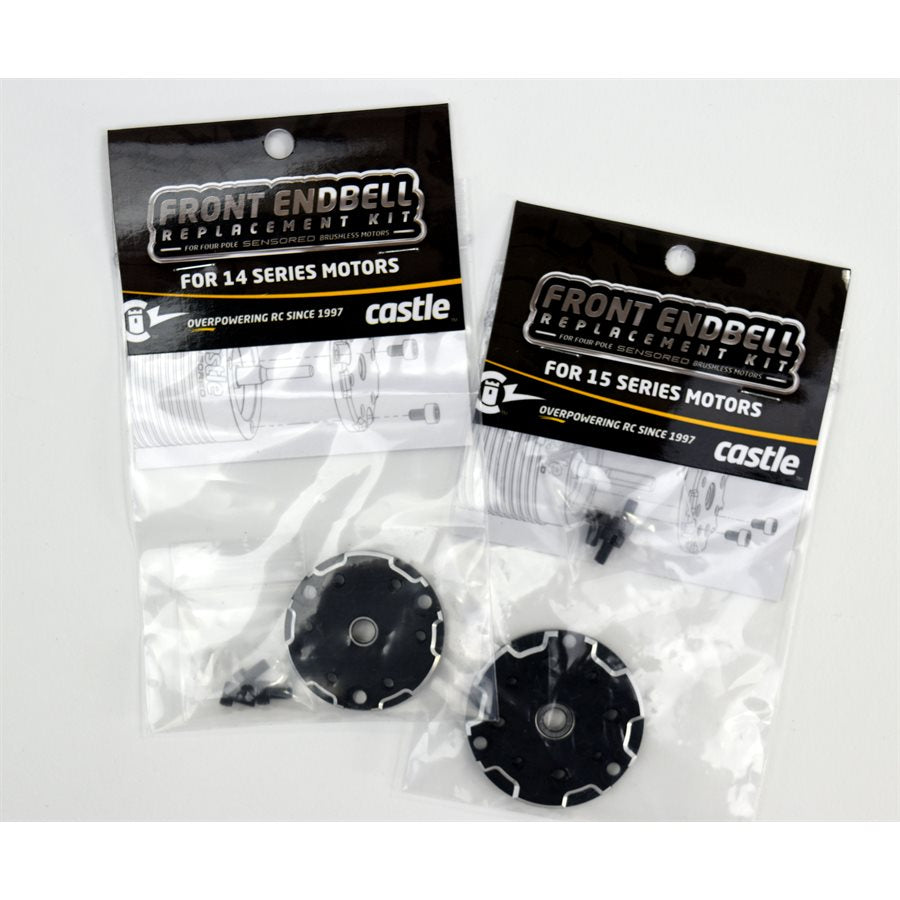

• Front endbell with pre-installed ball bearing
• M3 x 5 mm endbell screws (quantity: 3)

Installation instructions:

Remove the existing front endbell screws using a 2.5 mm hex driver. Carefully pull the damaged endbell away while keeping the shaft and endbell aligned; a slight twisting motion can help loosen it.

Install the new endbell, noting that the rotor will be pulled toward the stator by magnetic force. You’ll need to guide it back into the centered position during installation.

Apply a small amount of removable threadlocker to the new screws, then tighten them evenly until snug.
