CSE010-0176-00 Sidewinder Nano Micro ESC

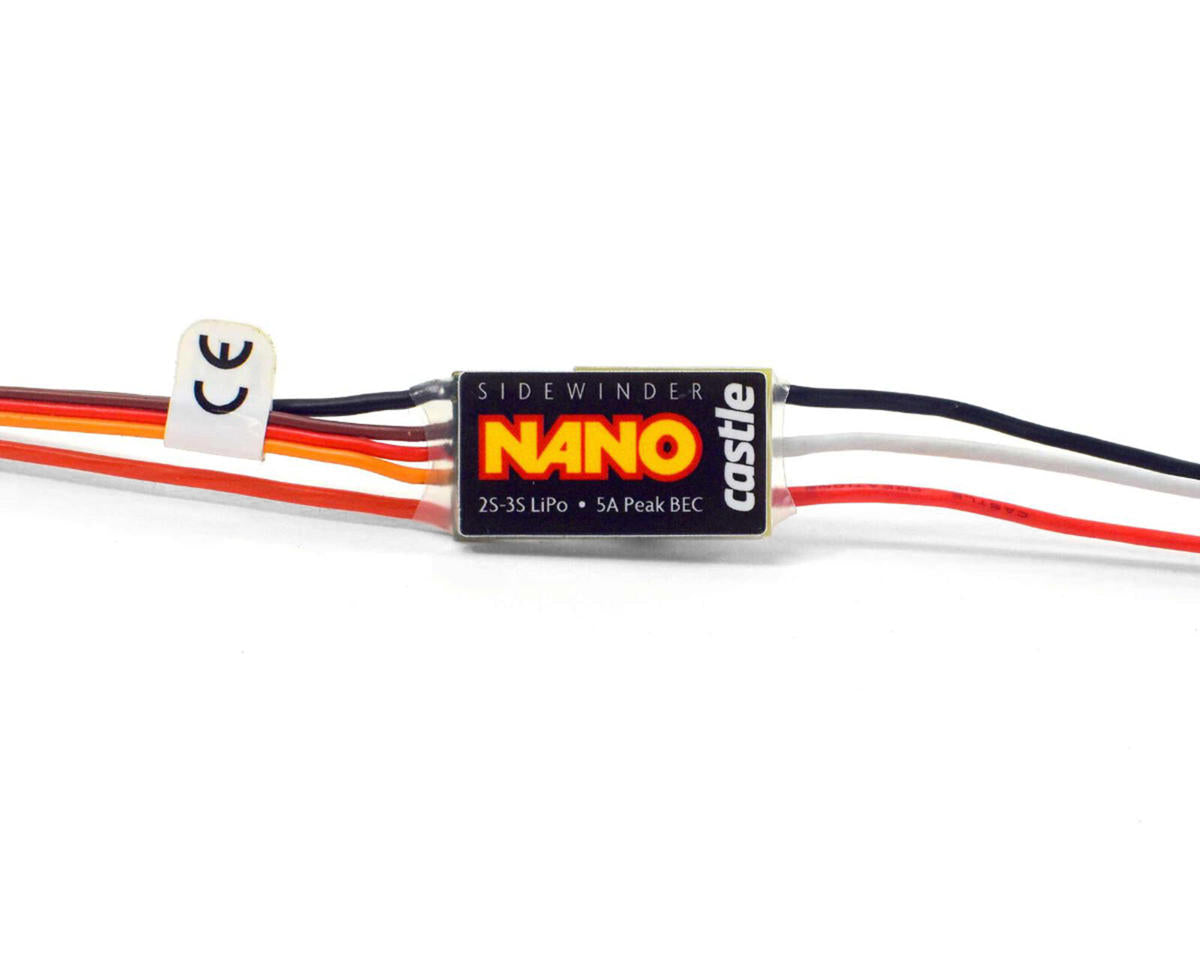

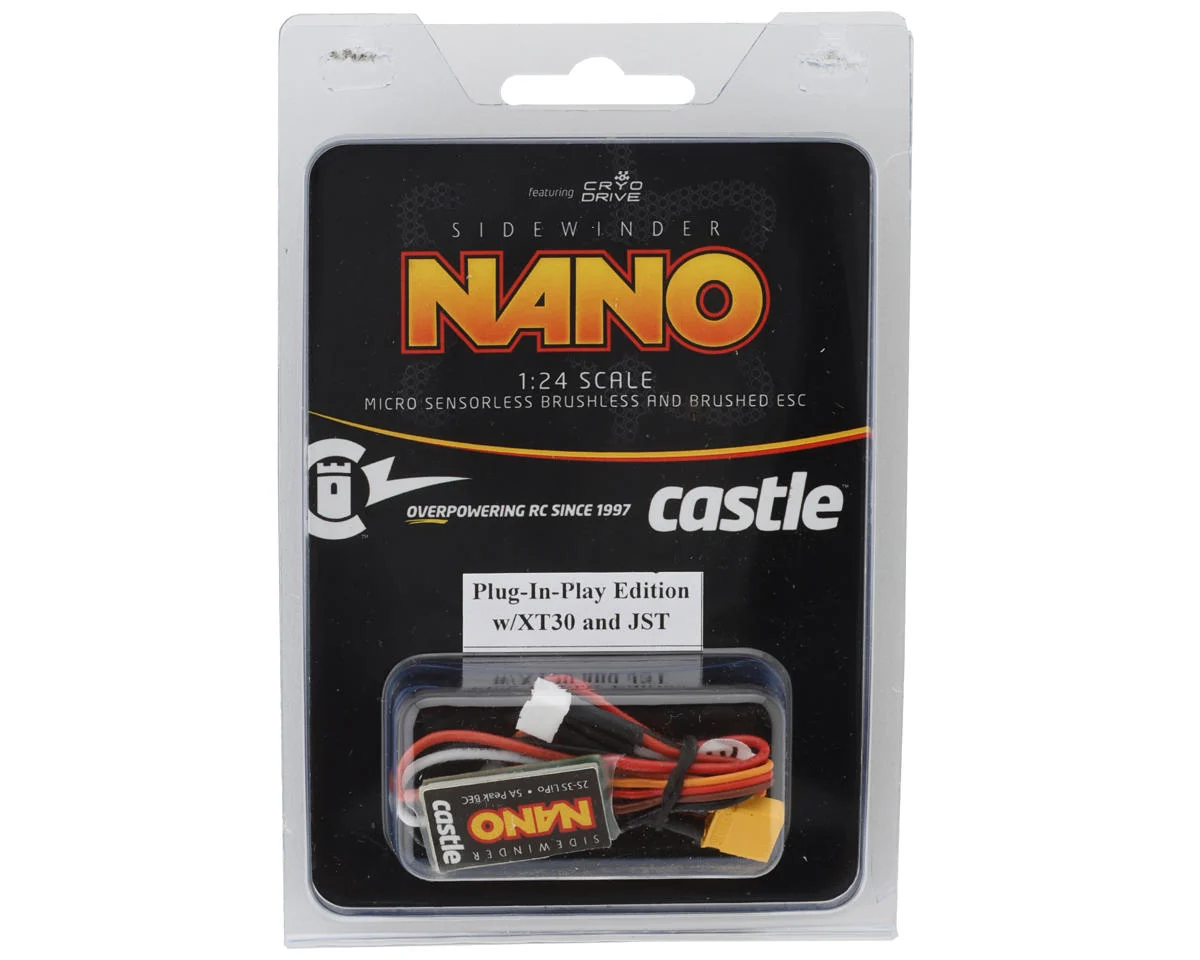

Sidewinder Nano ESC

The Sidewinder Nano brings high-performance power to the rapidly growing micro-scale RC segment. Compact in size but powerful in capability, it features Castle’s CRYO-DRIVE technology, which improves thermal performance during partial throttle operation where most driving occurs.

The ESC comes ready to run out of the box and can also be tuned to suit your driving preferences. Programming is available through a Windows PC using a Castle Link USB adapter (sold separately), or wirelessly with a Castle B-Link Bluetooth adapter and the Castle Link mobile app (both sold separately).

For recommended motor, battery, and gearing setups, refer to the Castle Surface Product Finder.

Product features

• Input voltage range: 2S–3S LiPo (12.6V max)
• Supports sensorless brushless and brushed motor operation
• Internal BEC: 5V fixed, 5A peak
• CRYO-DRIVE technology for improved efficiency and reduced heat
• Castle Link tuning via Windows PC (adapter sold separately)
• Transmitter programming for common adjustable settings such as cutoff voltage and drag brake
• Optional smartphone programming with B-Link Bluetooth adapter and Castle Link app (iOS and Android)
• Audible alerts for diagnosing issues such as low-voltage cutoff
• Designed and supported in Kansas, USA
• Backed by a 1-year warranty

Product applications

• Ideal for 1/24 scale 2WD and 4WD vehicles up to 1 lb (e.g., Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24)
• Suitable for 1/18 scale crawlers up to 2.25 lbs (not intended for rock racing or hill climbing; e.g., Axial UTB18, Traxxas TRX-4M, FMS FCX18)
