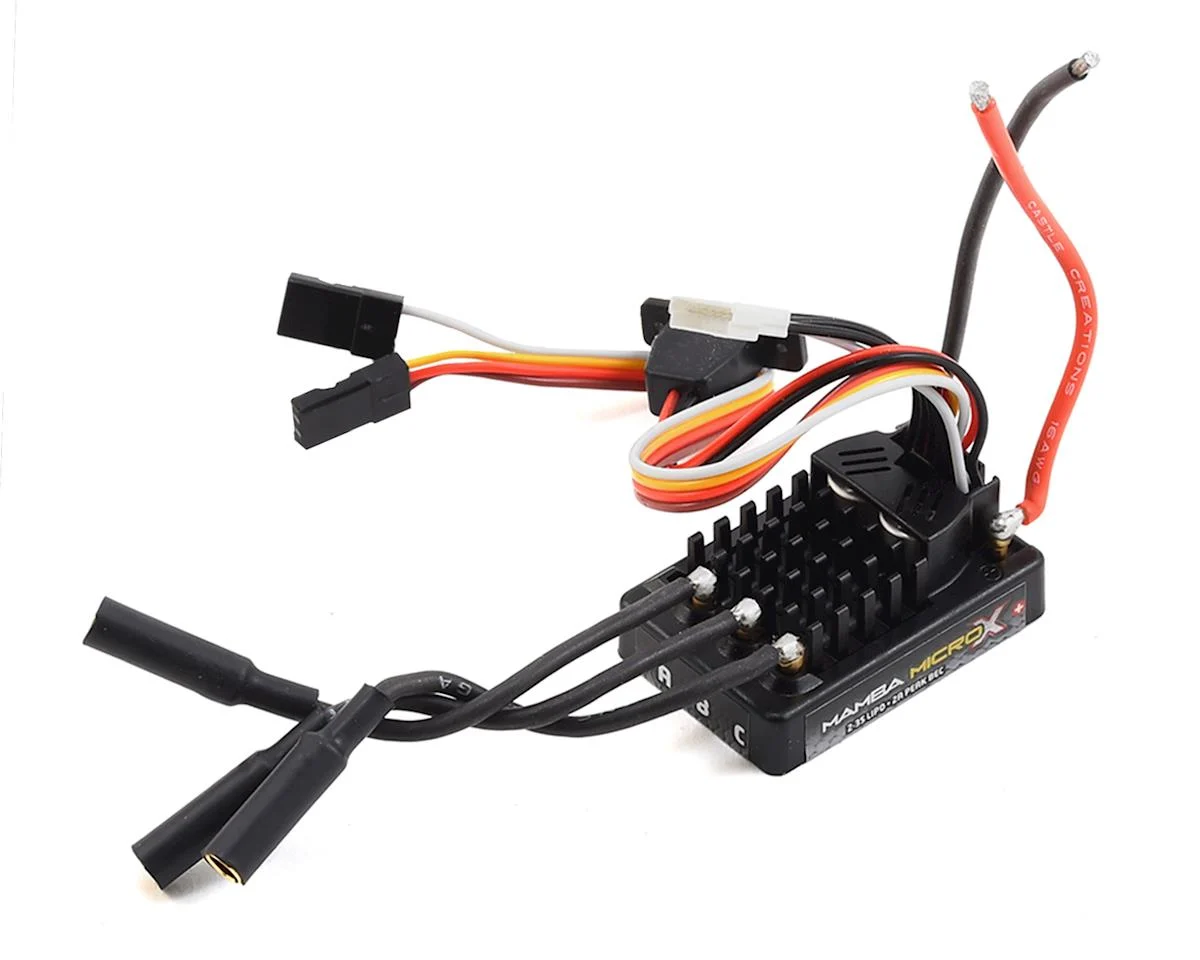

CSE010-0162-00 Mamba Micro X ESC (Crawler)

Here’s a clean, simple description of the CSE010-0162-00 Mamba Micro X ESC (crawler edition):

This is a compact electronic speed controller made for RC rock crawlers and trail trucks. It is designed to give very smooth and precise throttle control at low speeds, which is important when climbing rocks or driving through technical terrain.

It works with sensored brushless motors, allowing better startup and fine control compared to sensorless systems. It supports 2S to 3S LiPo batteries (up to 12.6 volts), making it suitable for most small to mid-size crawler setups.

The ESC is water-resistant, so it can handle mud, splashes, and wet conditions, though it should not be fully submerged for long periods.

You can program and tune it using Castle Link software. This lets you adjust settings like throttle response, drag brake strength, reverse behavior, and battery cutoff. It also includes an auxiliary wire so you can adjust certain settings directly from your transmitter while driving.

It has a built-in BEC that can output either 5.5V or 7.5V to power your receiver and servo, but for very strong servos, an external BEC may be needed.

Because of its small size and light weight, it is commonly used in 1/10 scale crawlers and lighter rigs. It performs best with low KV crawler motors and vehicles under about 8 pounds for crawling use.

In short, it’s a small, highly tunable ESC focused on smooth control rather than speed, making it a good fit for technical crawling and trail driving.
