CSE010-0079-00 Quick Connect

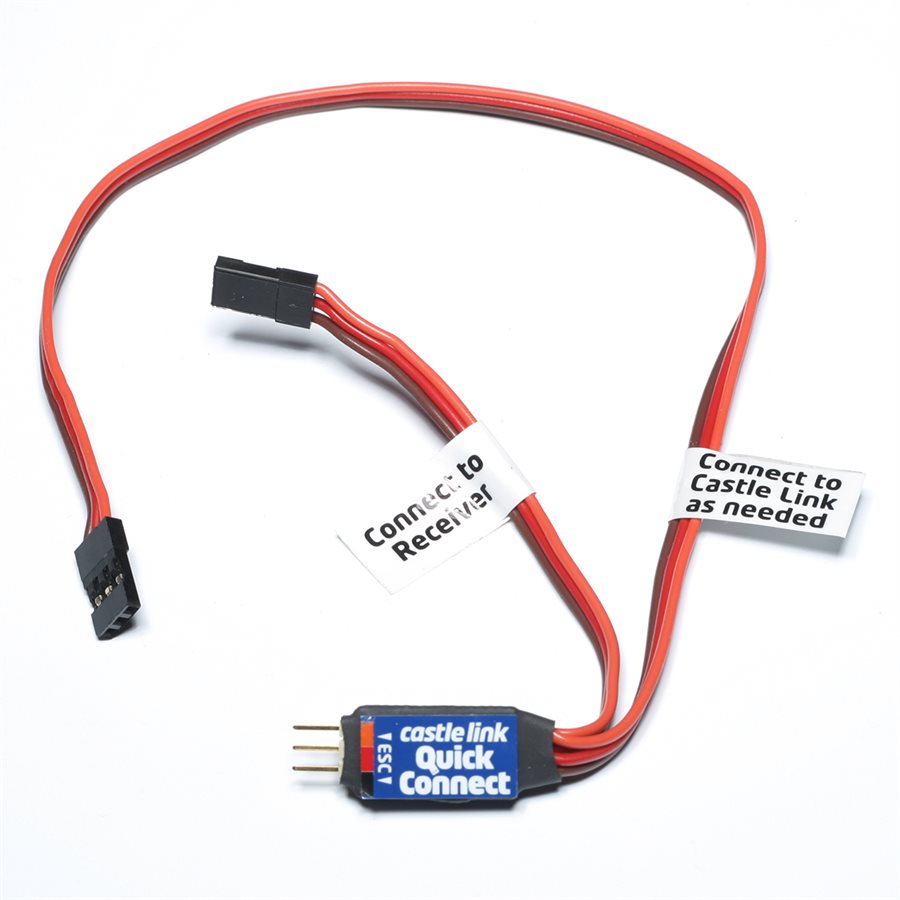

The Quick Connect simplifies linking your Castle ESC without having to unplug it from the receiver, helping you avoid disturbing carefully managed wiring. Many modelers prefer clean, secured setups, and this device provides a convenient way to connect a Castle Link adapter without interrupting existing connections.

Unlike a standard Y-harness, which cannot function properly when one branch remains connected to a receiver, the Quick Connect intelligently detects when a Castle Link adapter is attached to the open lead. It then automatically switches the controller’s signal line from the receiver to the Castle Link for programming.

Recommended ESC compatibility:

Surface:
Sidewinder v1/2/3/SCT, SW4, Sidewinder Micro, Sidewinder Micro 2, Mamba Micro Pro, Mamba Max, Mamba Max Pro, Mamba Monster, Mamba Monster 2, Copperhead 10, Cobra 8, Cobra 10

Air:
Phoenix ICE, Phoenix ICE HV, Thunderbird, Talon 15, 25, 35, 60, 90, Phoenix HV

Note:
For ESCs with dual BEC wires (such as Mamba XL X or Talon HV 120), or if your setup requires more than 6 amps from the BEC, the Quick Connect Duo is required.

Quick Connect and Quick Connect Duo are not compatible with Field Programming Cards when used as standalone programmers. They will only function when the card is used as a Castle Link adapter.

Tech tip:
The Quick Connect can be used with the B-Link Bluetooth adapter. Connection order should be: ESC > Quick Connect > B-Link > Receiver.
