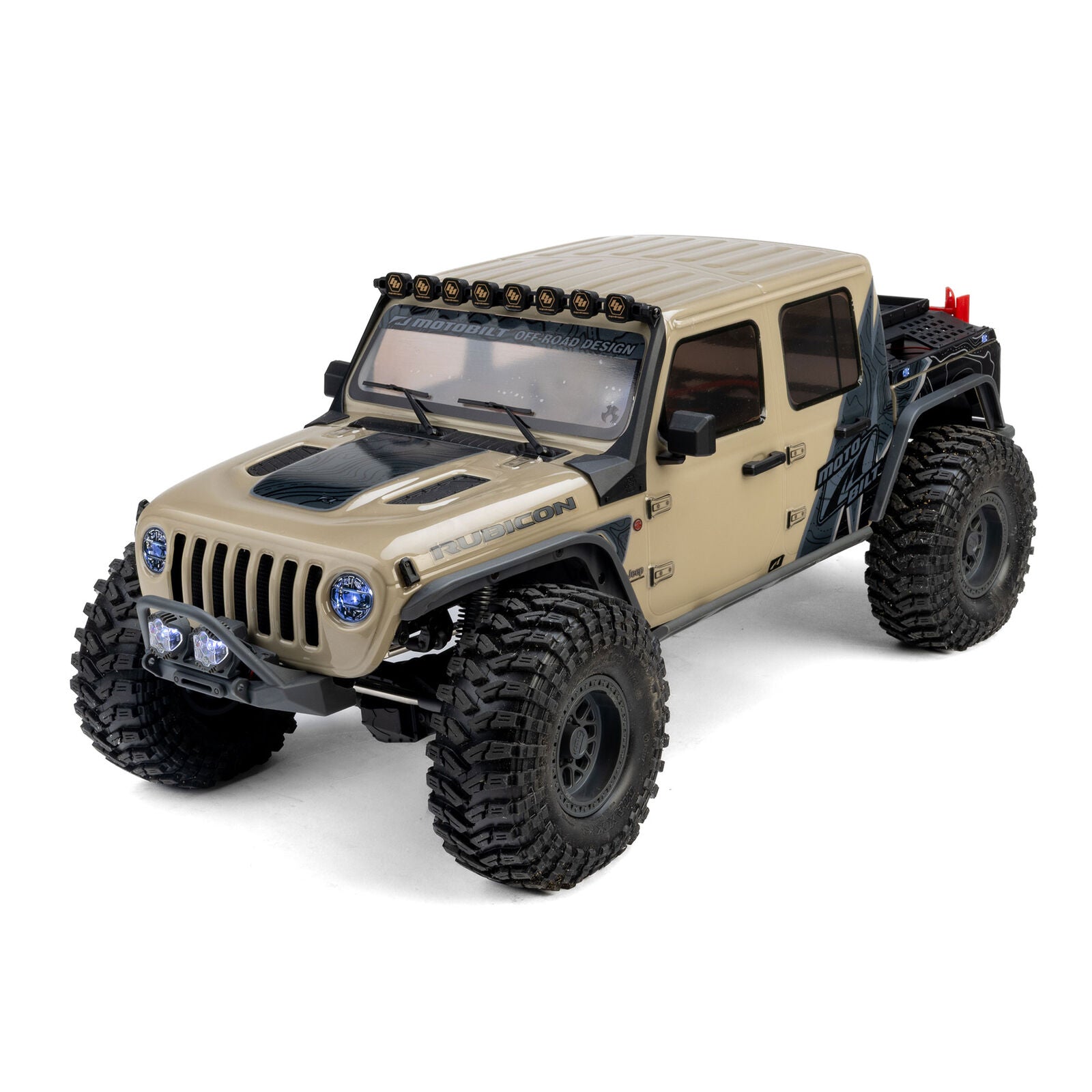

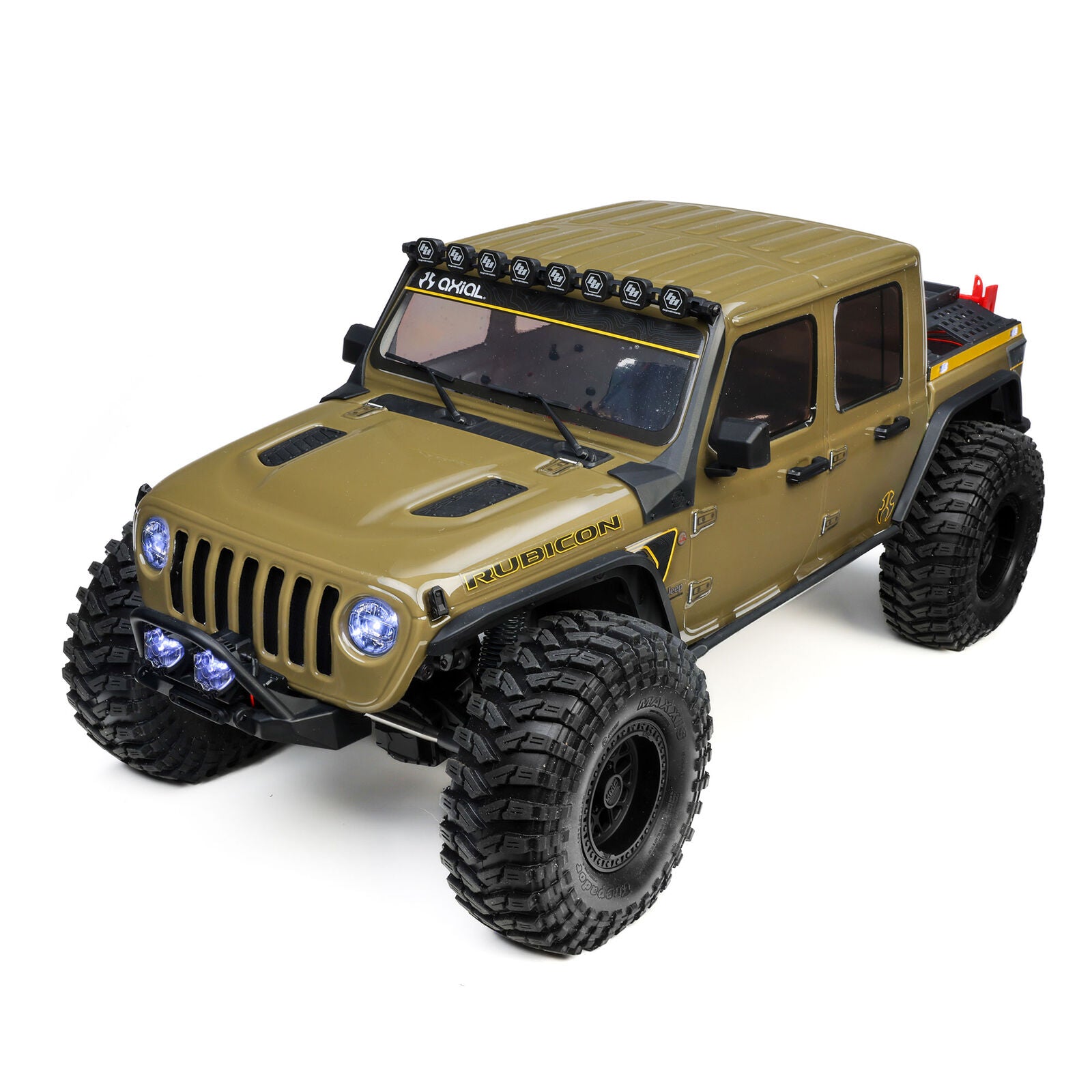

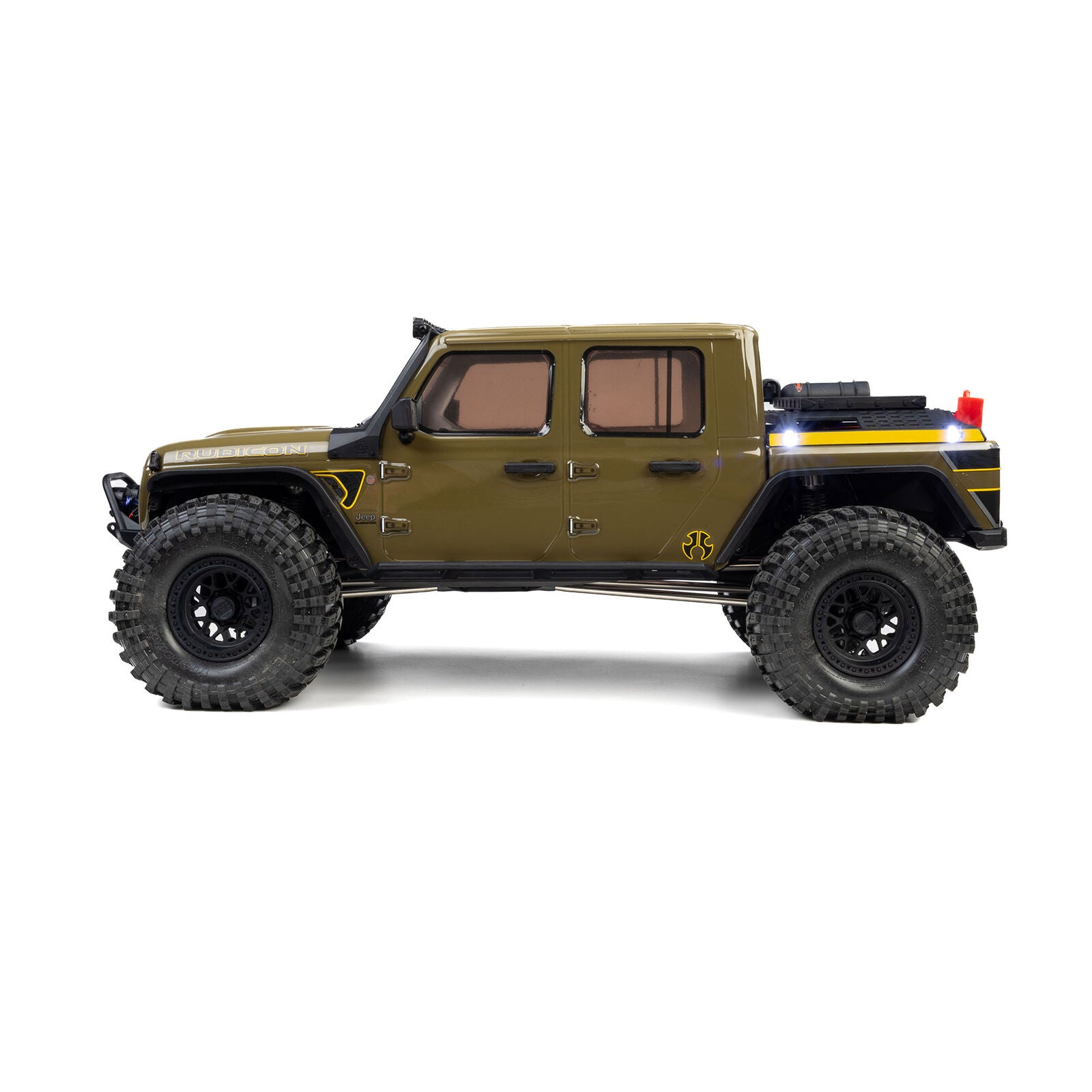

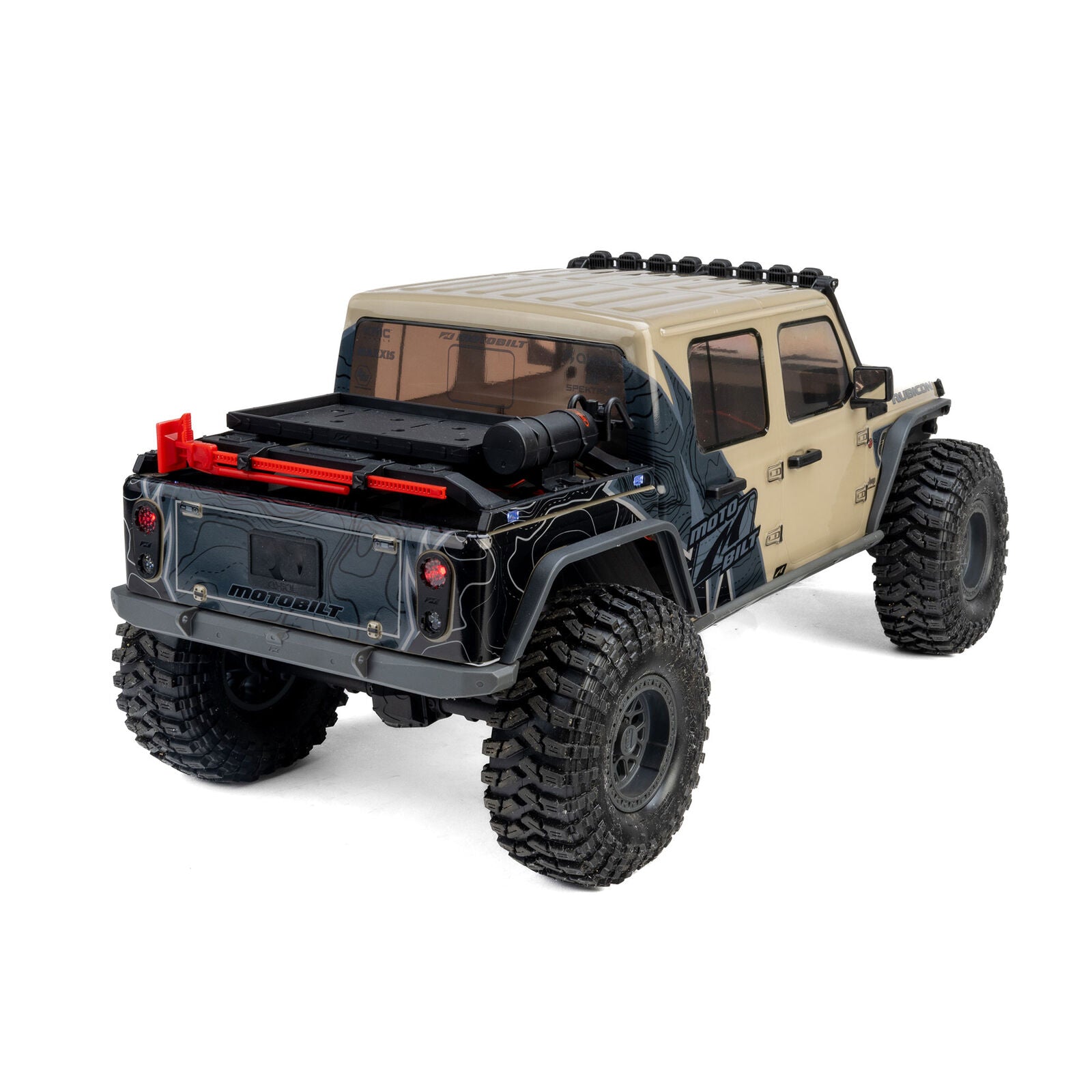

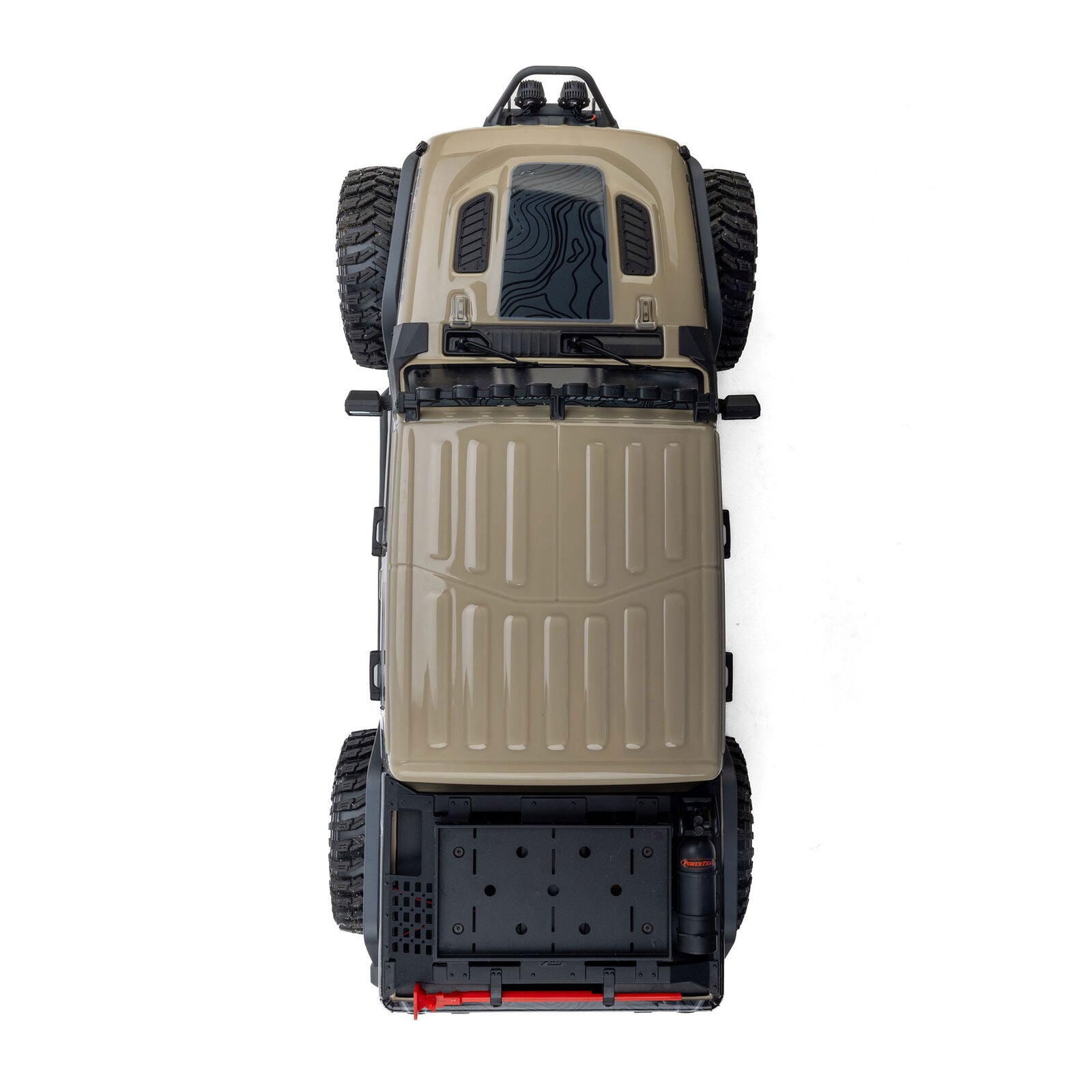

AXI-2443 1/10 Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator

Axial’s SCX10 III Motobilt Waypoint Jeep JT Gladiator delivers a 1/10‑scale recreation of one of the most extreme off‑road machines built. Licensed Jeep details, bobbed bed, KMC wheels, Maxxis tires, and LEDs make it ready for real terrain.

• Officially licensed Jeep JT Gladiator body replicating Motobilt's Waypoint build
• Ready-To-Run - only a battery and charger required
• Licensed KMC Grenade beadlock wheels with Maxxis Trepador tires

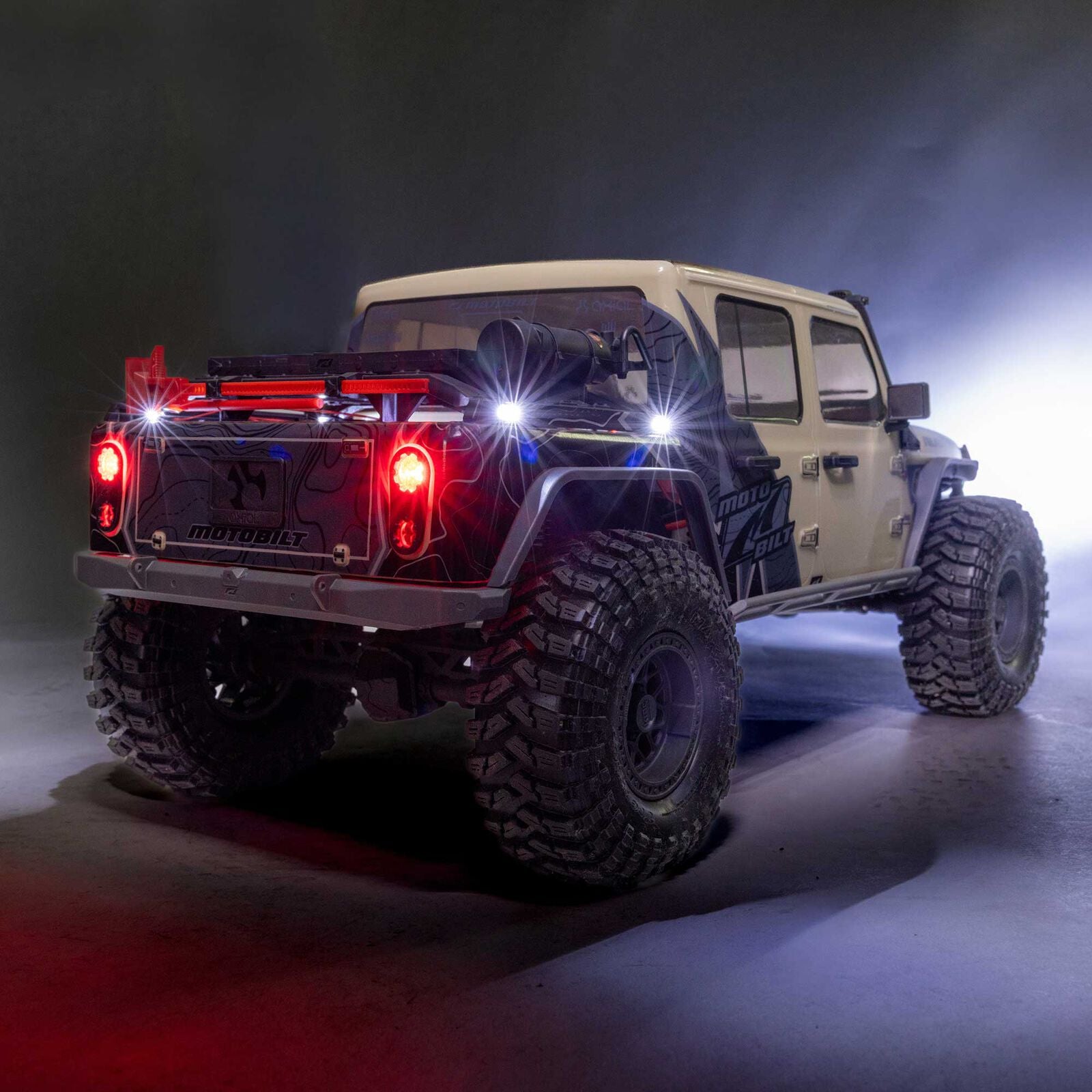

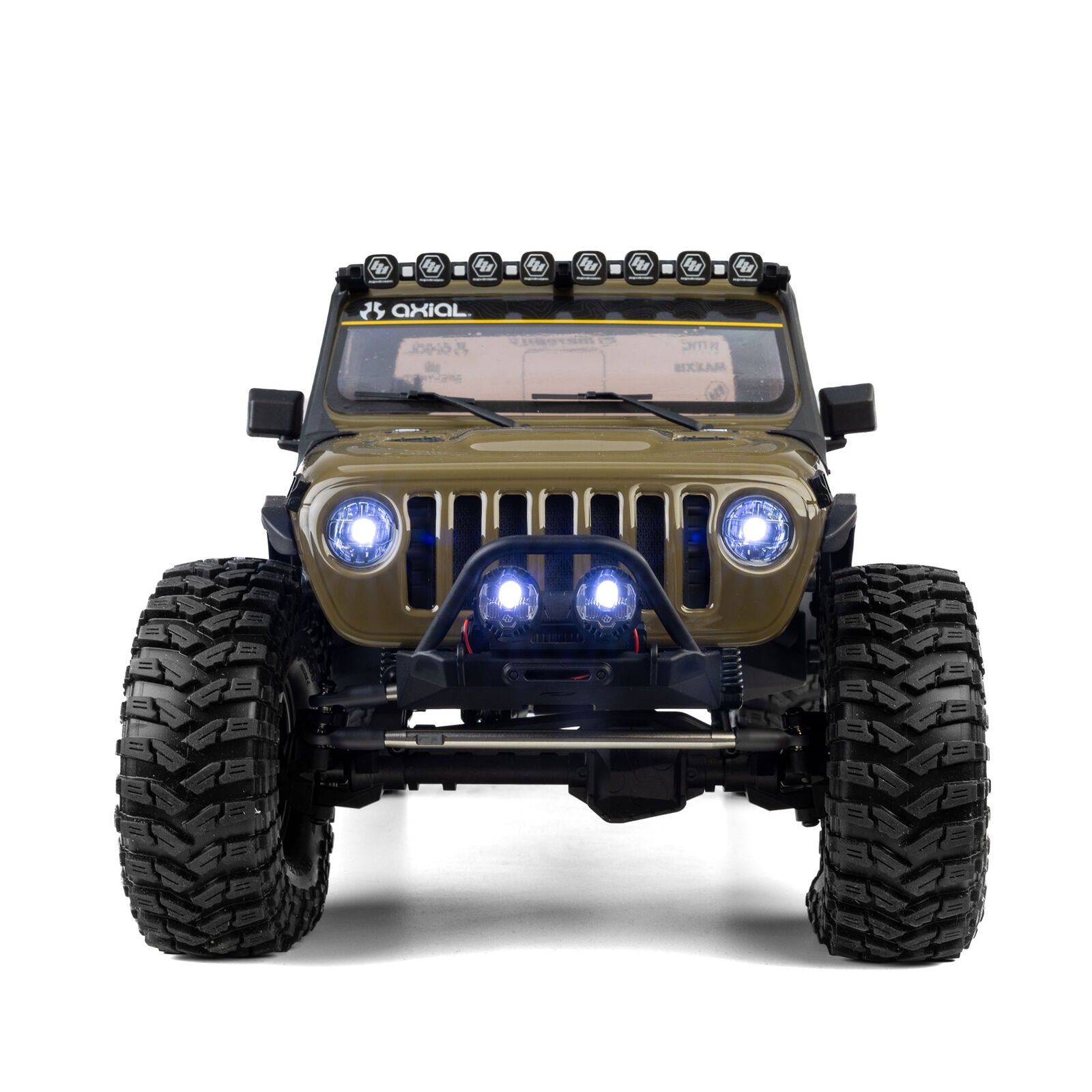

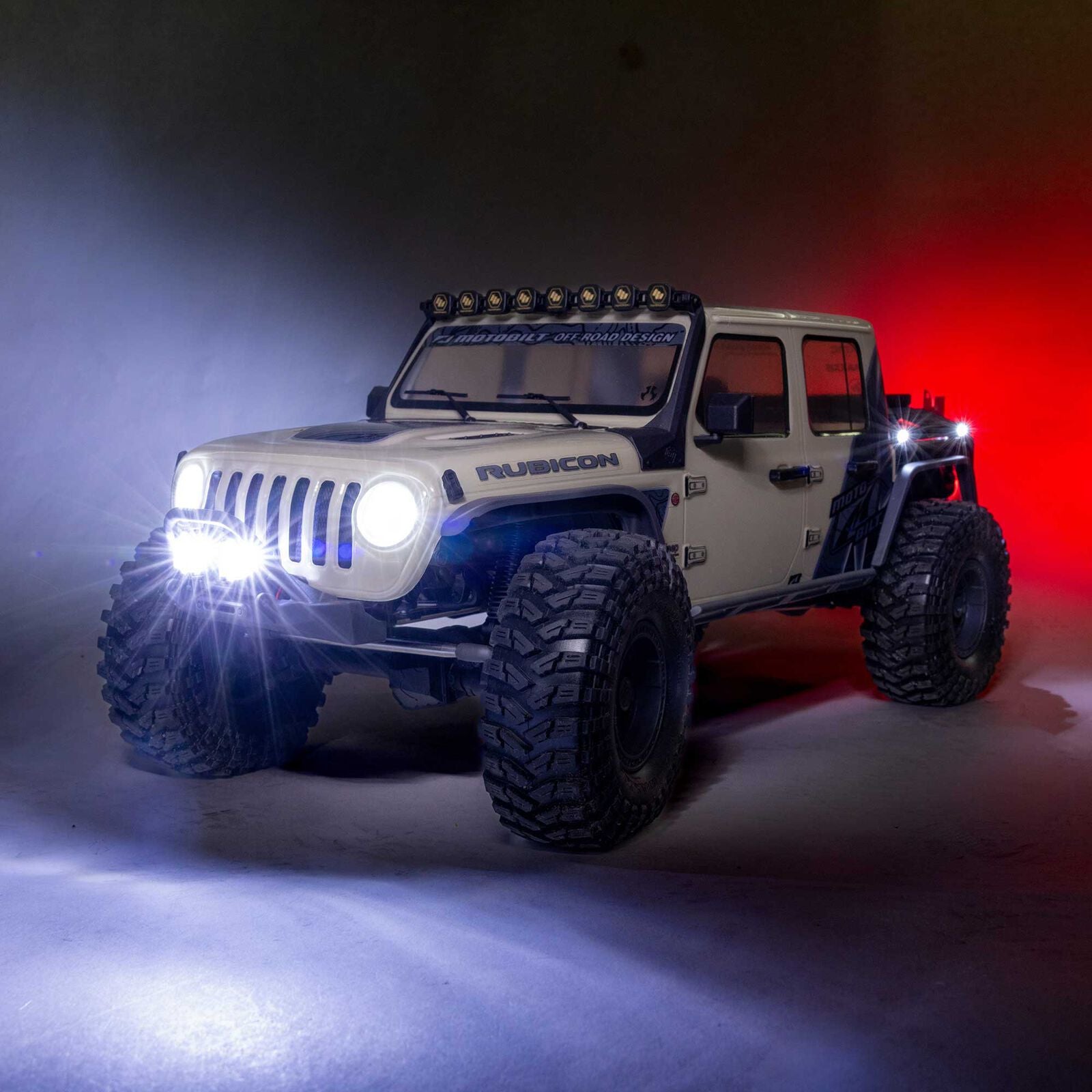

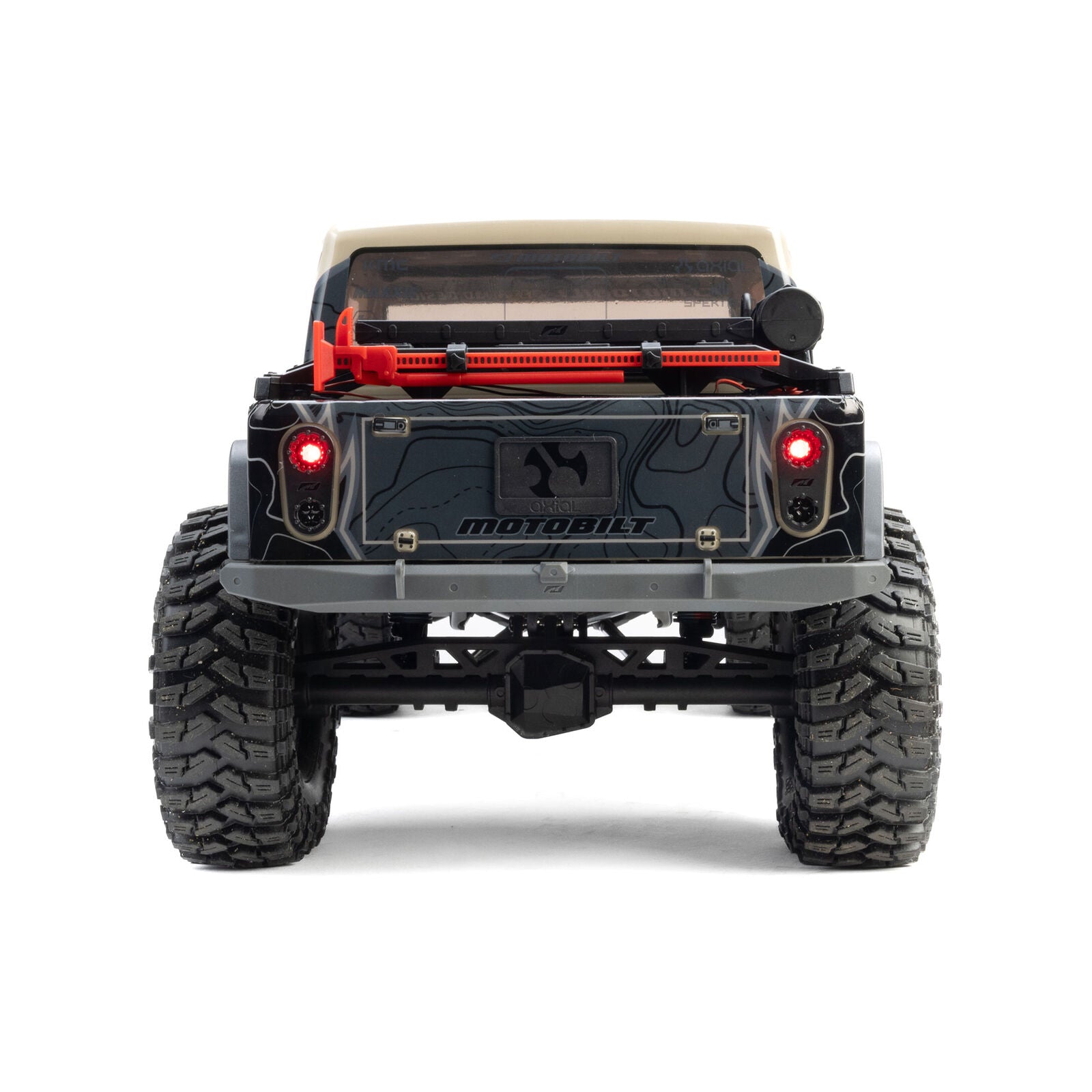

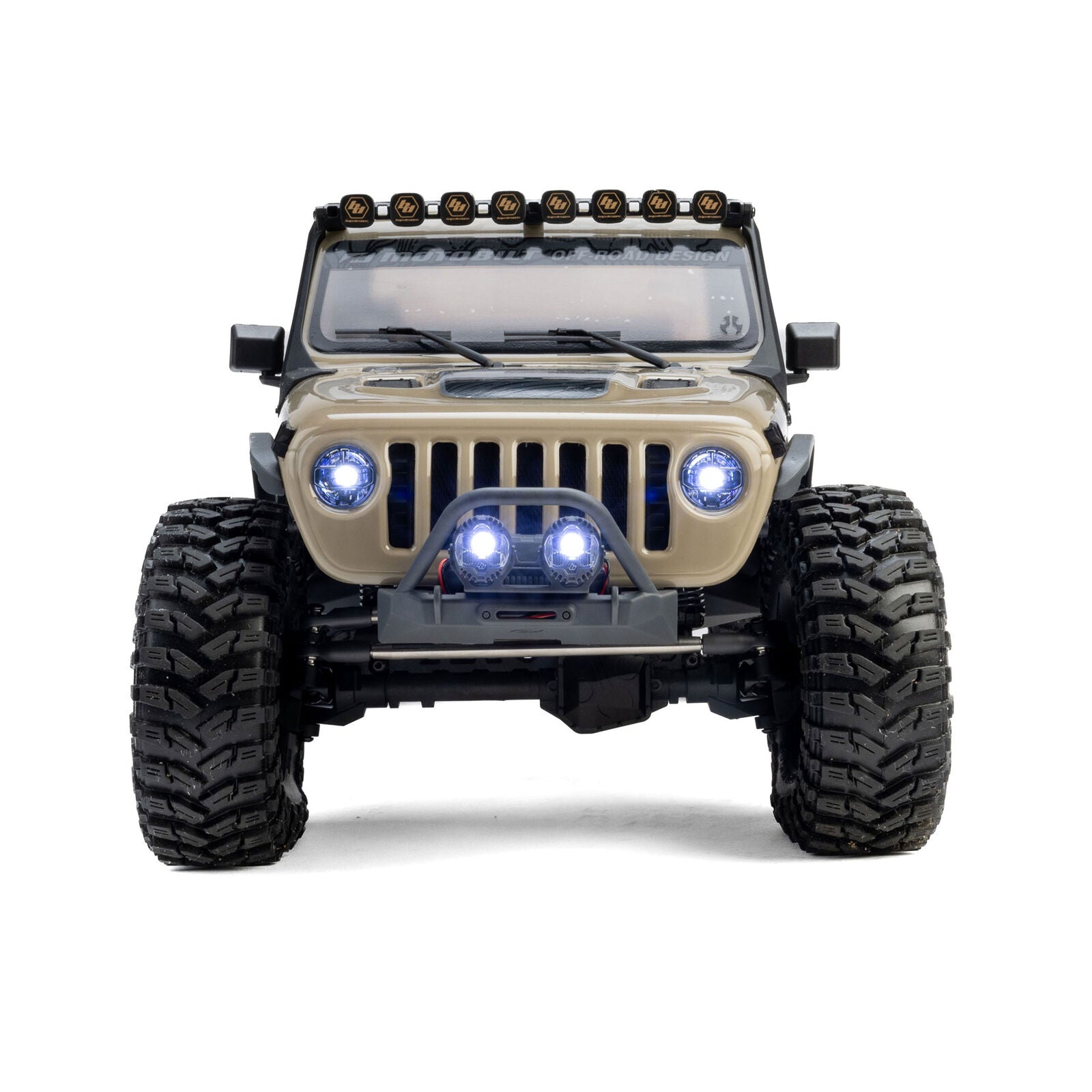

• LEDs on bumper, headlight, taillights, and bed rack
• The factory‑installed dig function for precision manuevers

Features

• Motobilt Waypoint build trim specs and details

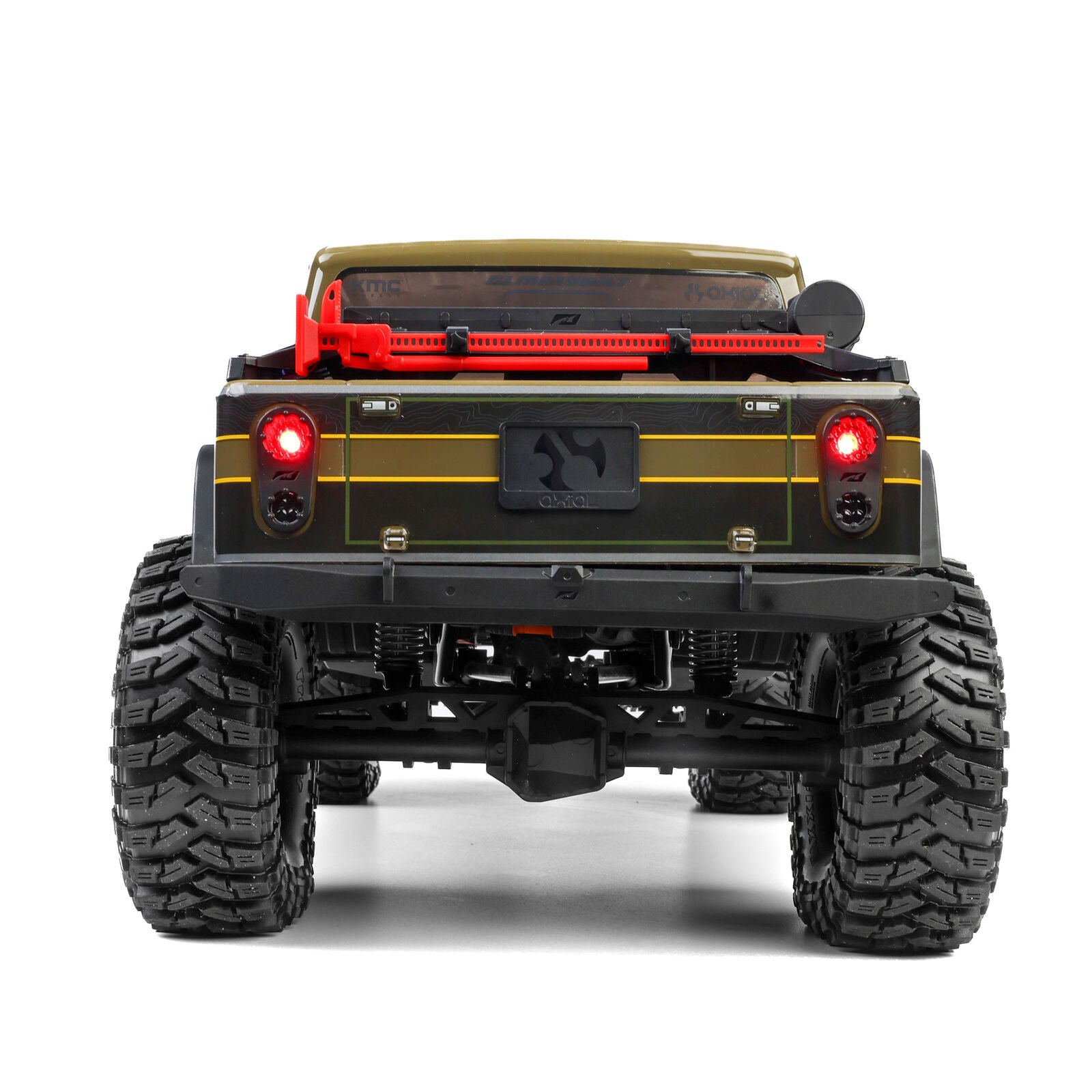

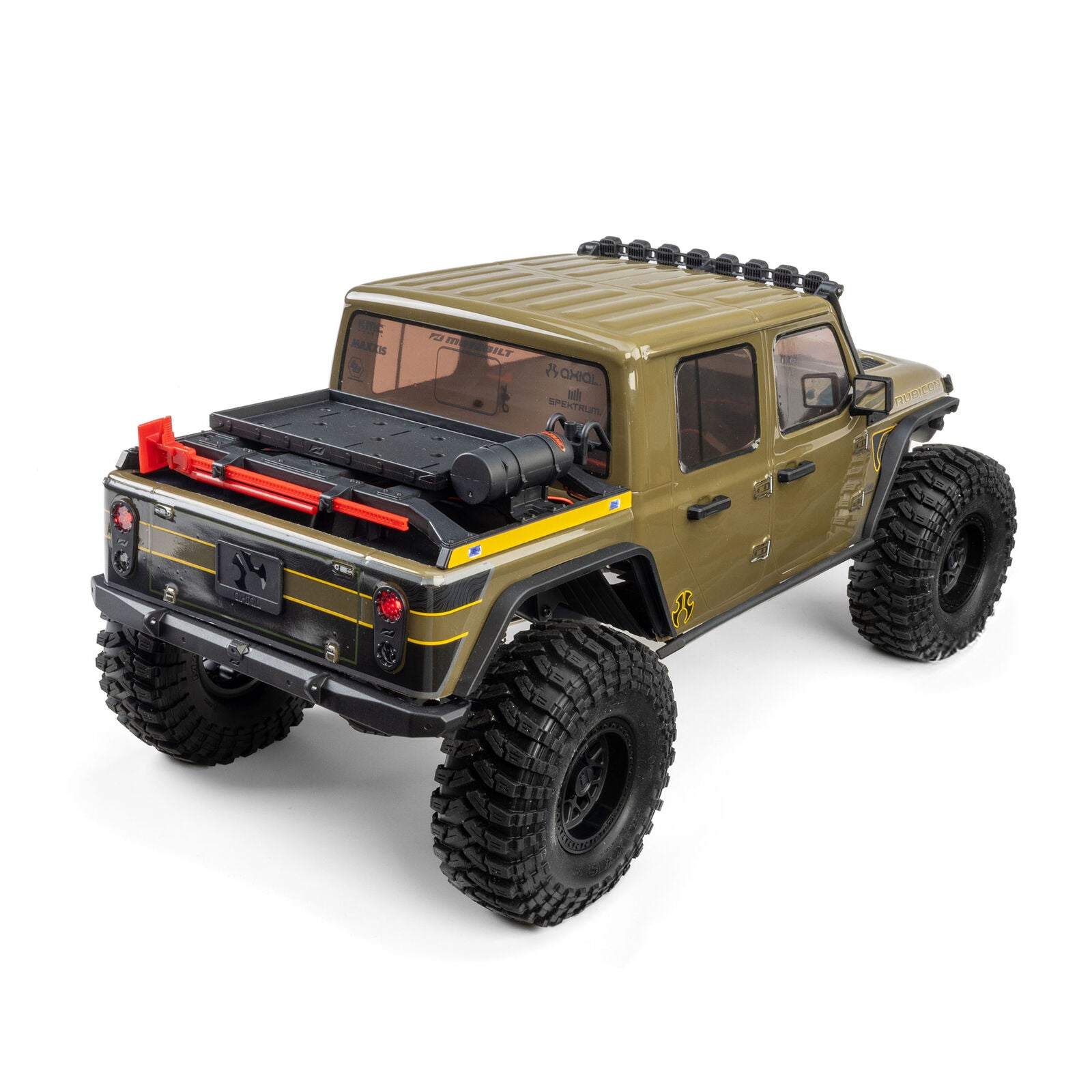

• Bobbed bed for better departure clearance
• Durable polycarbonate body, painted and assembled
• Jeep's authentic and iconic 7-slot grille design
• Detailed fender flares, door handles, hood vents, and side mirrors
• Official Jeep color paint schemes
• Inner fender wells for scale realism
• Motobilt front and rear bumpers
• Baja Designs LP6 bumper lights
• Baja Designs S2 bed rail lights

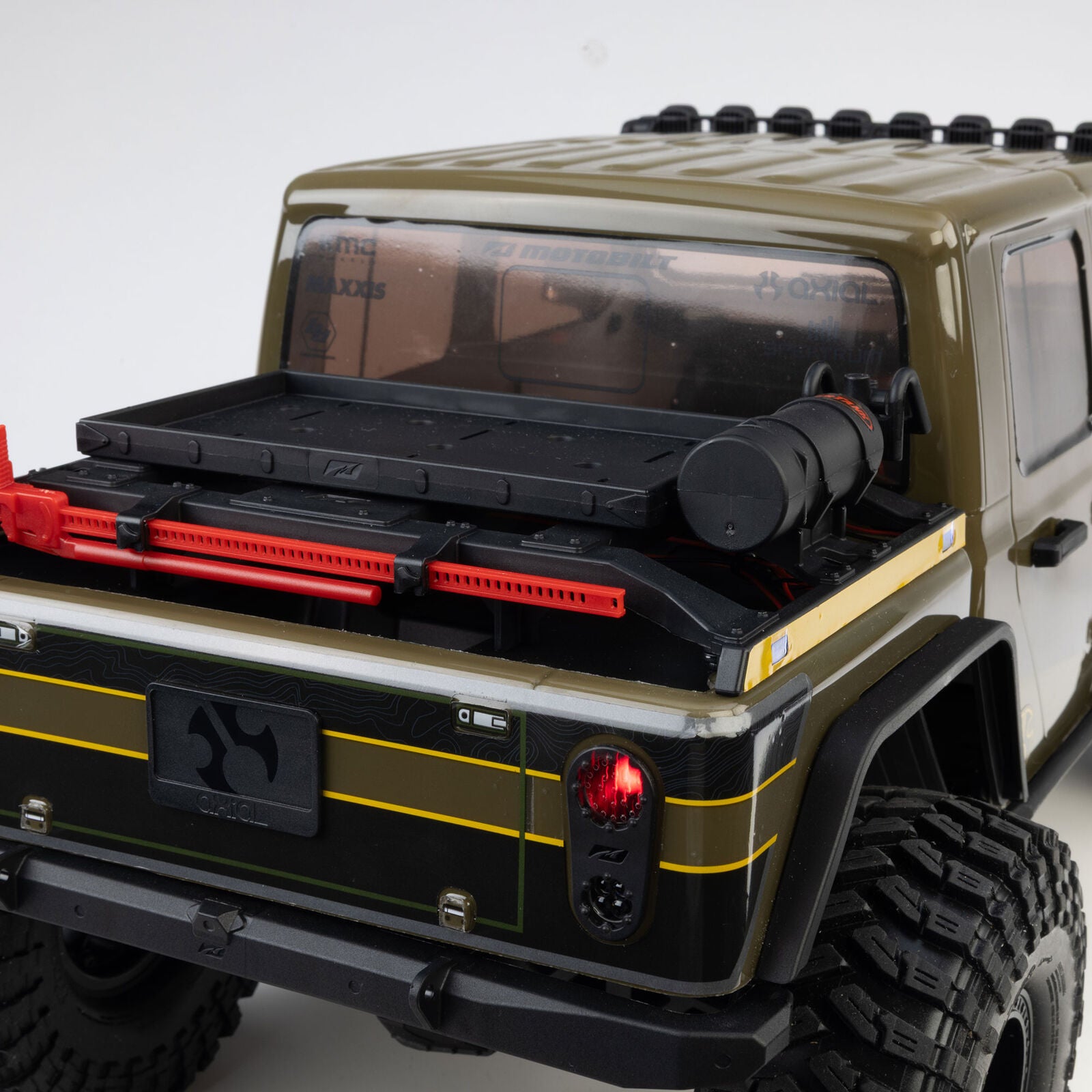

• Scale 15 lbs. CO2 tank in bed
• Hi-Lift jack bed mount

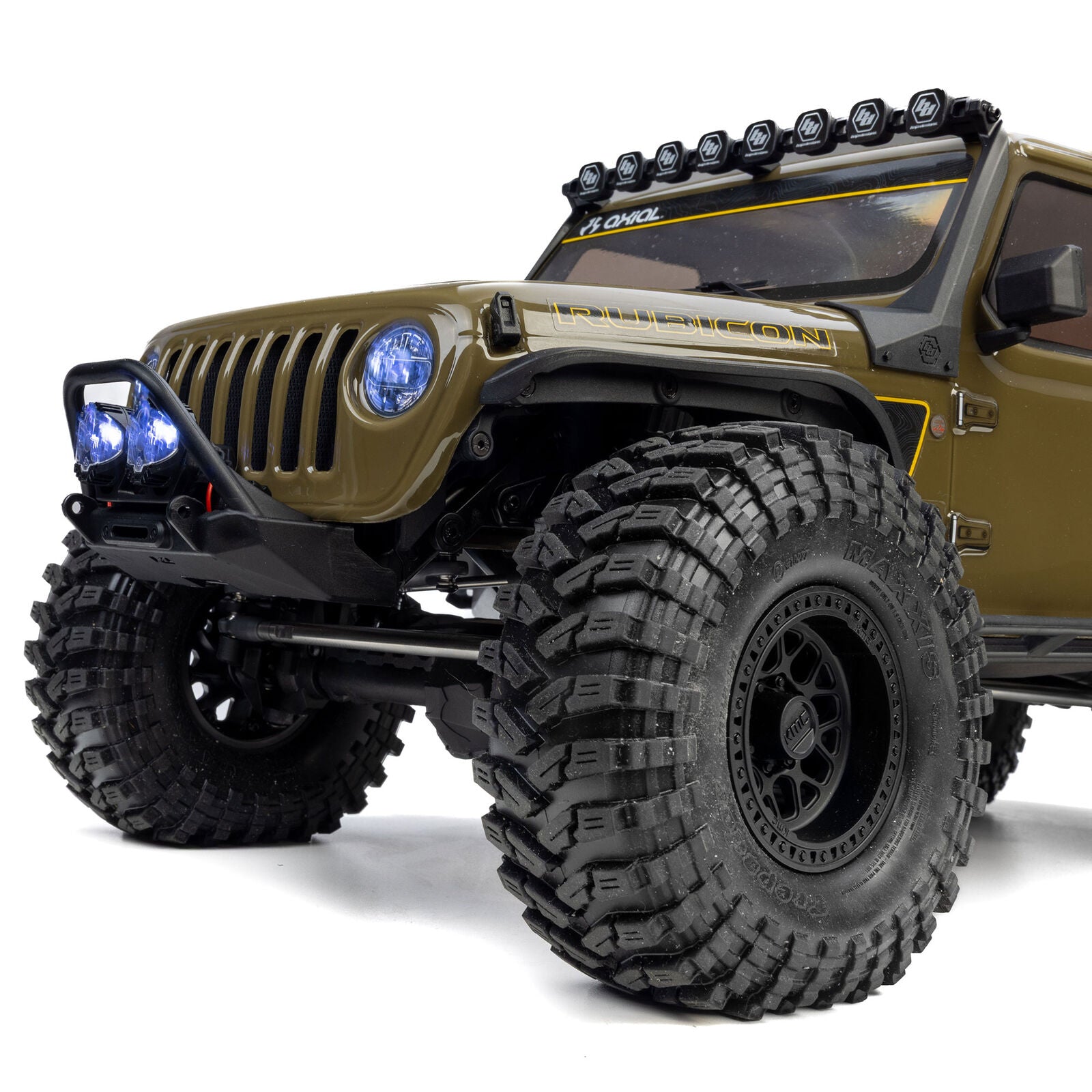

• Officially licensed KMC Grenade beadlock wheels
• Maxxis Trepador tires in soft compound
• AR45 straight axles
• Oil-filled shocks with aluminum threaded bodies
• Front 3-link suspension
• Rear 4-link suspension
• 6mm stainless steel suspension links
• Stainless steel pivot balls on rod ends

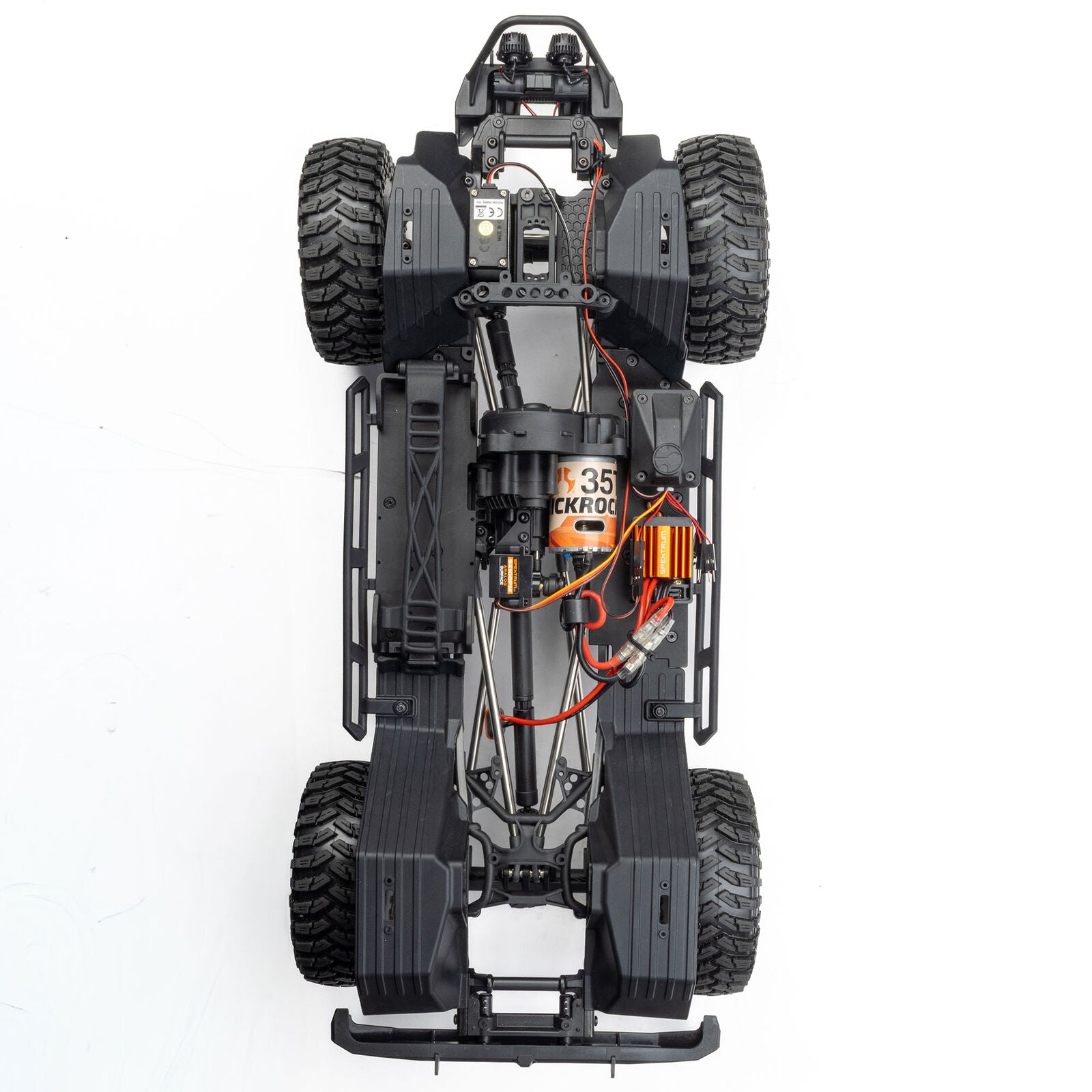

• Expandable steel C-channel chassis rails

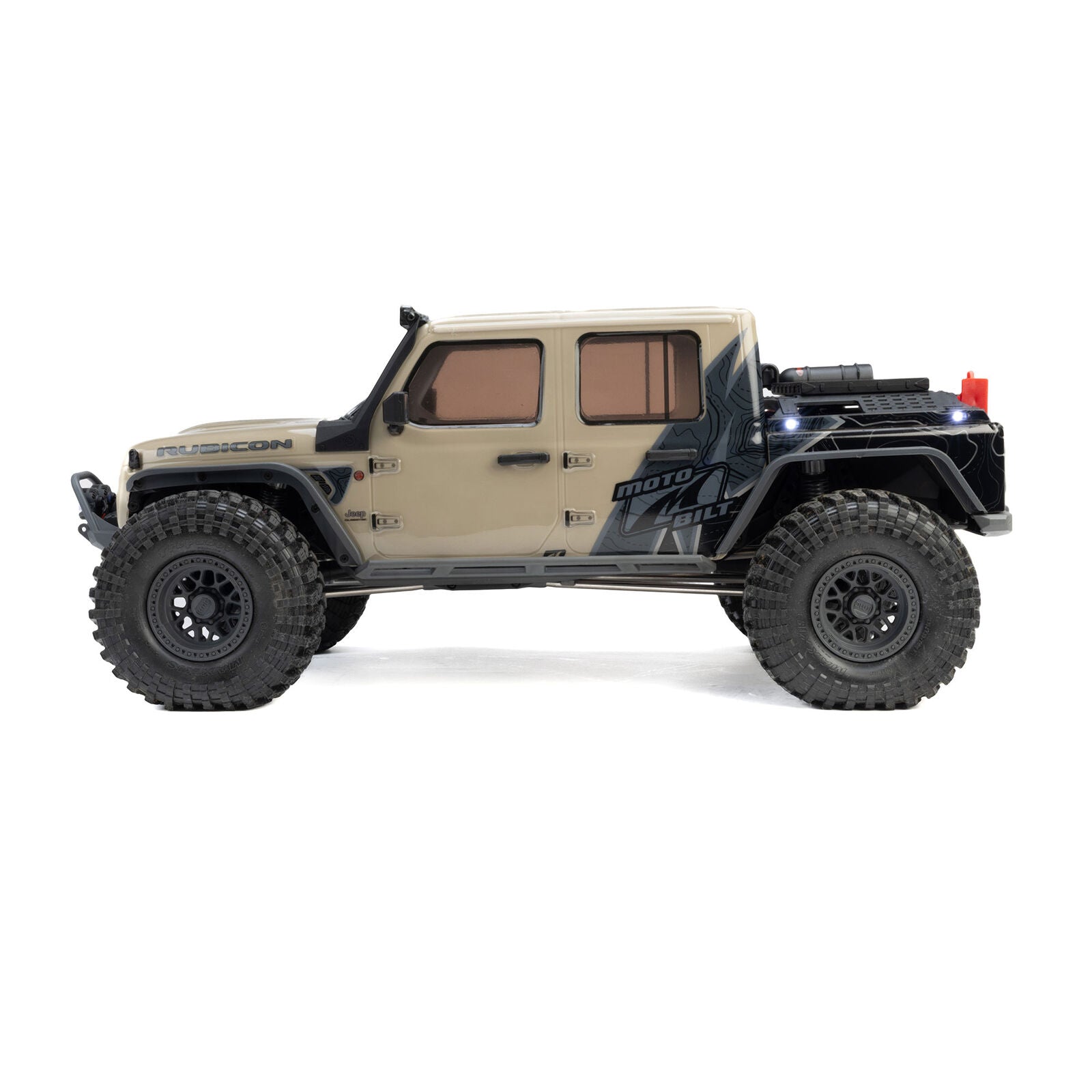

• 13.9" extended wheelbase
• SCX10 III transmission with full ball bearings
• All-metal internal transmission gears
• Improved two-piece Panhard bar mount with double shear protection
• Skid plate with multiple link-mount options for adjustable geometry and dialed–in anti–squat
• Spektrum SLT3 3-channel transmitter
• Spektrum Firma 40A Brushed Waterproof ESC
• Axial Slick Rock 35-Turn Brushed 540-size motor
• Spektrum S683 servo with 25T steel output gear
• Factory dig system with included servo and hardware
• Dig feature is operated through the transmitter's third channel

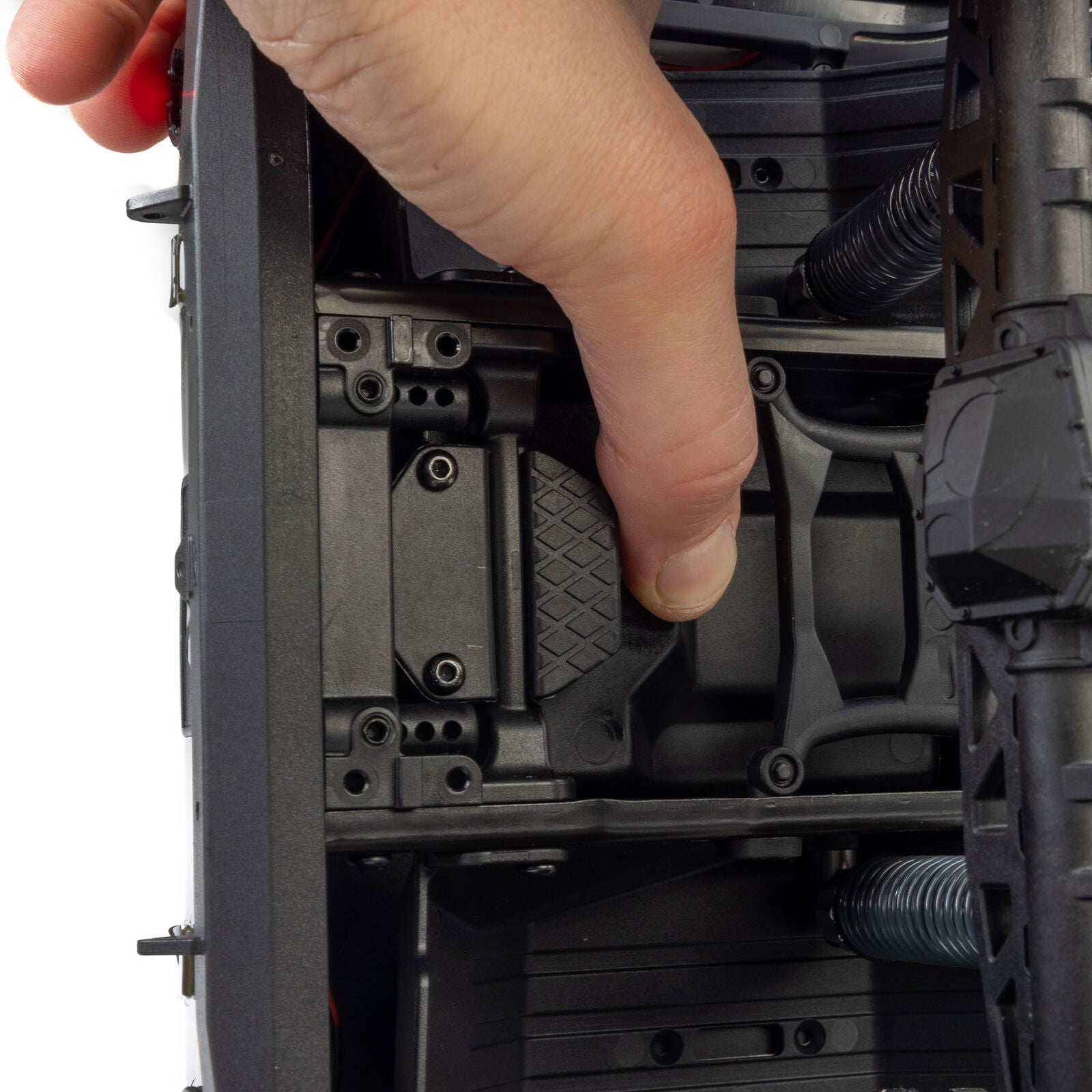

• Silicone elastomer battery straps
• Compatible with standard or shorty battery packs

Specs

• Approximate Assembly Time: No Assembly Required
• Battery: Sold Separately
• Body: Polycarbonate, officially licensed Jeep JT Gladiator
• Brakes: Programmable
• Charger: Sold Separately

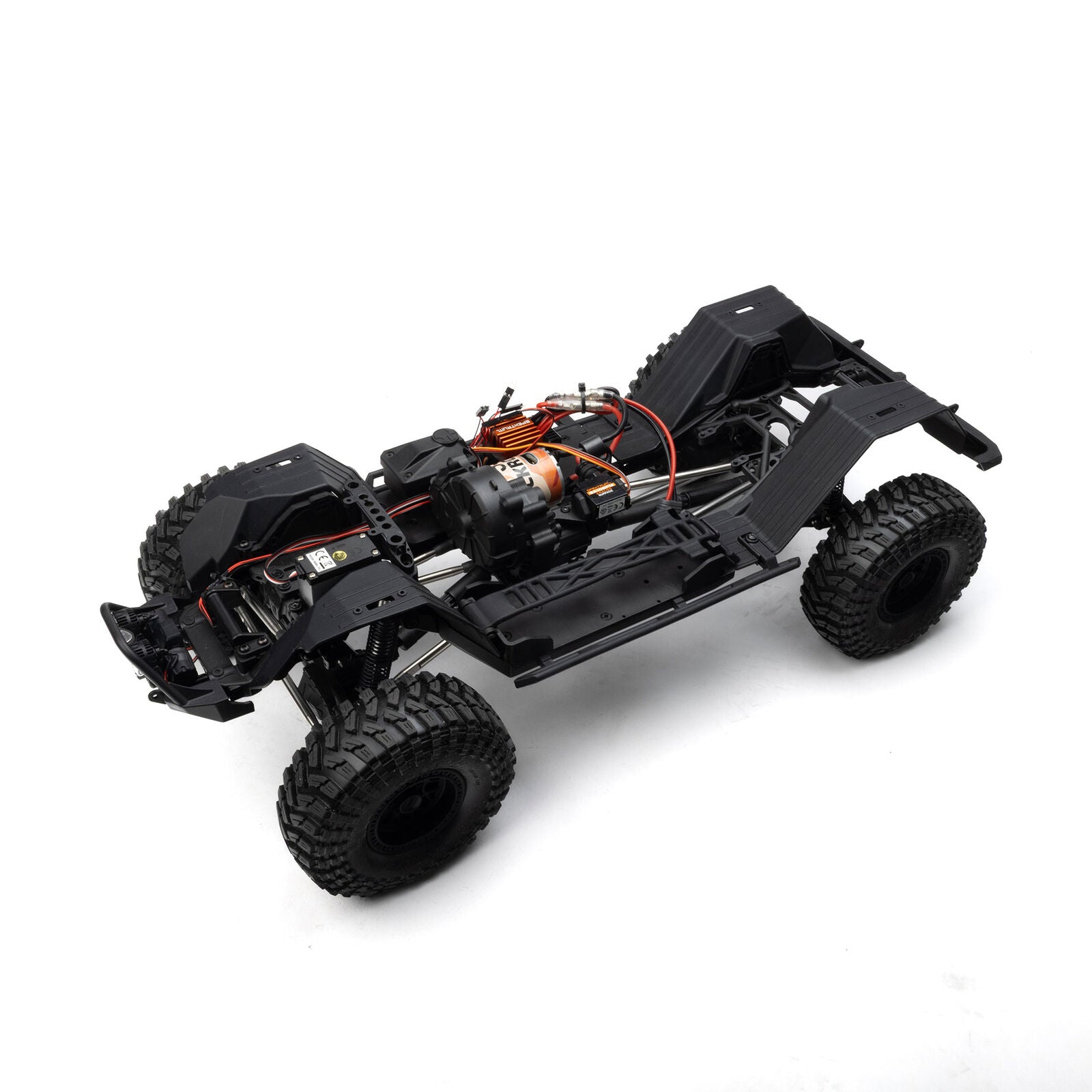

• Chassis: Steel C-channel with expandable rails
• Completion Level: Ready-To-Run
• Connector Type: IC3
• Differential: Spool
• Drive Type: Forward/Brake/Reverse
• Drivetrain: 4WD
• Final Drive Ratio: 47.20
• Internal Gear Ratio: 11.80
• Lighting: LED
• LiPo Compatibility: 2S, 3S
• Make: Jeep
• Max Battery Dimensions: 138 x 46 x 35
• Motor Size: 540
• Motor Type: Brushed

• Oil Type & Content: 35
• Pinion: 14T
• Product Height: 9.2" (234 mm)
• Product Length: 21.7" (551 mm)
• Product Weight: 6.7 lbs. (3.02kg) without battery
• Product Width: 9.9" (251 mm)
• Radio: Included
• Scale: 1/10
• Servos: Included
• Speed Control: Included
• Spur Gear: 56T
• Suspension: Front 3-link, Rear 4-link
• Tire Type: Maxxis Trepador in Axial’s soft compound
• Vehicle Size: Standard
• Vehicle Type: Rock Crawler
• Wheel Hex Size: 12mm
• Wheel Type: Officially licensed KMC Grenade beadlock wheels

In The Box

Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 4X4 RTR Brushed Rock Crawler (1)

Spektrum SLT3 3-Channel Transmitter (1)

Spektrum SR515 Receiver (1)

Spektrum Firma 40A Brushed Waterproof ESC (1)

Axial Slick Rock 35-Turn Brushed Motor (1)

S683 Servo with Steel Output Gear (1)

SX108 Dig Micro Servo (1)

Product Manual (1)

AA Batteries (4)

Needed to Complete

11.1V 3200mAh 3S 30C Smart G2 LiPo Battery: IC3 (1)

S2200 G2 AC 2x200W Smart Battery Charger (1)
