Traxxas
Hobby Car

92144-4 TRX-4 Ford F-150 1/10 Scale 4WD RTR Scale & Trail Rock Crawler

Name: 92144-4 TRX-4 Ford F-150 1/10 Scale 4WD RTR Scale & Trail Rock Crawler
Brand: Traxxas
Price: 449.95 USD
Availability: InStock

$449.95

1/10 SIZE

Crawler TOP SPEED

Brushed POWER

Battery & Charger SOLD SEPARATELY

Just 3 left. Order soon!

Color

Blue

Black

Product Variants

Shop by location

Choose location for pickup only

Product description

Scale Looks. Rugged Performance.

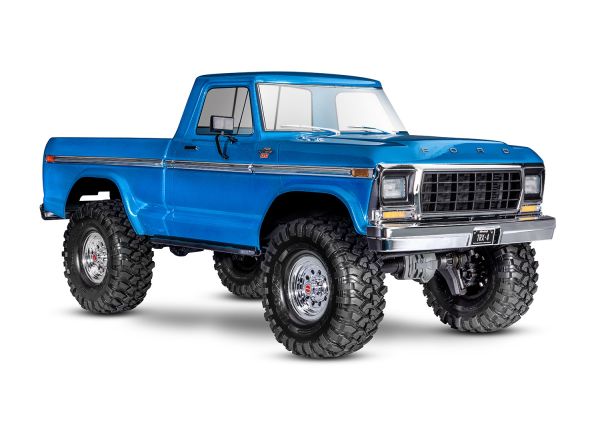

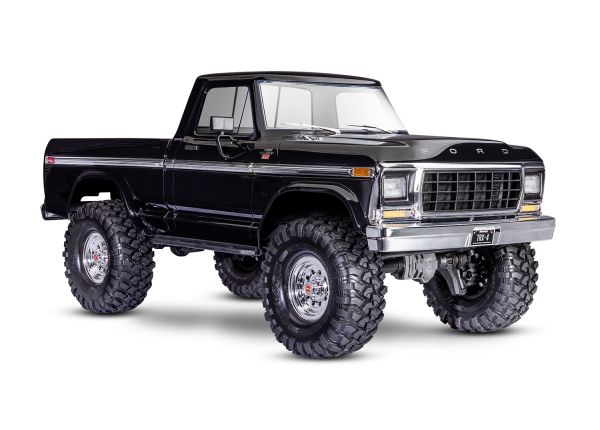

TRX-4^® Ford^® F-150^® combines the unbeatable ground clearance and driving dynamics of Traxxas portal axles, sticky Canyon Trail™ tires, and a detailed clipless body. TRX-4 Ford F-150 is a leaner, performance-focused truck designed for increased climbing versatility. Sporting top-of-the-line Ranger XLT trim with chrome trim and chrome mag wheels, TRX-4 Ford F-150 elevates your off-road adventures with style.

Authentic Scale Details

TRX-4 Ford F-150 delivers scale looks with bright chrome bumpers, side trim, and side markers. The highly detailed two-tone grille, wipers, and door handles combine with clear windows to give the truck maximum scale authenticity.

Single Speed Transmission

Geared for raw torque, the single-speed transmission sheds valuable weight from the TRX-4's chassis for better weight distribution. Steel gears provide Traxxas-Tough durability and virtually maintenance-free operation.

Spool-Locked Axles

Full-time locked front and rear axles transform the motor's torque into unstoppable climbing action. With no slippage possible, all four wheels claw with equal traction, powering TRX-4 F-150 over the toughest obstacles.

MODEL SPECS

Name:	TRX-4 Ford F-150
Type:	Trail Truck / Crawler
Skill Level:	1
Chassis:	Extended steel ladder frame
Scale:	1/10
Weight:	5.79 lb (2.63 kg)
Length:	22.30 inches (566 mm)
Width:	9.78 inches (249 mm)
Height:	9.47 inches (241 mm)
Track:	9.78 inches (249 mm)

Wheelbase:	13.23 inches (336 mm)
Center Ground Clearance:	3.14 inches (80 mm)
Driveline:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Spool (no differentials)
Gear Pitch:	32 pitch
Steering Servo:	2075X metal gear, digital high-torque waterproof
Radio System:	TQ™ 2.4 GHz 2-channel transmitter
Battery Compartment Specs:	159 mm X 47 mm X 23 mm, 26 mm

Officially Licensed 1979 Ford^® F-150^® Ranger XLT Body

Scale details: grille, chrome bumpers, side mirrors, door handles, and wipers
LED-ready headlights and tail lights
Authentic decals
Full Nylon composite wheel wells and floor pans

Clipless Body mounting

Clipless design for smooth body appearance
Rugged internal body cage for added rigidity

Body details mount directly to internal frame

Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control

Fully waterproof design
Five drive profiles

Sport Mode — forward / brake / reverse
Race Mode — forward / brake / no reverse
Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake

Traxxas EZ-Set^® one-button setup
Large, efficient heat sink
Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
Two stage low voltage protection (LVD)

Titan^® 550 Motor

Powerful Titan 21T reverse rotation motor with internal cooling fan
Precise preset gear mesh adjustments
Motor retention separate from gear mesh

TQ™ 2.4 GHz 2-Channel Radio

Ergonomic transmitter with internal antenna
Traxxas 6519 3-channel micro receiver with fail-safe security
Patented o-ring sealed watertight receiver box keeps the receiver dry

Extended Wheelbase Chassis

Long 336 mm wheelbase for improved stability
Full-length 1.5 mm thick steel frame rails
Bumpers adjust fore and aft
Rugged rock rails adjust for width
Wire routing clips integrated into frame rails

Innovative Battery Compartment

Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)

Portal Axles

Increase ground clearance
Eliminate torque twist
Steel gears
Improve axle geometry and reduce strain on driveshafts

Driveline

Full-time shaft driven 4-wheel drive
Tough 6 mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Spool-locked front and rear axles
Steel gear transfer case

Transmission

Single-speed with steel gears
Dual horizontal shafts
Twin friction plate slipper clutch
Easily removed for servicing

Steering

Chassis mounted 2075X metal gear digital servo
Superior 45° steering angle
Direct steering (no servo saver)
Steering geometry corrected for bump steer

Suspension

Front — 3 link with panhard
Rear — triangulated 4 link
Heavy-duty rod ends with steel hollow balls
5 mm diameter steel link rods with 4 mm threaded ends

Aluminum GTS Shocks

Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
Silver-anodized aluminum bodies
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual x-ring shaft seals

Wheels and Tires

1.9″ chrome mag wheels wheels with hub inserts
Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts
Trail tuned S1 rubber compound
12 mm steel hex

Sealed Ball Bearings
Hex Hardware with Rust-Resistant Black Oxide Coating
Requires Battery and Charger (Sold Separately)

MODEL 92144-4: TRX-4^® Scale and Trail^® crawler with 1979 Ford^® F-150^® truck body: 1/10 Scale 4WD electric truck. Ready-To-Explore^®, with TQ™ 2.4 GHz radio system, XL-5™ HV ESC (fwd/rev), and Titan^® 550 motor.

What’s In The Box:

TRX-4 trail truck
XL-5 HV waterproof electronic speed control
Titan 21T reverse rotation motor
TQ 2.4 GHz radio system
High quality maintenance tools

What You’ll Need:

Batteries
TRX-4 accepts a wide variety of NiMH (6–7 cell) and LiPo (2s–3s) batteries.
Charger
The Traxxas EZ-Peak^® charger 2970 is recommended for easy and fast charging performance.
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
