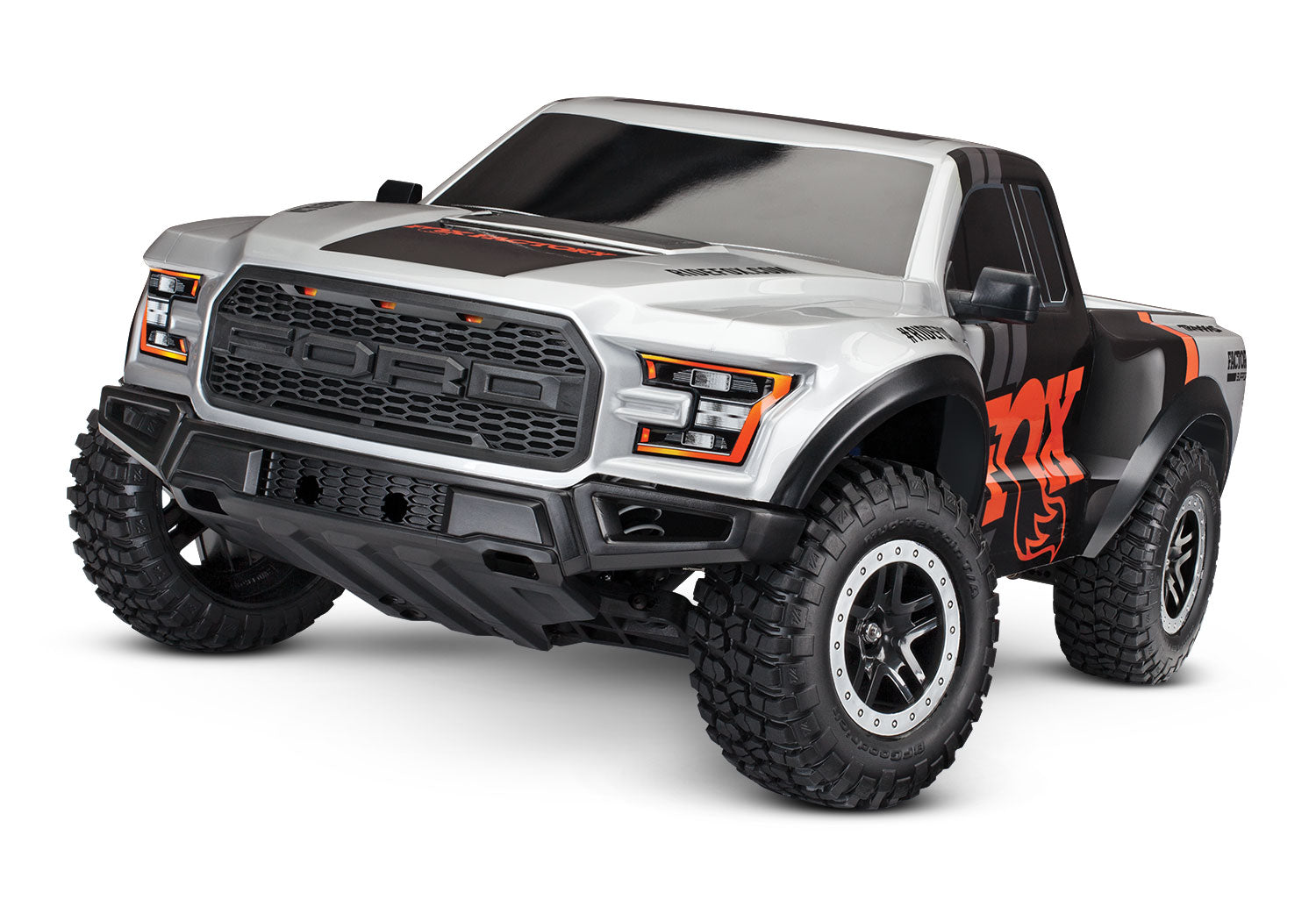

58394-4 Traxxas 2017 Ford F-150 Raptor 1/10 Scale 2WD BL-2S Brushless Short Course Truck

$319.95

1/10 SIZE

35+MPH TOP SPEED

2S Brushless POWER

Battery & Charger SOLD SEPARATELY

In stock!

Shop by location

Choose location for pickup only

Product description

Ford F-150 Raptor Styling with Award-Winning Slash Performance!
Built on the award-winning Slash® platform, the Traxxas Ford® F-150® Raptor® blends head-turning looks with the legendary durability of the Slash. Now equipped with the BL-2s™ brushless power system, the Raptor delivers quicker throttle response, powerful acceleration, and endless fun. Reinforced with Traxxas’ Extreme Heavy Duty components, this truck is ready to tackle even the toughest challenges, taking on the most intense conditions with ease.

1/10

Size

35+ mph

Speed

BL-2s

Power

Battery & Charger

Sold Separately

Key Features

Waterproof BL-2s Brushless Power System for smooth, high-performance power delivery
Factory-installed Extreme HD Suspension Components for superior durability and handling
TQ™ 2.4 GHz Radio System for reliable, interference-free control
Brushless-ready Metal Gear Magnum 272™ Transmission for efficient power transfer and durability
Officially licensed Ford® F-150® Raptor® clipless body for a true-to-life, sleek appearance

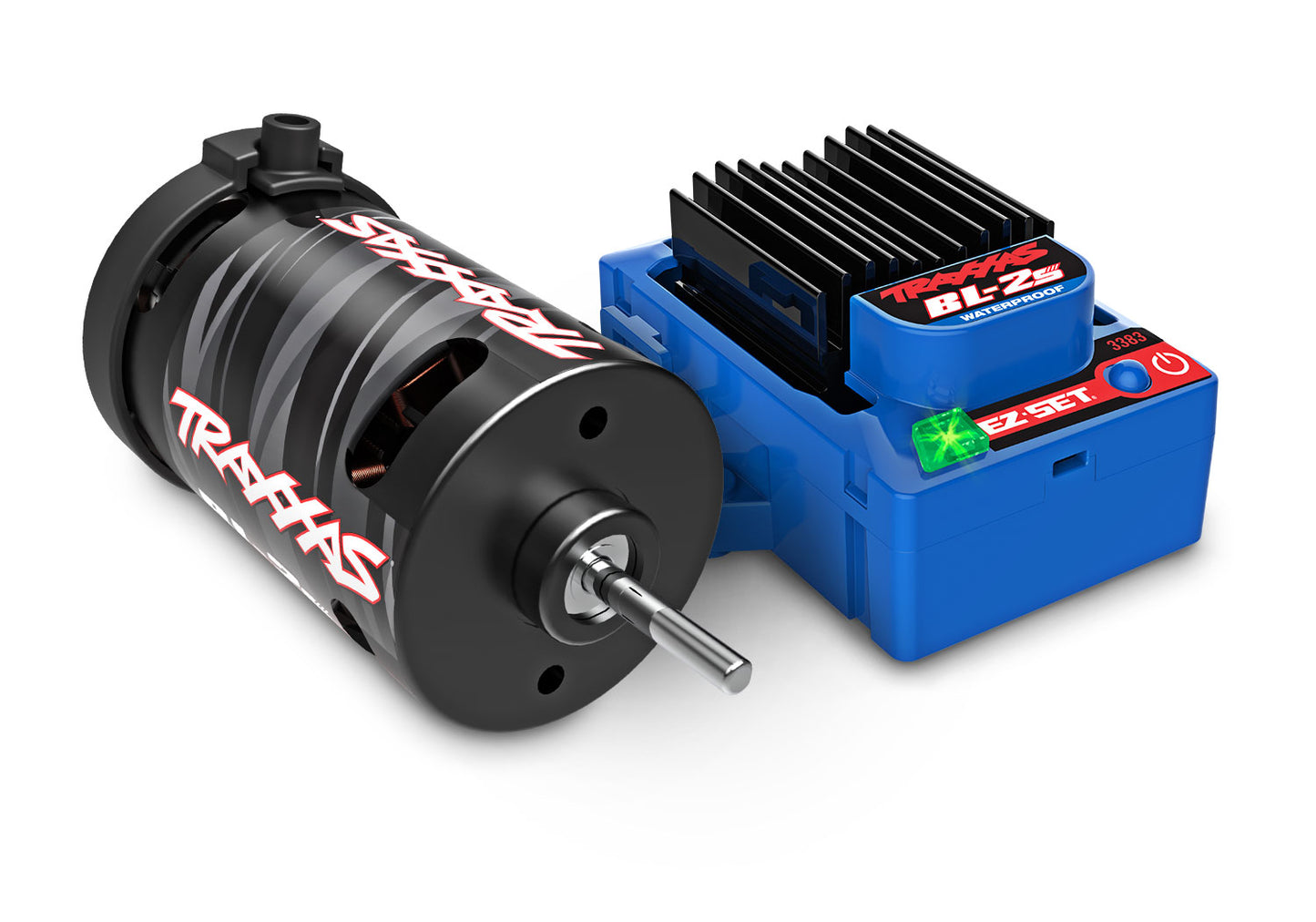

BL-2s Brushless Power System
The Raptor’s waterproof BL-2s brushless power system takes performance to the next level with increased torque, quicker acceleration, and lower maintenance compared to traditional brushed systems. Designed for efficiency and reliability, the BL-2s delivers more power while maintaining the safety and convenience that Traxxas is known for.

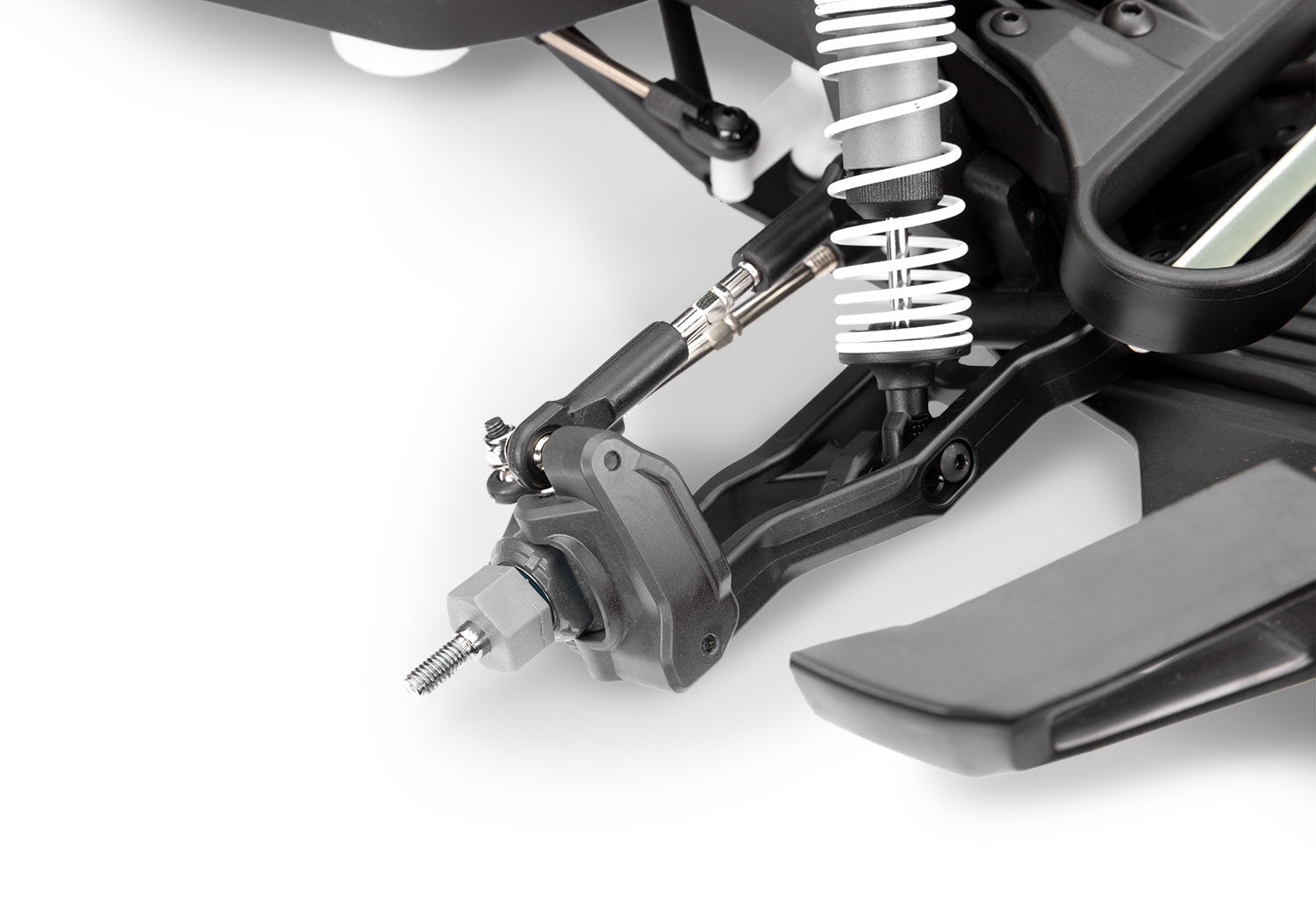

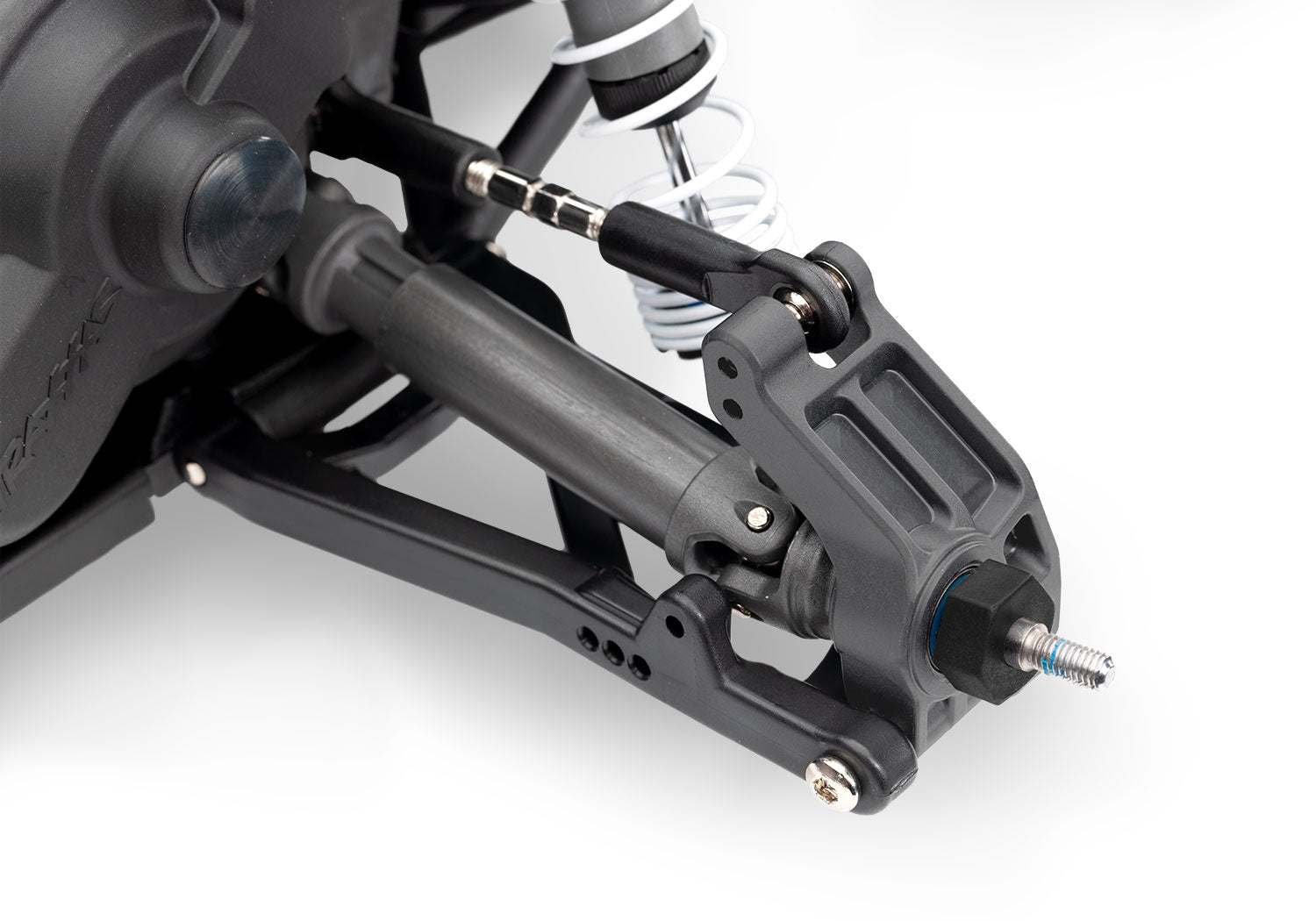

Extreme Heavy Duty Components

Extreme Heavy Duty Components
The Raptor comes equipped with factory-installed Extreme Heavy Duty components, delivering unmatched durability for your toughest off-road adventures. Critical drivetrain and suspension parts are reinforced with extra material to ensure maximum strength. From HD suspension arms to upgraded driveshafts, the Raptor raises the bar for durability and reliability in extreme conditions.

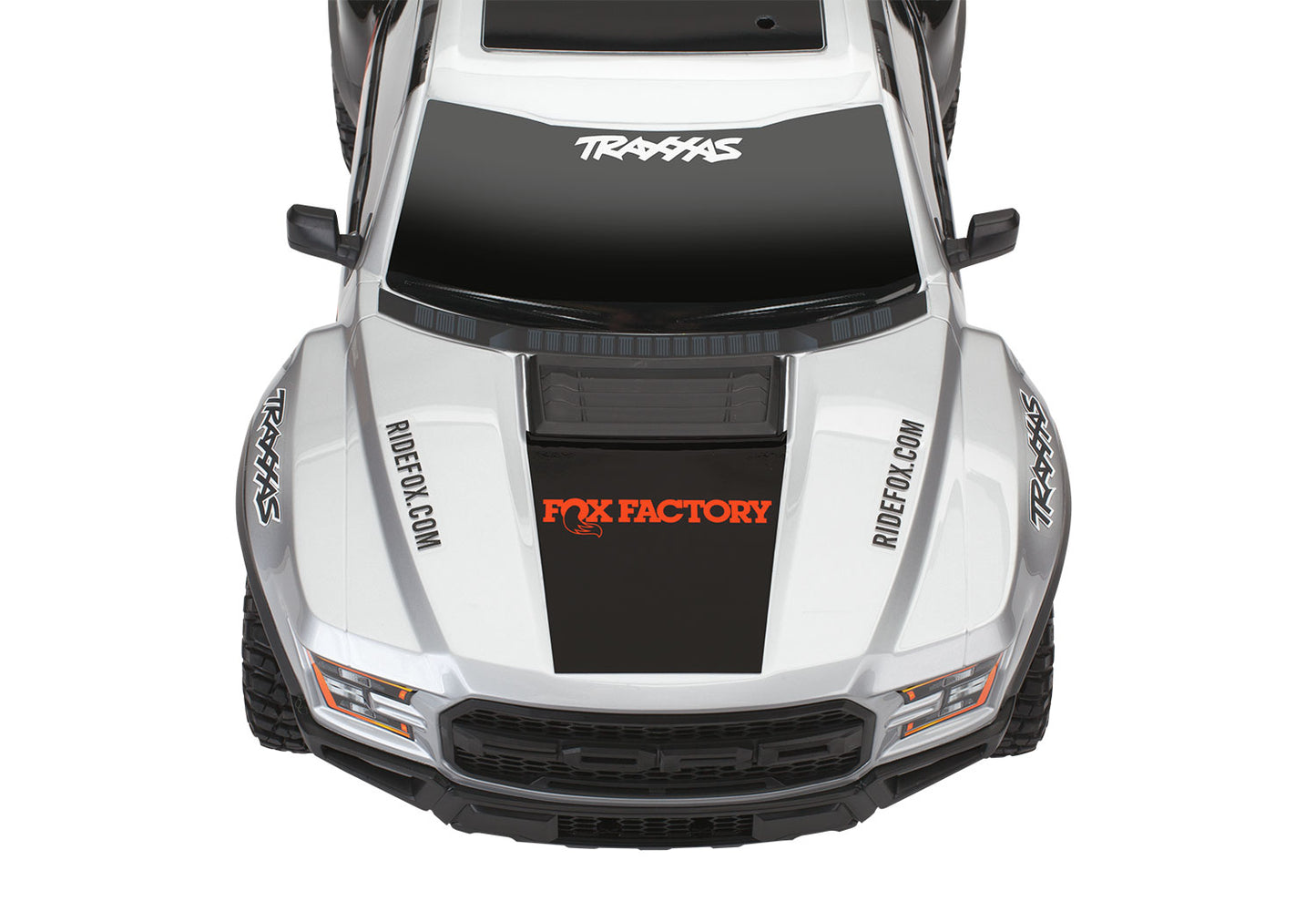

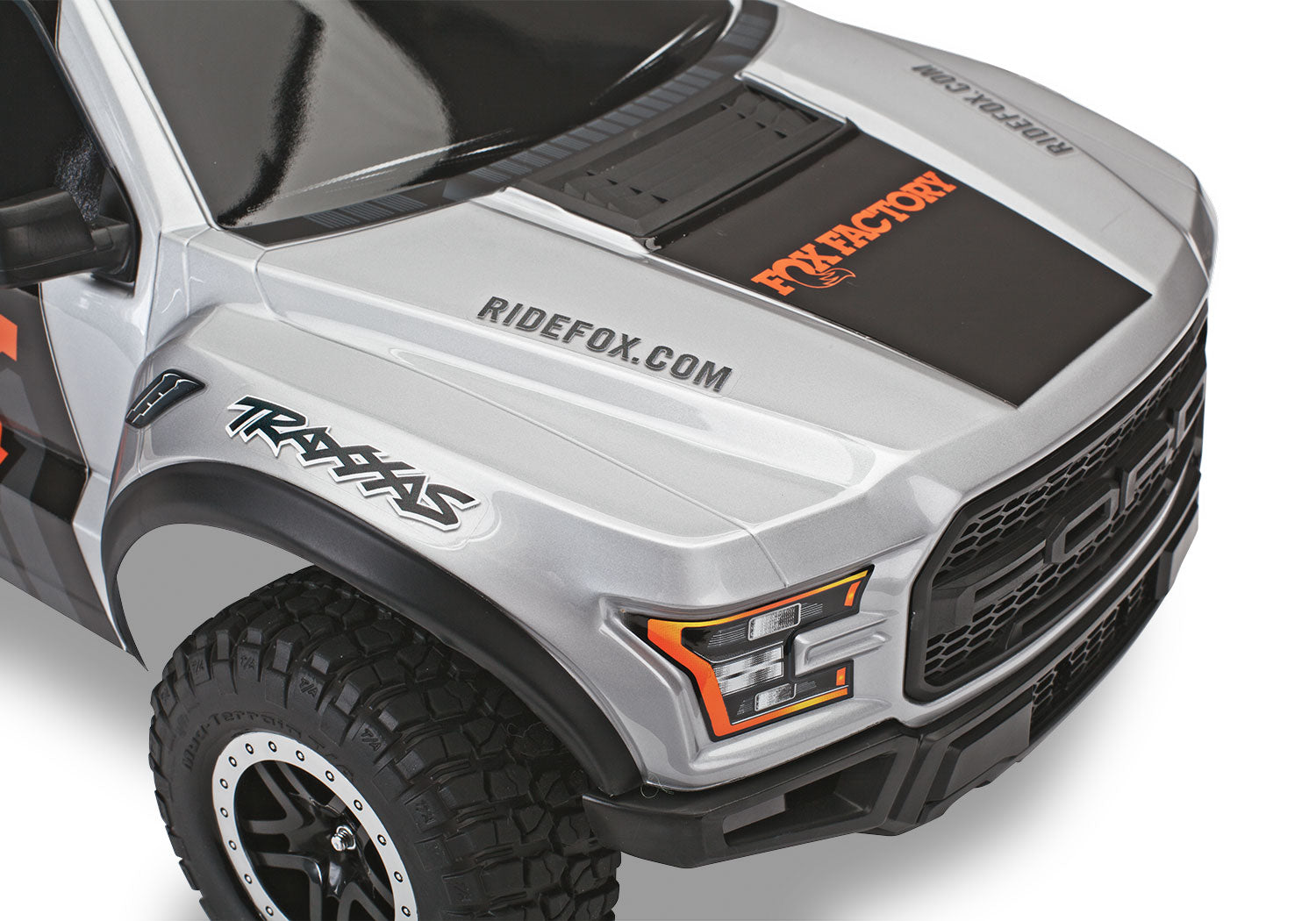

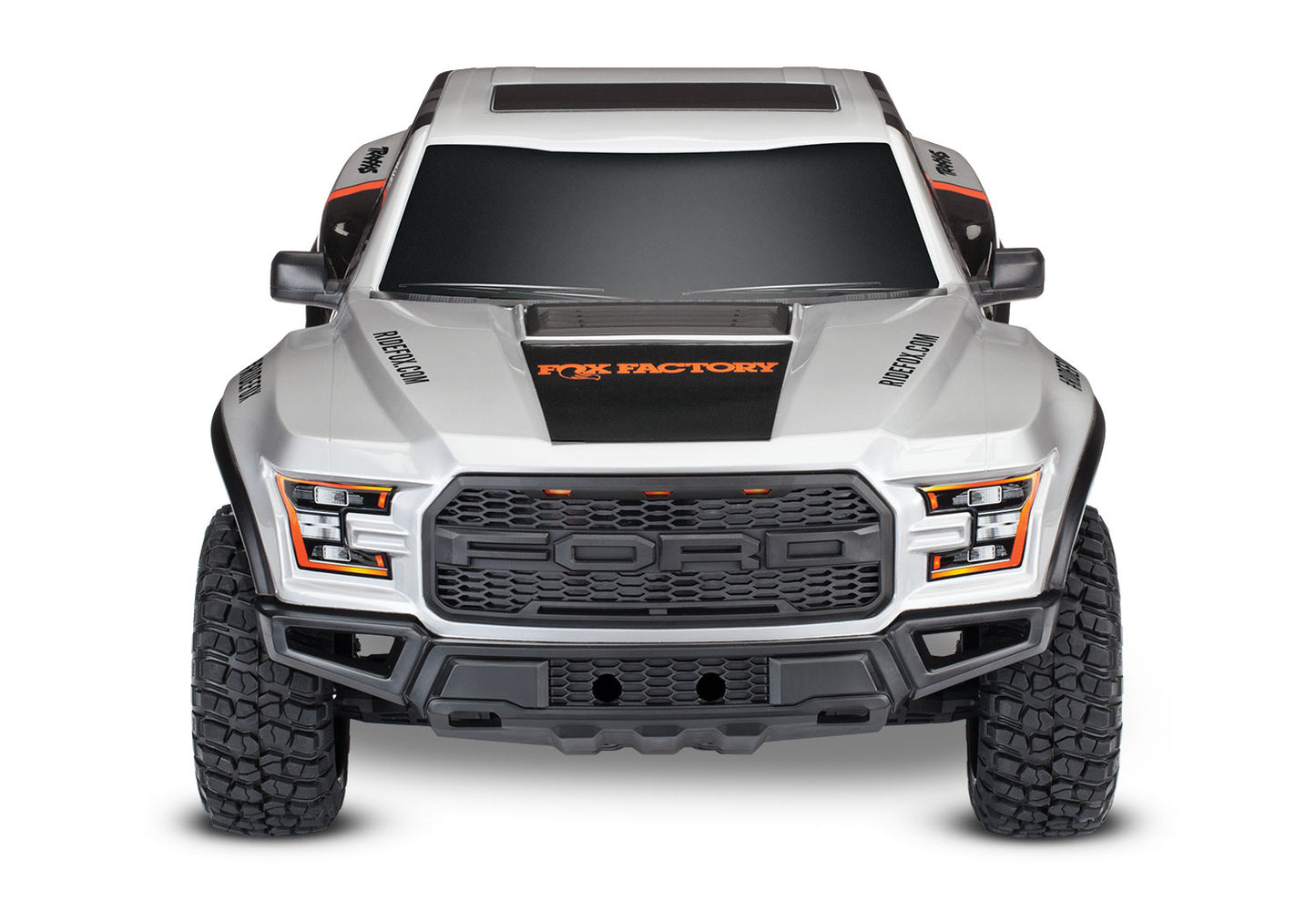

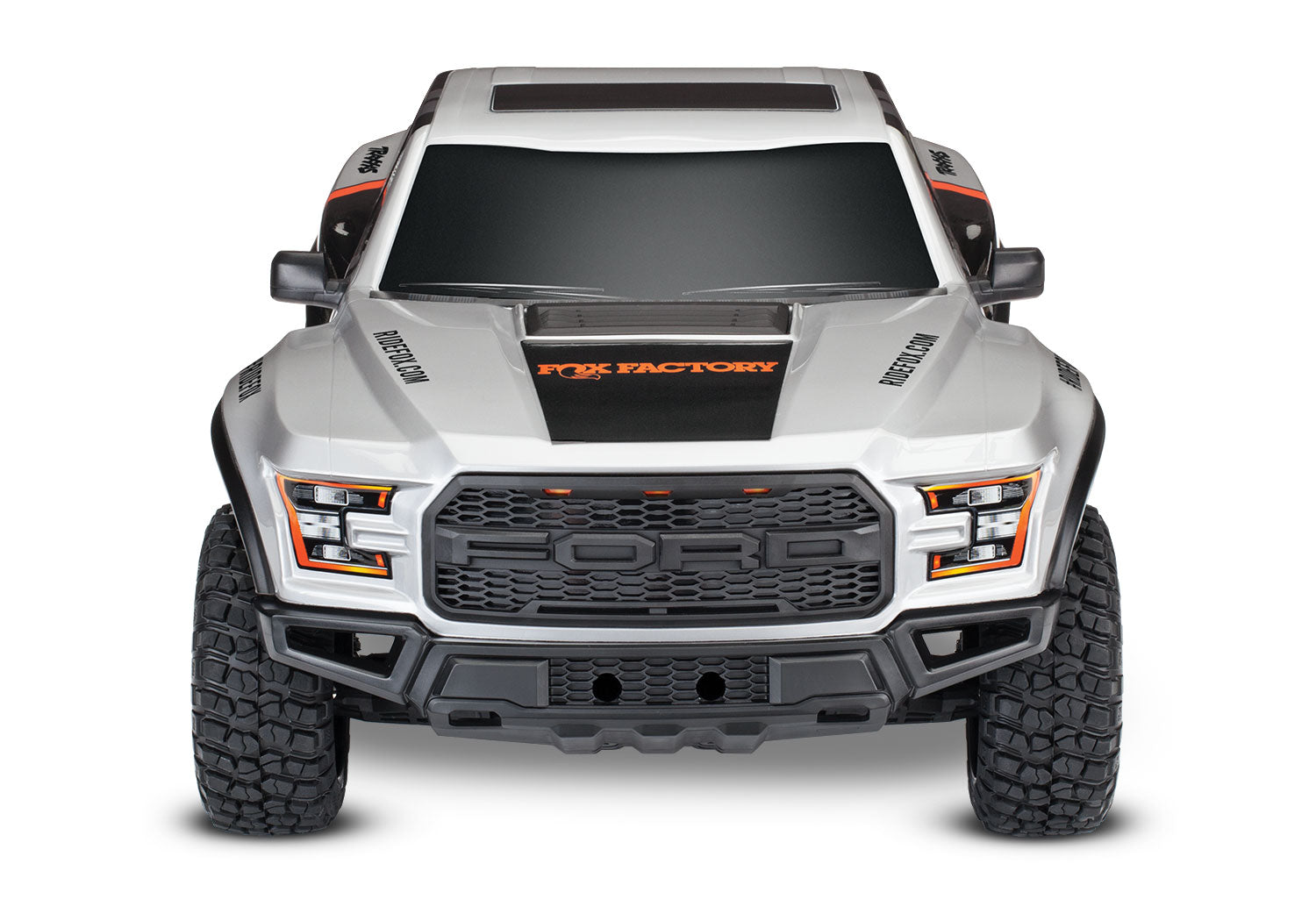

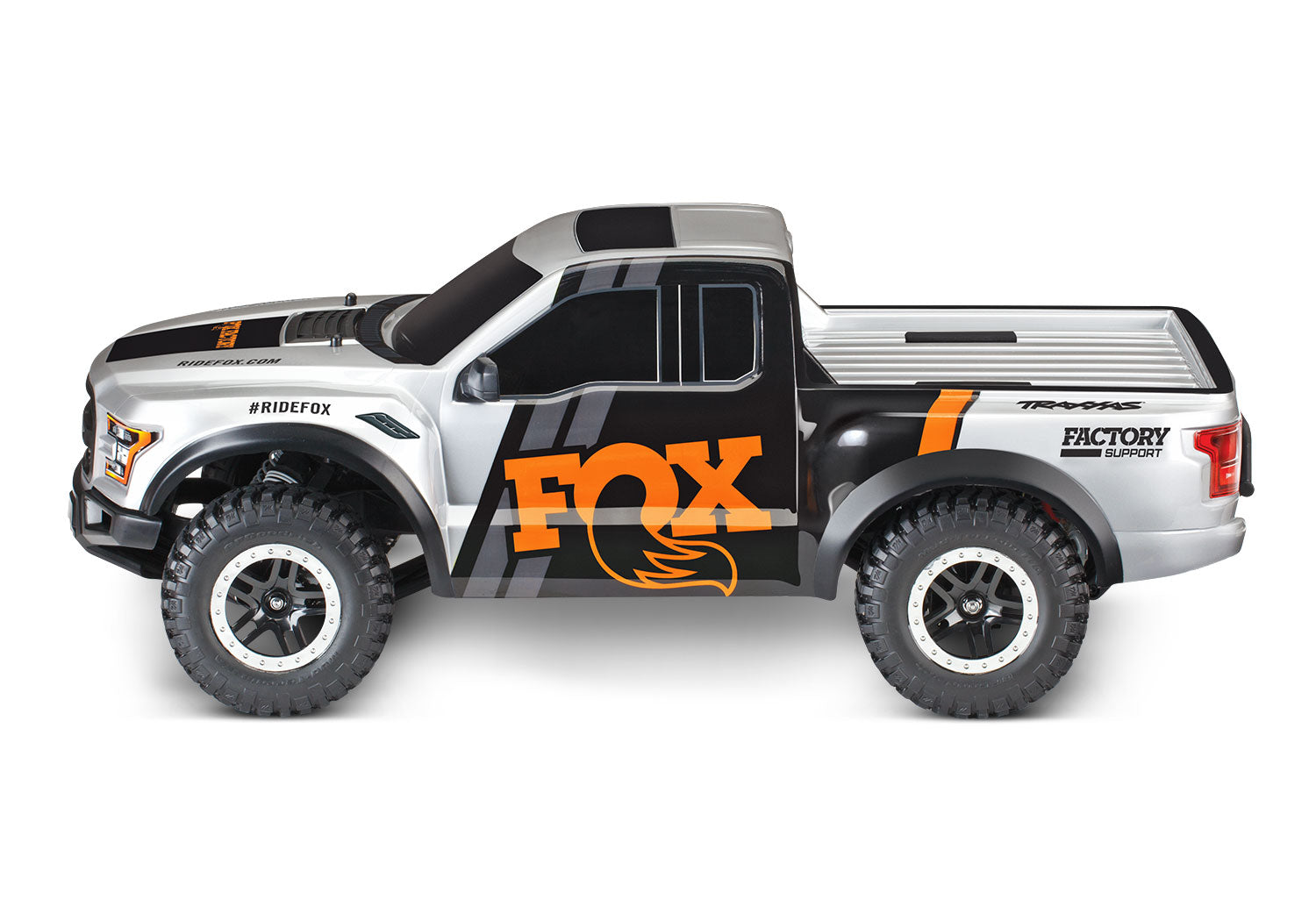

Clipless Ford F-150 Raptor Body

Raptor’s sleek clipless body comes fully detailed with an injection molded grille, front bumper, and body accessories to capture the full depth and detail of Ford’s original design. Raptor’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.

Truck Specs

Ford F-150 Raptor - Specs Side

Length:	22.36 inches (568 mm)
Front Track:	11.65 inches (296 mm)
Rear Track:	11.65 inches (296 mm)
Center Ground Clearance:	3.5 inches (89 mm)
Weight (no battery):	4.76 pounds (2.16 kg)
Height (overall):	8.43 inches (214 mm)
Wheelbase:	13.2 inches (335 mm)
Shock Length (front):	3.45 inches (88 mm) - Long
Shock Length (rear):	3.98 inches (101 mm) - XX-Long
Tires:	Replica BFGoodrich^® Mud Terrain T/A^® Tires
Tire Diameter:	4.3″ x 1.7″ inches (109 mm x 43 mm)
Wheels (front/rear):	Split-Spoke SCT wheels
Wheel Diameter:	2.2 inches (56 mm) (outer) 3.0 inches (76 mm) (inner)
Speed Control:	BL-2s^™ electronic speed control
Motor (electric):	BL-2s^™ 3300 Kv sensorless brushless
Overall Drive Ratio:	12.58:1
Differential Type:	Planetary
Gear Pitch:	48
Chassis Structure/Material:	Composite tub
Drive System:	2WD
Steering:	Dual-bellcrank with integrated servo saver
Radio System:	TQ^™ 2.4 GHz (2-channel)
Servo:	Waterproof digital 2075 servo (125 oz-in torque)
Skill Level:	1
Battery Compartment (L/W/H):	165 mm (6.49″) x 50 mm (1.95″) x 23/25 mm (1.02″/0.90″)
Required Batteries:	4 “AA” (transmitter), Vehicle

FEATURES:

Licensed Ford^® F-150^® Raptor^® Clipless Body
- Injection molded grille, side mirrors, and hood vent
- Chassis nerf bars absorb impact and support the body
- Tough front and rear replica bumpers
- Holds tight for intense action
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
Extreme Heavy Duty Upgrade Components
- Strengthened C-hubs, axle carriers, and steering blocks
- Extreme heavy duty driveshafts
BL-2s^™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
  - Sport Mode - Forward / Brake / Reverse
  - Race Mode - Forward / Brake
  - Training Mode^™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set^® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)

3300 Kv Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv
TQ^™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control

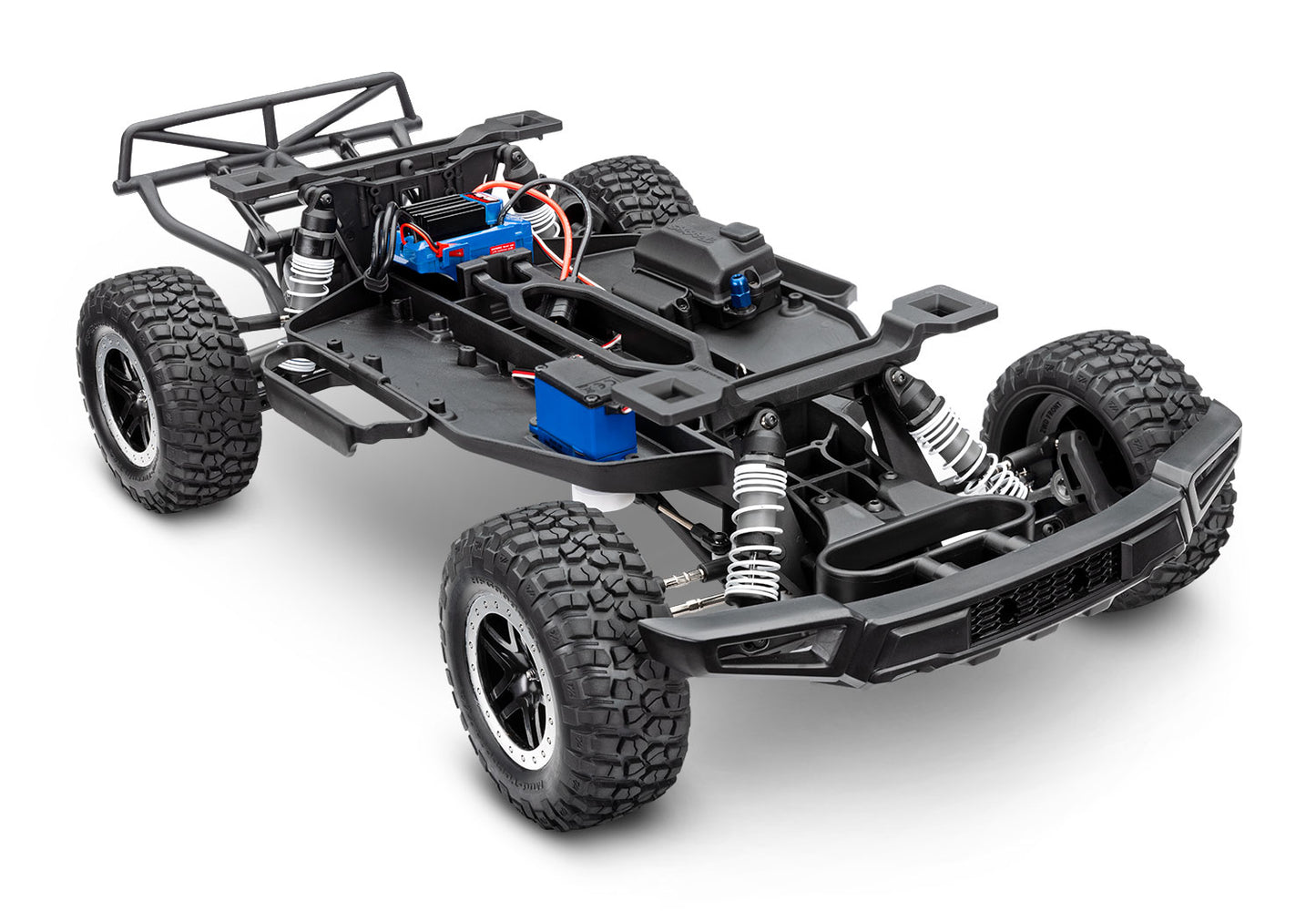

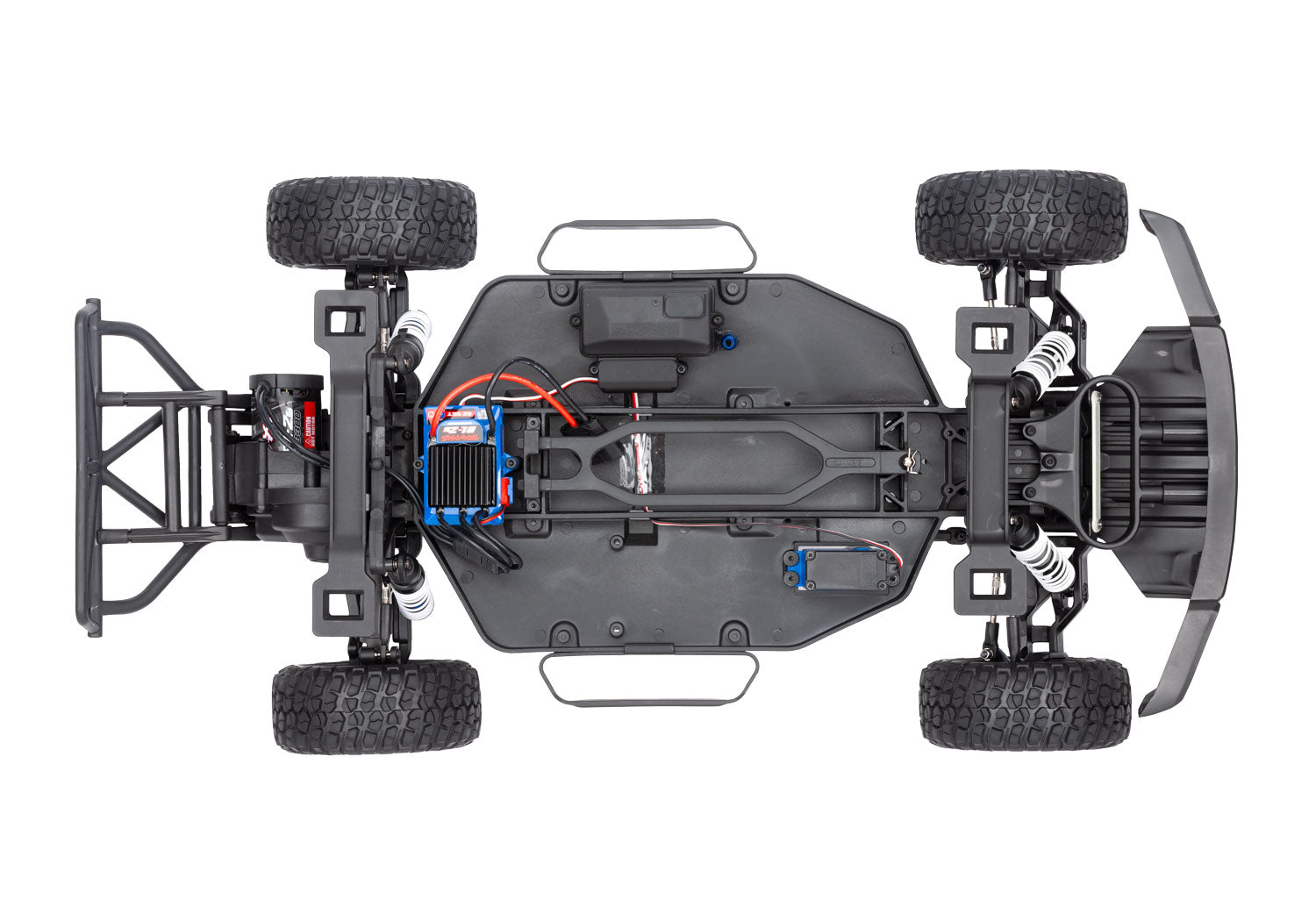

Tough Fiber-Composite Monocoque Chassis
- Long 13.2″ wheelbase for increased stability
- Over 3.5″ of ground clearance
Easy Access Battery Compartment
- Adjustable battery hold down
- Accepts 6- and 7-cell flat packs and 7-cell hump packs
- Accepts many 2s LiPo battery configurations
Suspension
- Heavy-duty suspension arms
- Adjustable steel turnbuckles
- Oil-filled Ultra Shocks^™
- White powder-coated springs

Steering
- Chassis-mounted 2075 servo
- High-performance bellcrank system minimizes bump steer
Transmission
- Velineon-ready Magnum 272^™ metal-gear transmission
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission
- External gear cover with easy clutch access
Drivetrain
- Extreme heavy-duty driveshafts
- Torque Control^™ slipper clutch
Wheels and Tires
- Split-Spoke SCT wheels
  - 2.2″ outer diameter, 3″ inner diameter
- Replica BFGoodrich^® Mud Terrain T/A^® Tires
Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating
