82246-4 Bronco Ranger XLT 1/10 Scale And Trail Crawler

$499.95

1/10 SIZE

Trail Speed TOP SPEED

Brushed Motor POWER

Battery & Charger SOLD SEPARATELY

Just 2 left. Order soon!

Color

SunSet

Red

Product Variants

Shop by location

Choose location for pickup only

Product description

Off-Road Performance with Classic Bronco Style

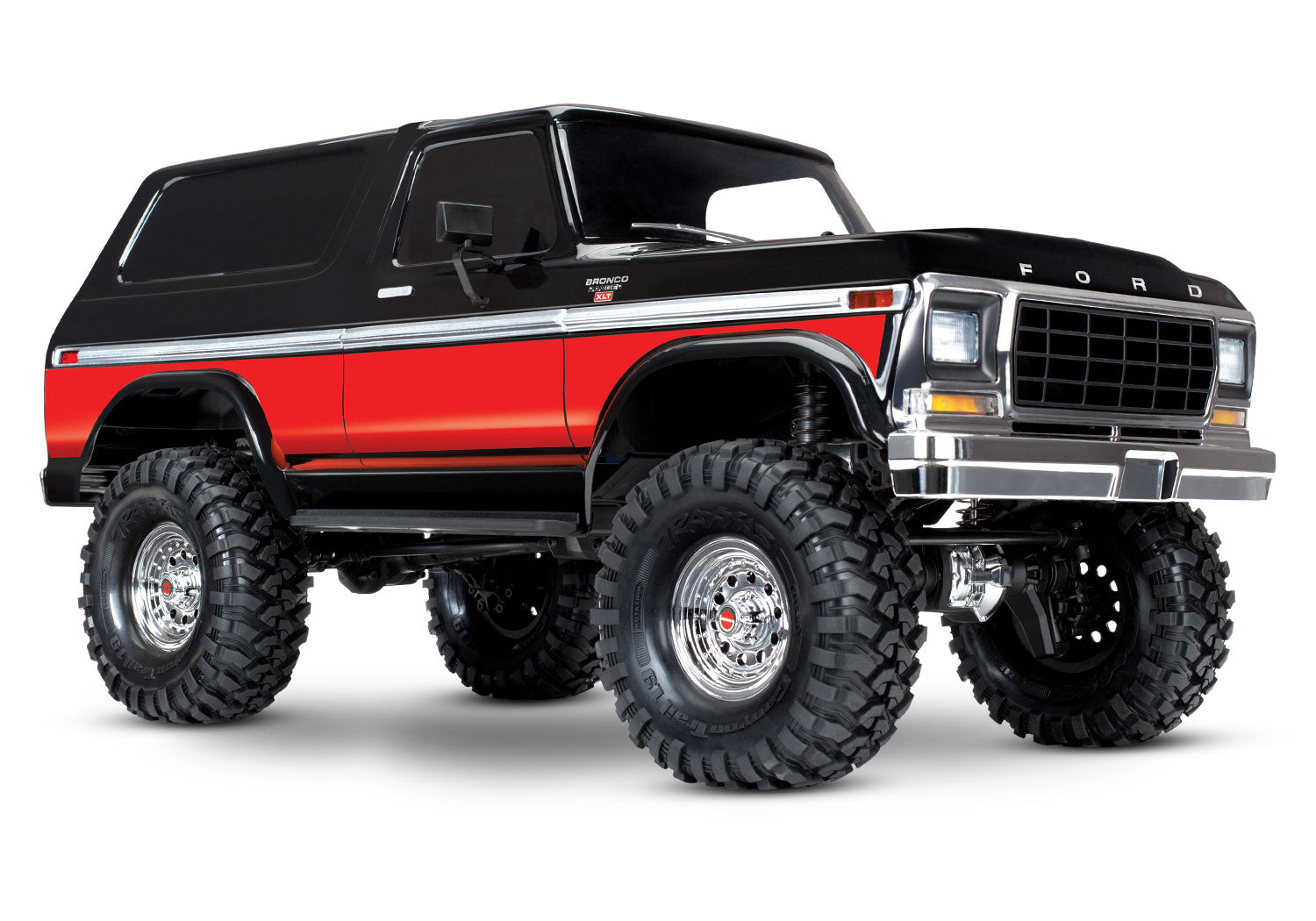

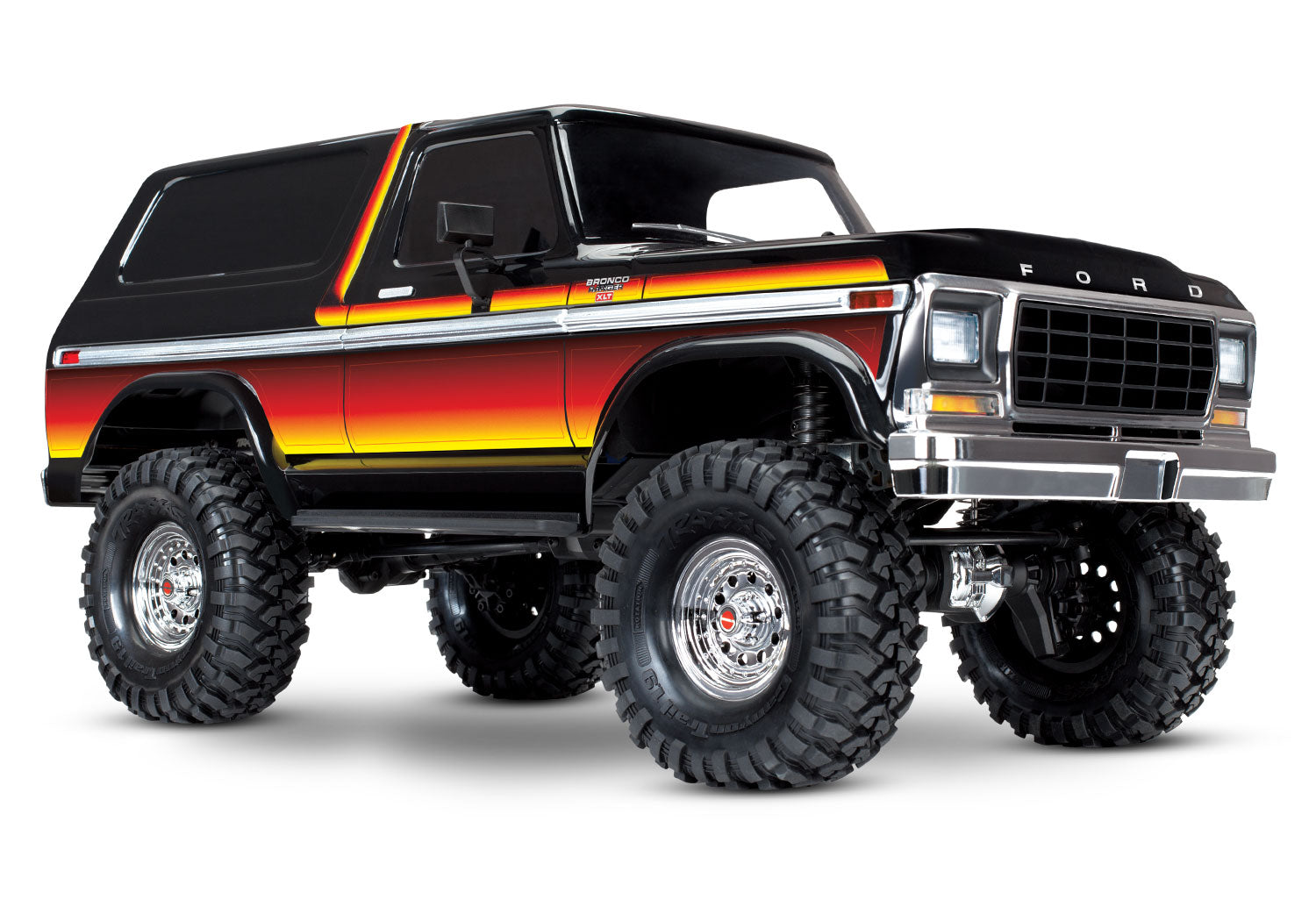

Originally introduced in 1966 as a compact 4X4 SUV, the Ford® Bronco grew into a full-size truck by the late 1970s, earning its reputation as a rugged off-road icon. Traxxas honors the legacy of the 1979 Ford Bronco with this meticulously detailed, faithful reproduction mounted on the high-performance TRX-4® chassis. Featuring chrome wheels and bumpers, along with stunning Sunset or red graphics, the TRX-4 perfectly captures the Bronco’s classic style while delivering the unmatched toughness and cutting-edge technology that only Traxxas can provide.

New Clipless Body Mounting

New Clipless Body Mounting

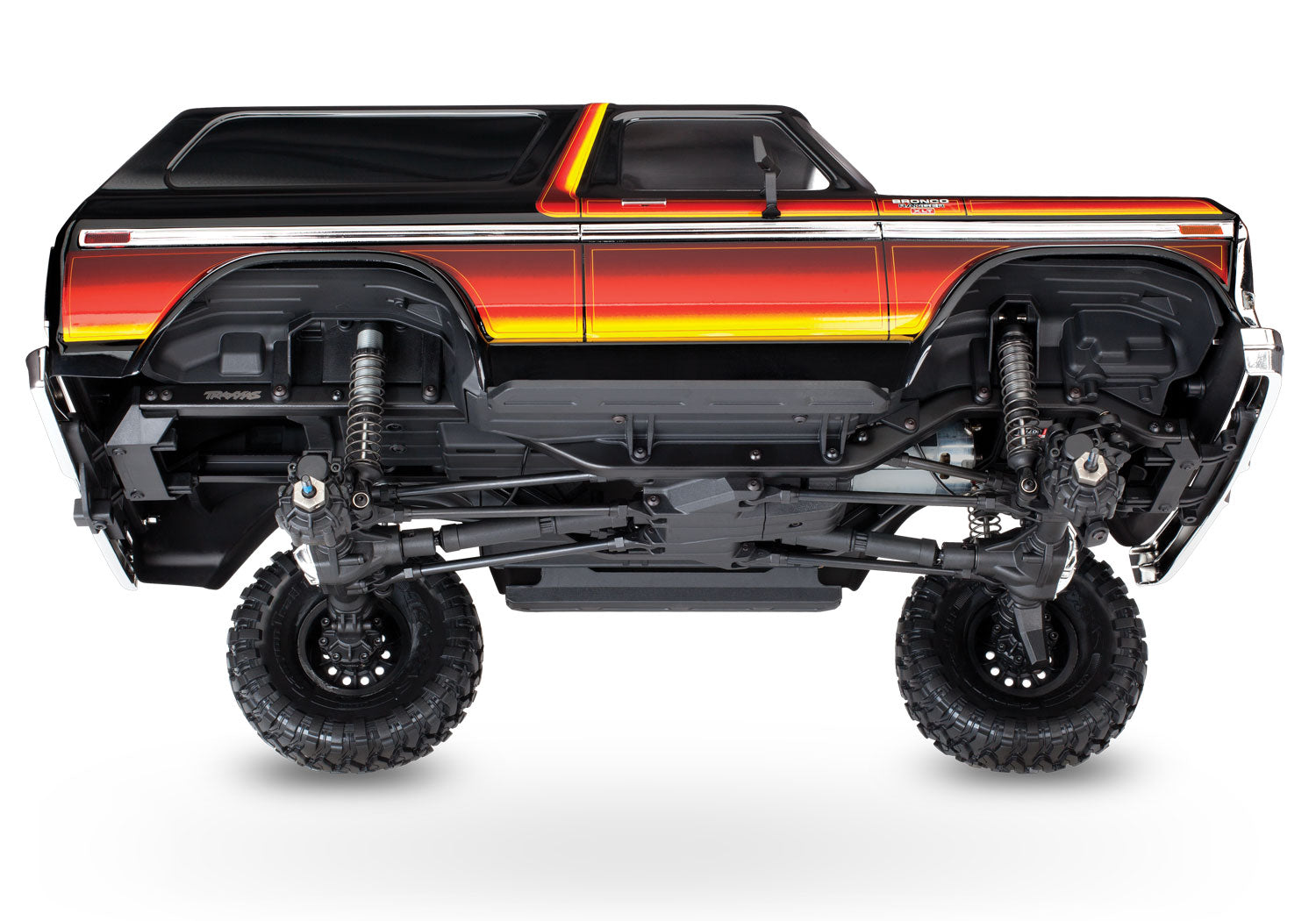

The TRX-4 1979 Ford Bronco introduces an innovative clipless body mounting system that combines sleek, flowing lines with secure latching convenience. The hidden latches stay firmly in place on the trail, even during the most intense action, yet release in seconds for easy access to the chassis.

Specs:

Length:	20.57 inches (523 mm)
Front Track:	9.78 inches (249 mm)
Rear Track:	9.78 inches (249 mm)
Ground Clearance:	3.14 inches (80 mm)
Weight:	6.42 pounds (2.91 kg)
Height:	10.47 inches (266 mm)
Wheelbase:	12.28 inches (312 mm)
Approach Angle:	63.82°
Departure Angle:	43.22°
Breakover Angle:	59°
Front Shock Length:	3.54 inches (90 mm)
Rear Shock Length:	3.54 inches (90 mm)
Front Wheels:	1.9″ x 1.02″ (49 x 26 mm)
Rear Wheels:	1.9″ x 1.02″ (49 x 26 mm)
Front Tires:	4.64″ x 1.89″ (118 x 48 mm)
Rear Tires:	4.64″ x 1.89″ (118 x 48 mm)
Hex Size:	12 mm
Speed Control:	XL-5^™ HV
Motor (electric):	21T reverse rotation
Transmission:	2-speed high/low, remote shifting
Gear Pitch:	32 pitch
Differential Type:	4 gear, remote locking
Chassis Structure / Material:	Steel ladder frame with Nylon composite crossmembers
Brake Type:	Electronic “Hill Hold”
Drive System:	Shaft driven 4WD
Steering:	Chassis mounted servo
Servo:	2075X metal gear
Transmitter:	TQi^™ 2.4 GHz 4-channel transmitter
Receiver:	6533
Skill Level:	1
Battery Tray:	159 L x 47 W x 23/26 mm H

Features:

Officially Licensed 1979 Ford^® Bronco Body
- Scale details: grille, chrome bumpers, side mirrors, chrome side trim, and wipers
- Clear front and side windows
- Authentic decal sheet
- Full Nylon composite wheel wells and floor pans
- Additional scale accessories sold separately
Trail-tuned XL-5^™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
  - Sport Mode — forward / brake / reverse
  - Race Mode — forward / brake / no reverse
  - Training Mode^™ — 50% forward / 100% brake / 50% reverse (patented)
  - Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
  - Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set^® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3s LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
Motor
- Powerful Titan^® 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh

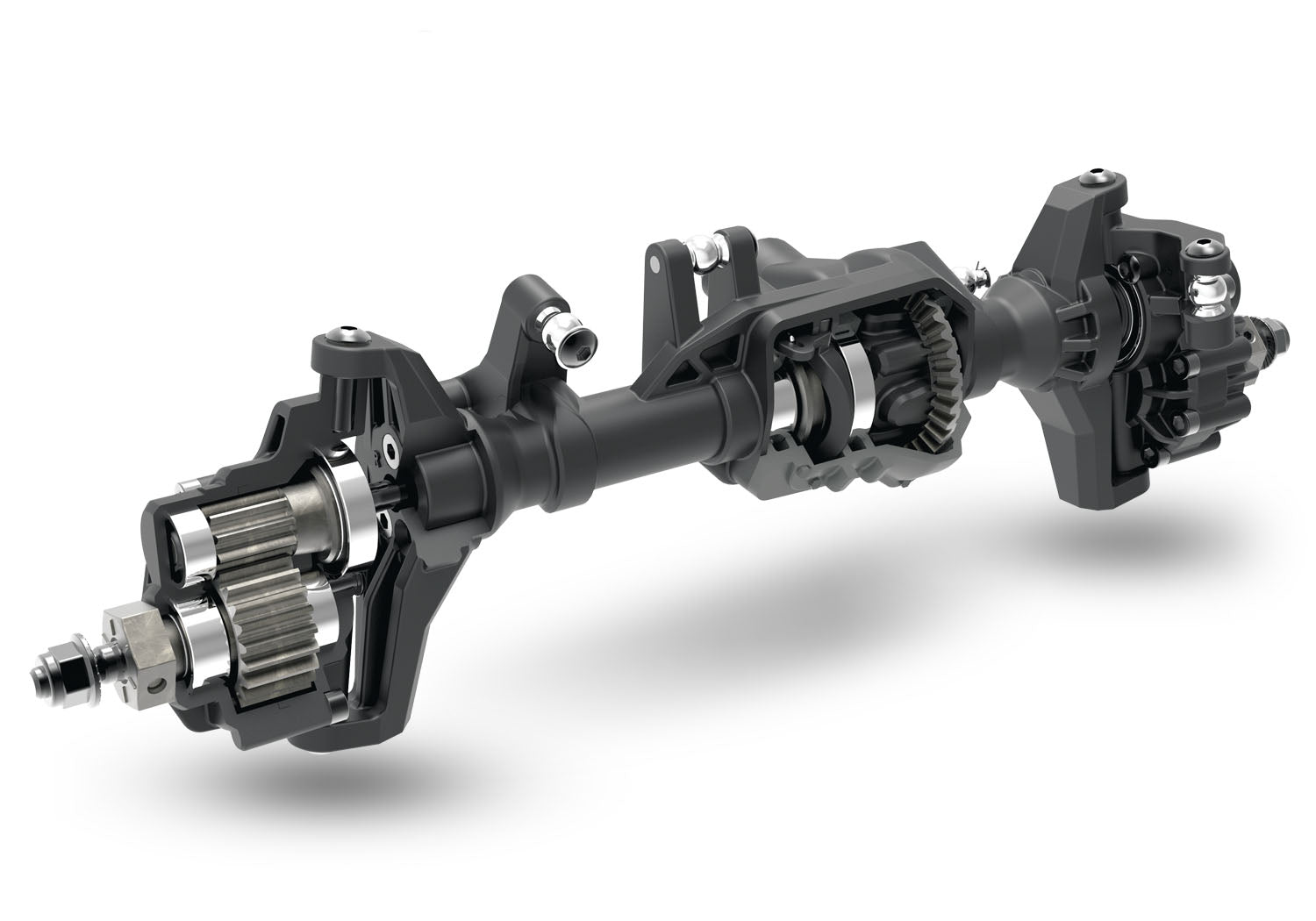

Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts

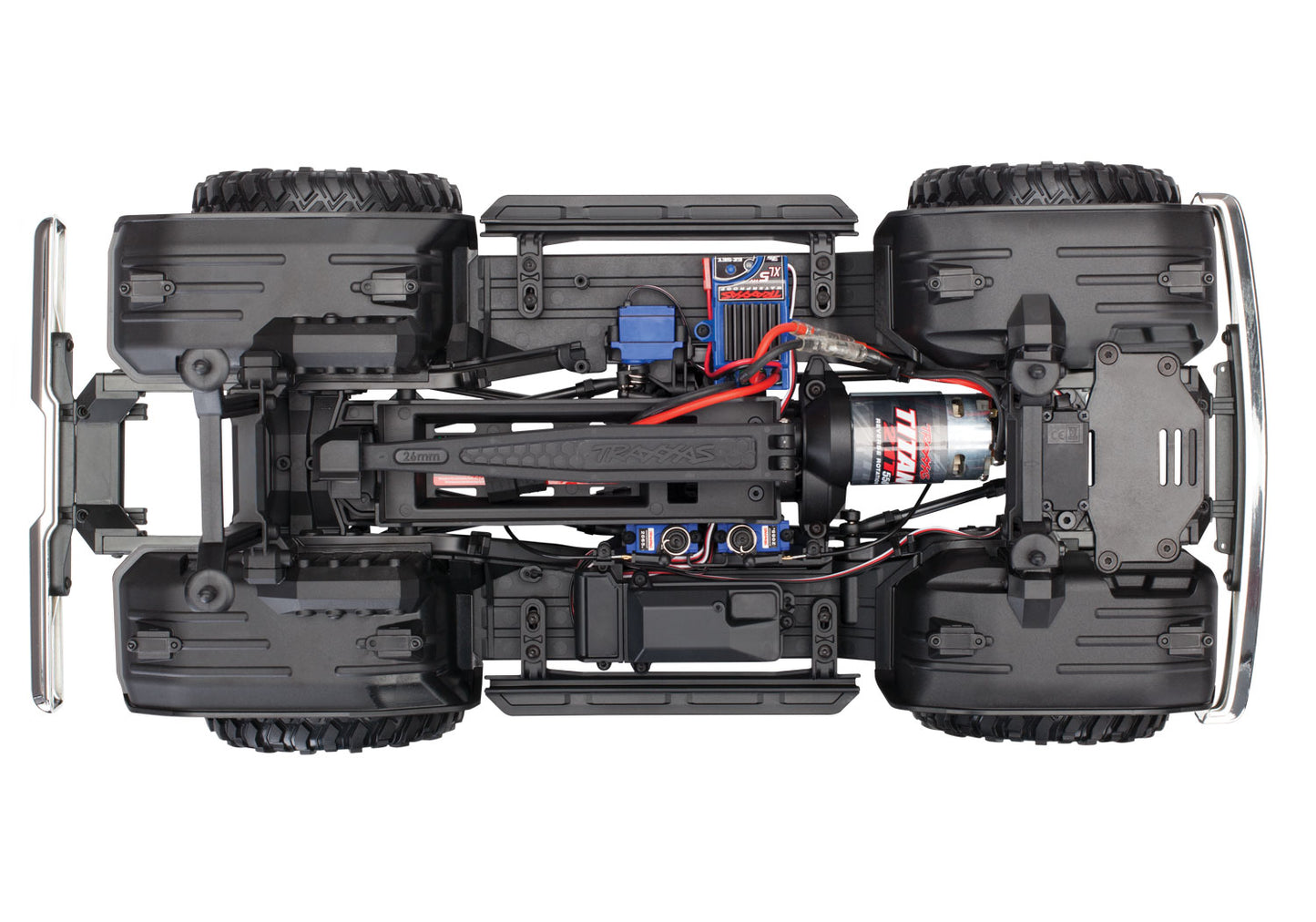

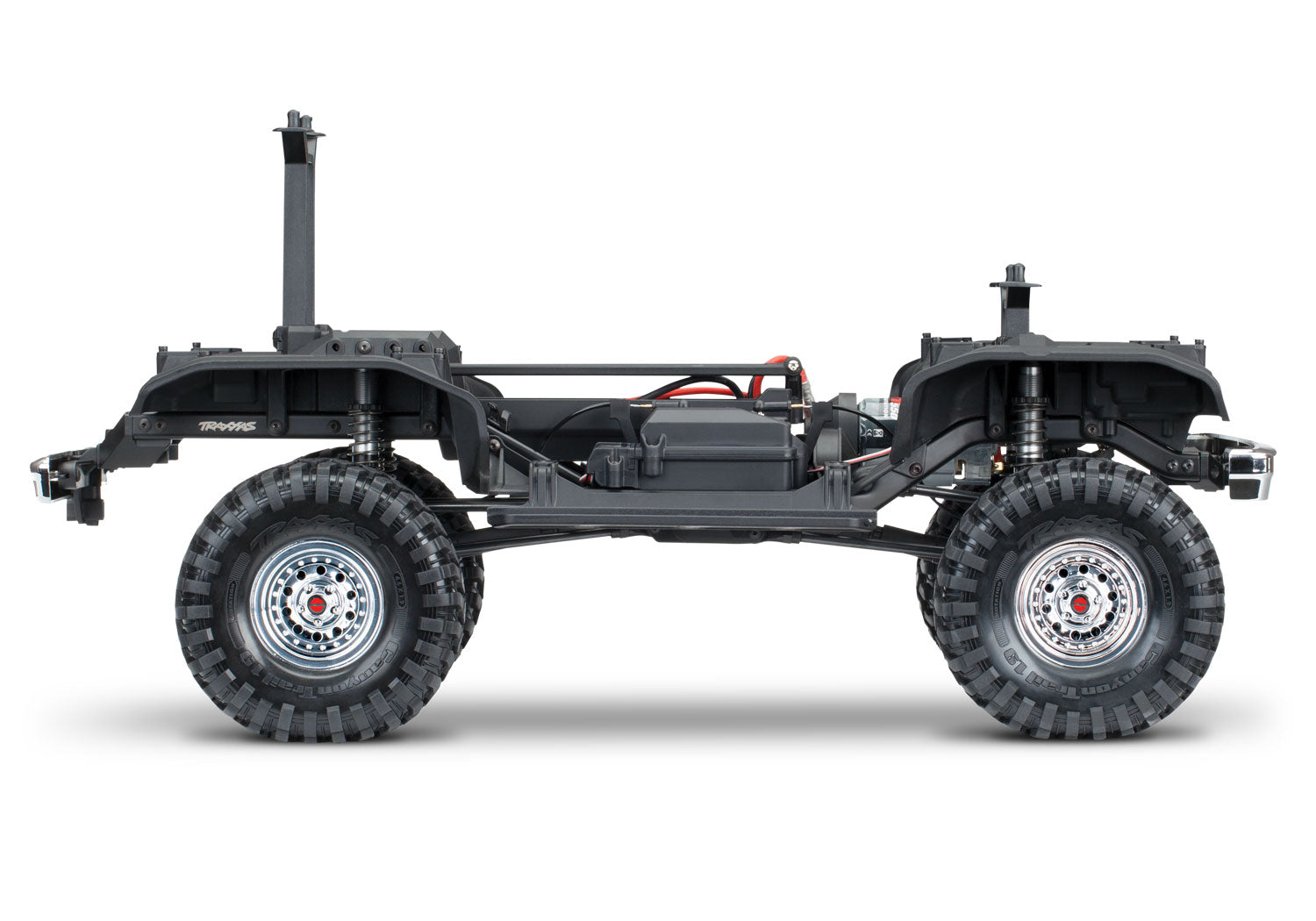

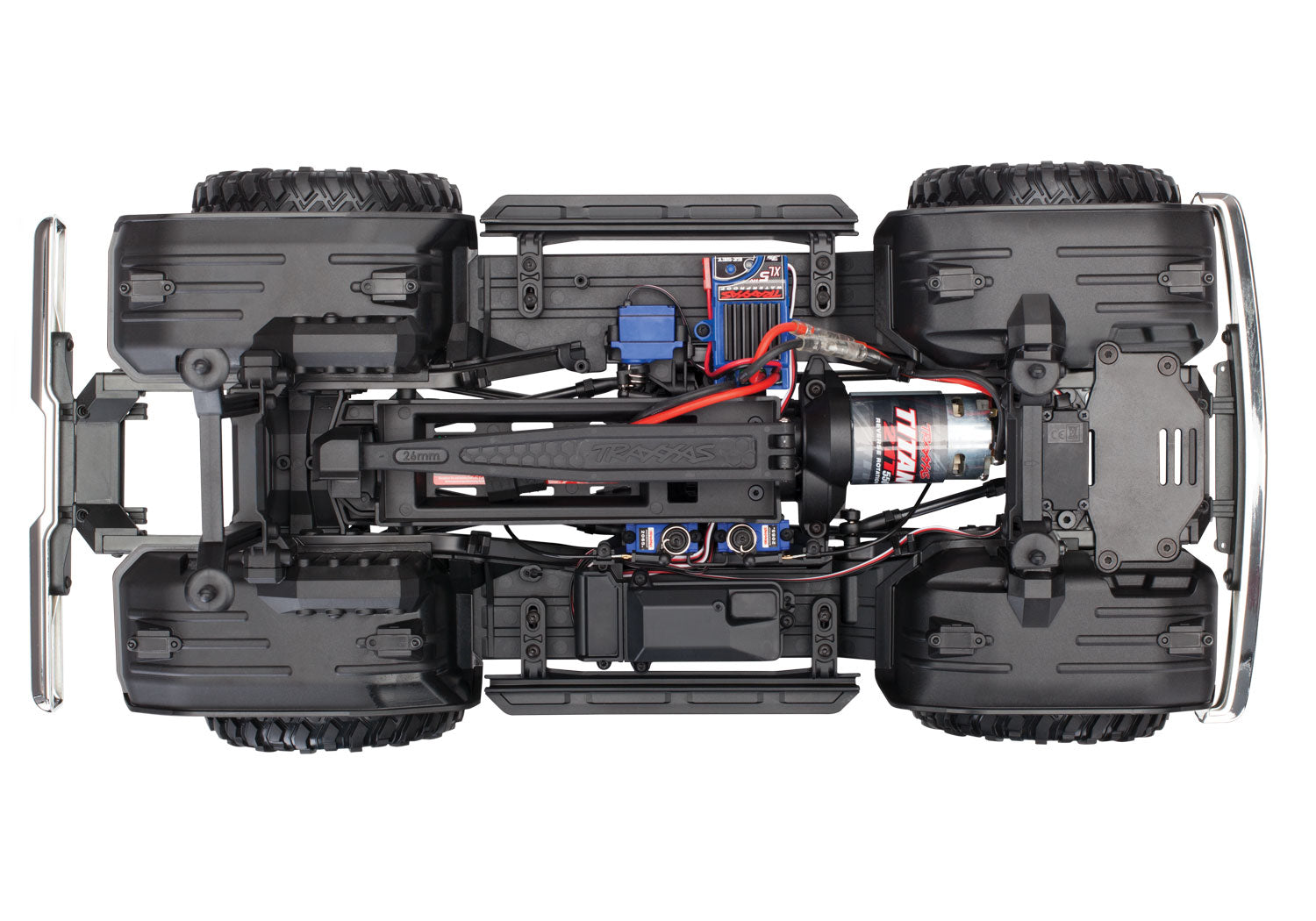

Rigid Steel Frame
- 1.5mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300, 312, 324, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

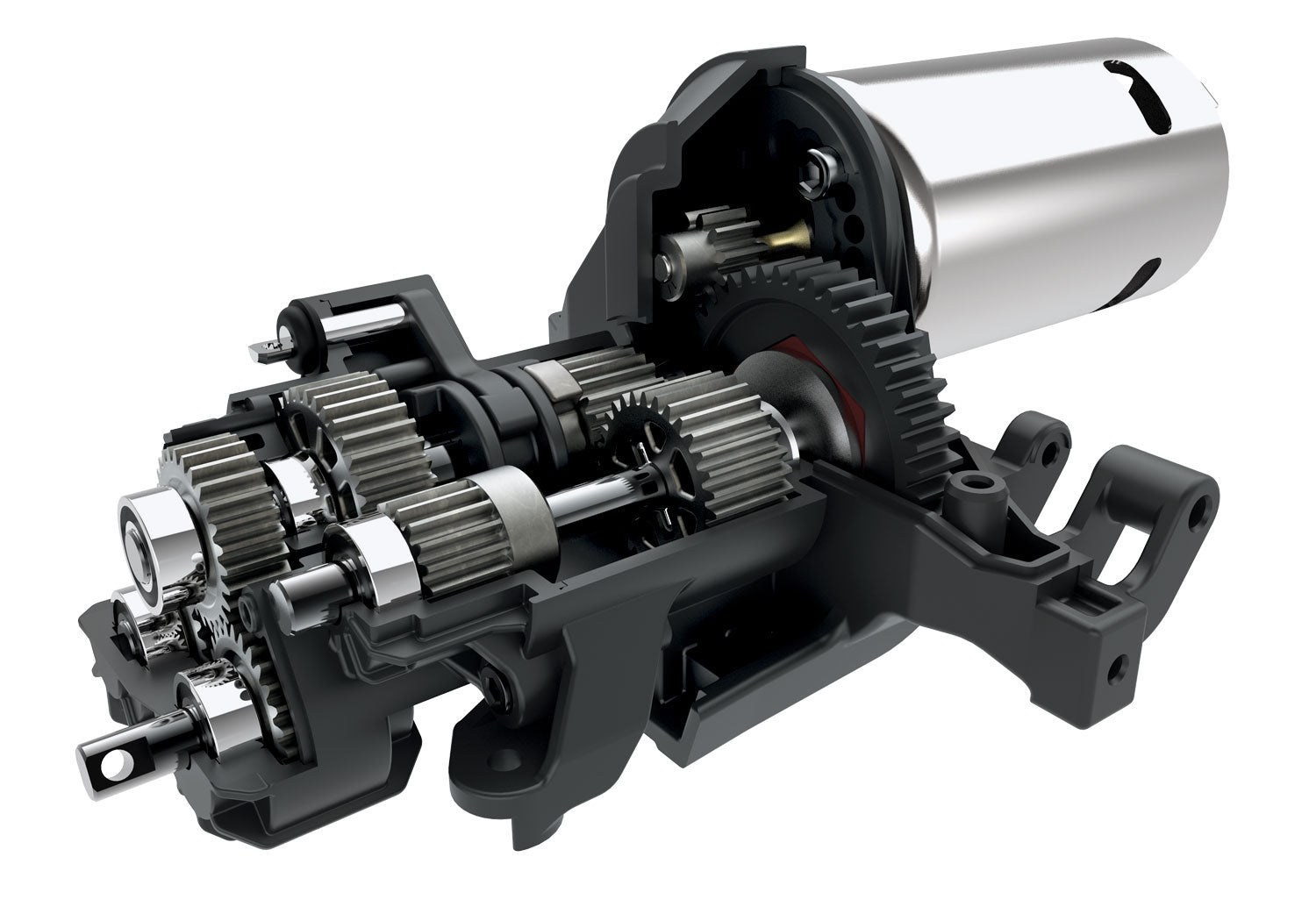

Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing

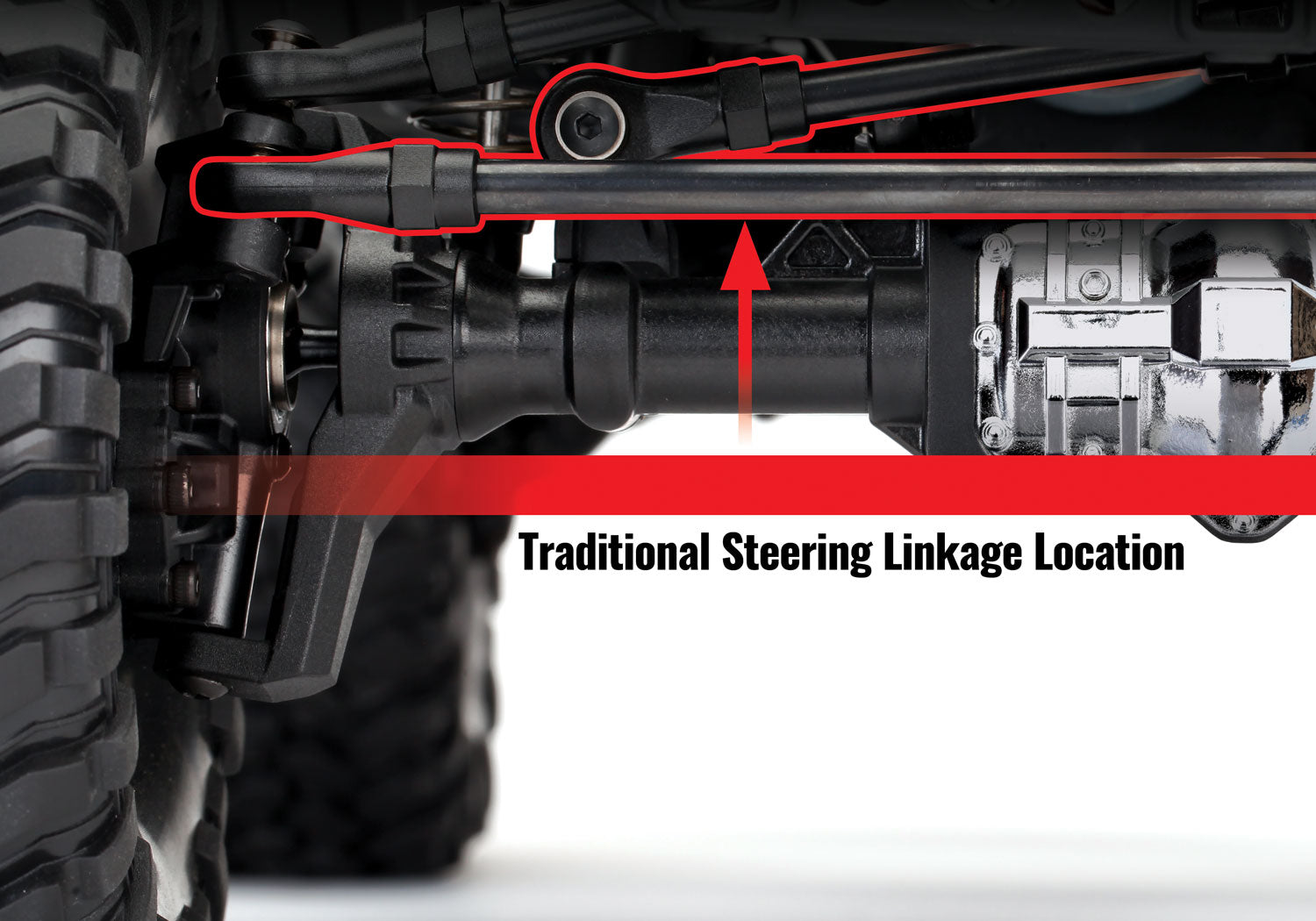

Steering

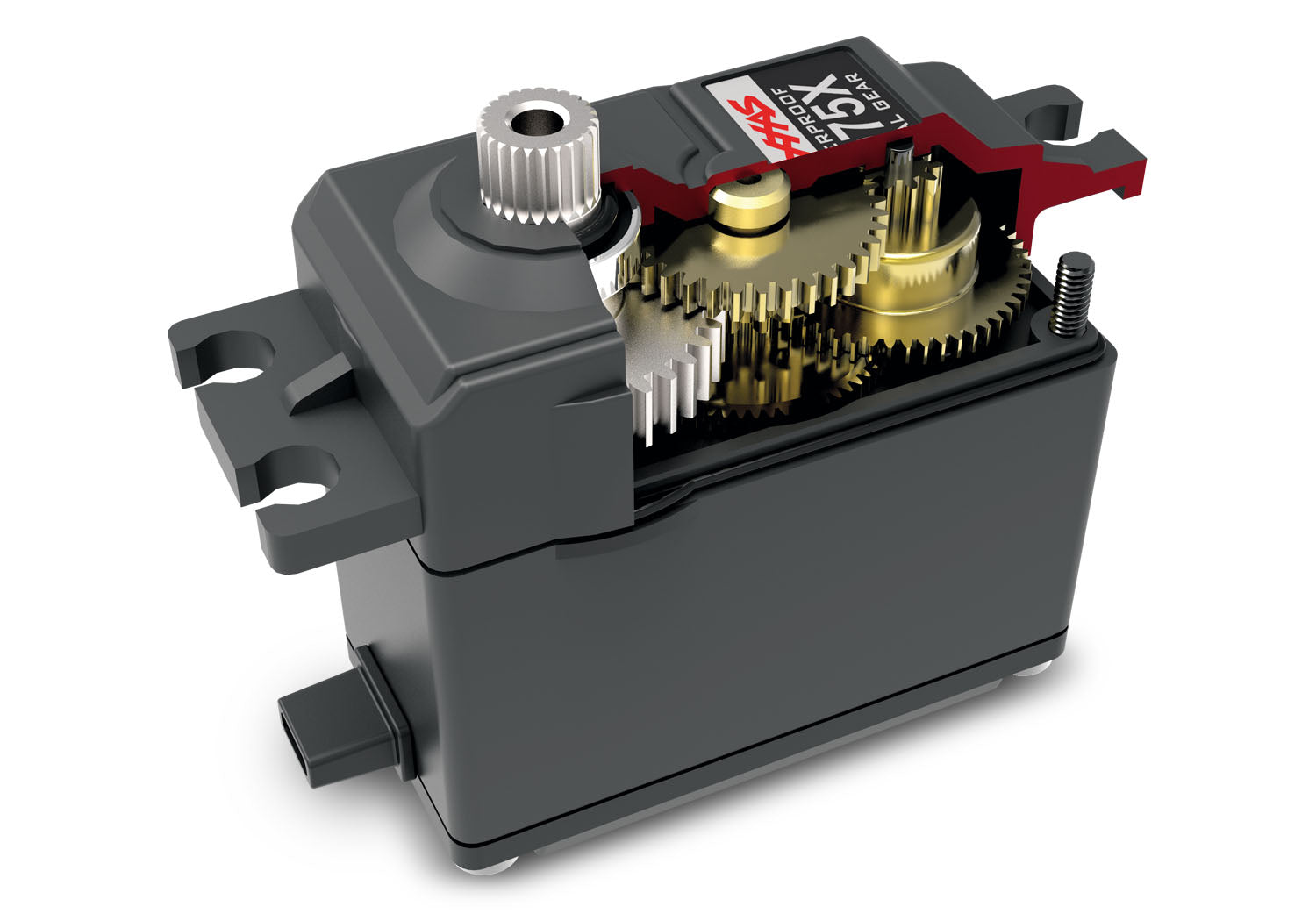

- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer

Suspension
- Front — 3 link with panhard
- Rear — Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends

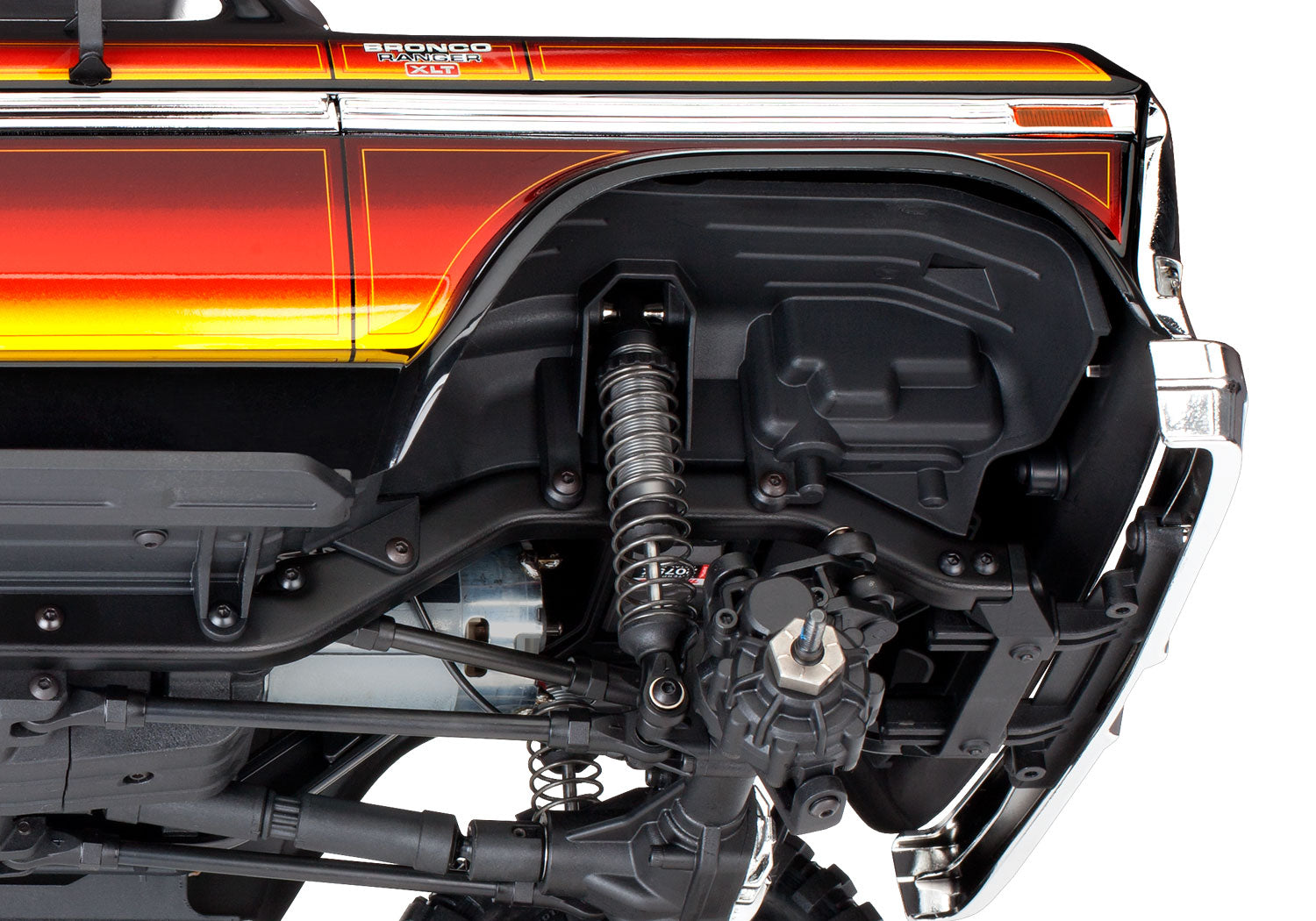

Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
Wheels and Tires
- Replica chrome wheels with hub inserts
- Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
Transmitter
- TQi^™ 2.4 GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready 6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
Patented O-ring sealed watertight receiver box keeps the micro receiver dry
Sealed Ball Bearings
Hex hardware with rust-resistant black oxide coating

What’s In The Box:

TRX-4 Ready-To-Race® model
XL-5 HV waterproof electronic speed control
Titan 21T reverse rotation motor
TQi 2.4 GHz radio system with cruise control
High-quality maintenance tools

What You’ll Need:

Batteries
The TRX-4 is compatible with a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.
Charger
For fast and easy charging, the Traxxas EZ-Peak® Live charger (model 2971) is recommended.
AA Alkaline Batteries
Four AA alkaline batteries are required for the transmitter.
