VPS09025 Vanquish Products VS4-10 Phoenix Portal RTR -Toyo Tires Edition

The Vanquish VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler blends timeless off-road truck styling with advanced engineering to deliver exceptional trail performance. Built for durability and precision, the Phoenix Portal RTR features portal axles for increased ground clearance, helping it confidently tackle rocks, roots, and technical terrain. Its rugged construction and high-quality components ensure long-lasting reliability, while the thoughtfully designed chassis provides superior balance, articulation, and control.

Perfect for both experienced RC enthusiasts and newcomers alike, this ready-to-run crawler offers an ideal mix of scale realism and serious off-road capability. Whether you're navigating challenging rock gardens or exploring backcountry trails, the Vanquish VS4-10 Phoenix Portal RTR stands out as a dependable and high-performing choice that’s ready for adventure right out of the box.

Features:

• 6.5% overdrive built into the VFD Spec transmission
• Forward-mounted motor for improved weight distribution

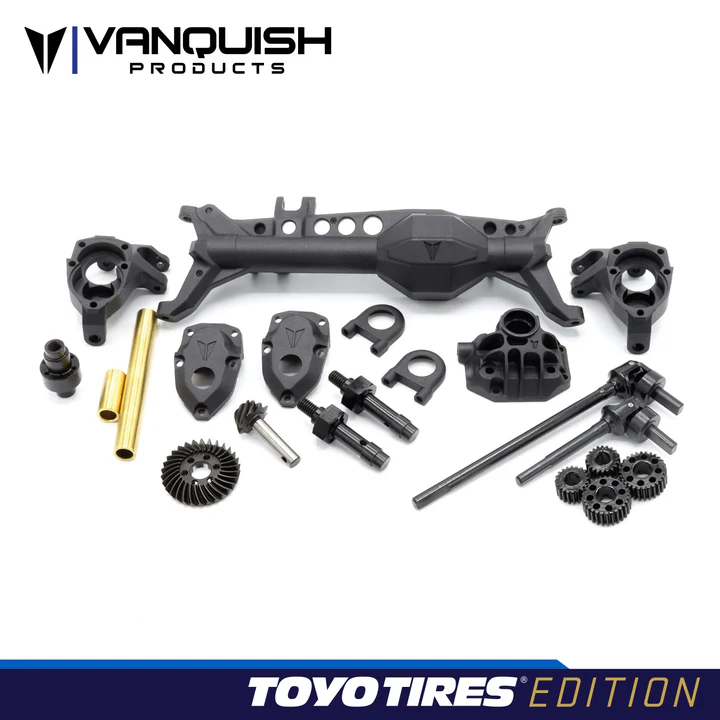

• Chromoly universal axle shafts with 49° steering angle
• Brass inner axle tube reinforcements for added strength and low center of gravity
• Full metal internal transmission gears for durability under load
• High-pinion hypoid machined gear design for improved gear mesh and clearance
• CV-style driveshaft joints for smooth articulation and reduced torque twist
• Hidden body clip system with quick-access hinged front design
• High-clearance bumpers and rock sliders to maximize obstacle clearance
• Double shear shock mounts for increased suspension strength and stability

SPECS:

1/10TH SCALE

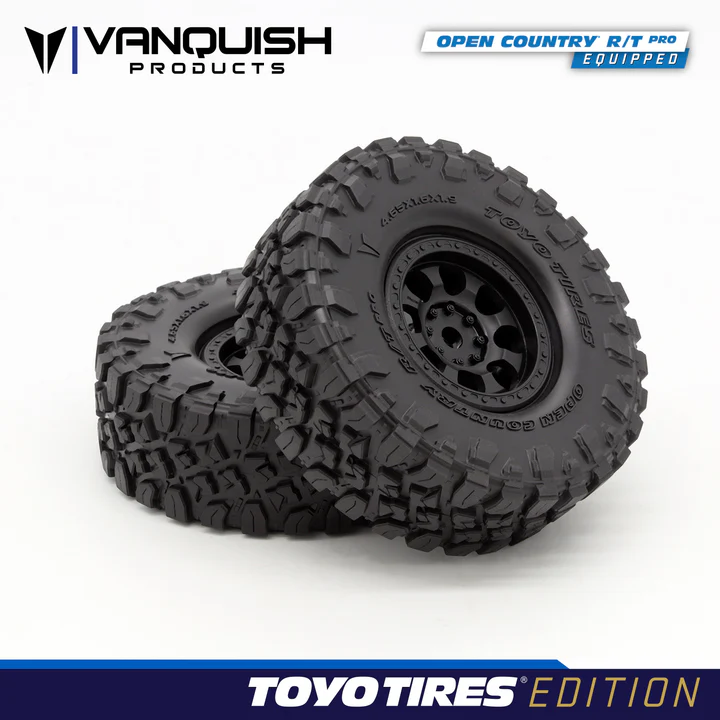

TOYO TIRES OPEN COUNTRY R/T PRO WHITE COMPOUND 4.65”X 1.9” TIRES

5.25:1 AXLE GEAR RATIO

15T/52T PINION / SPUR

OVERALL WIDTH: 250MM (9.84”)

OVERALL HEIGHT: 250MM (9.84”)

WHEELBASE: 313MM (12.3”)

OVERALL FRONT RATIO (6.5% OD): 53.7

OVERALL REAR RATIO: 57.3

RTR WEIGHT (WITHOUT BATTERY): 6.3LBS (2.85KG)

FRONT AXLE WIDTH PIN TO PIN: 190MM (7.5”)

REAR AXLE WIDTH PIN TO PIN: 188MM (7.35”)

Includes:

• (1) VS4-10 Phoenix Portal 1/10 RTR Brushed Rock Crawler
• (1) Pre-Installed 3S Capable VE-1 ESC w/XT60 Connector
• (1) Pre-Installed VM-1 35T Brushed Motor
• (1) Pre-Installed VS-1 Metal Gear Servo
• (1) VT-1 4-Channel Transmitter
• Product Manual

Needed To Complete:

• (1) 2-3S LiPo or 6-Cell NiMH Battery w/XT60 Connector
• (1) Compatible Battery Charger
• (4) AA Batteries for Transmitter
