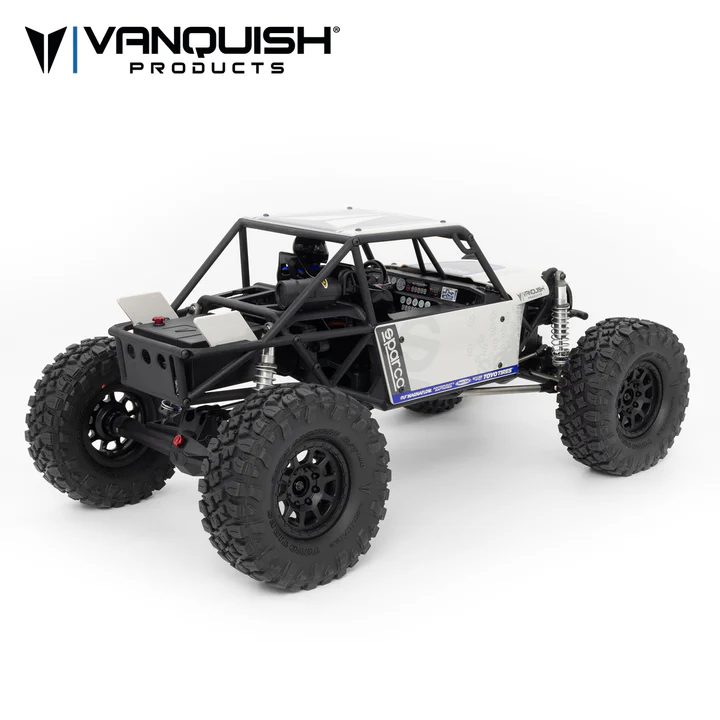

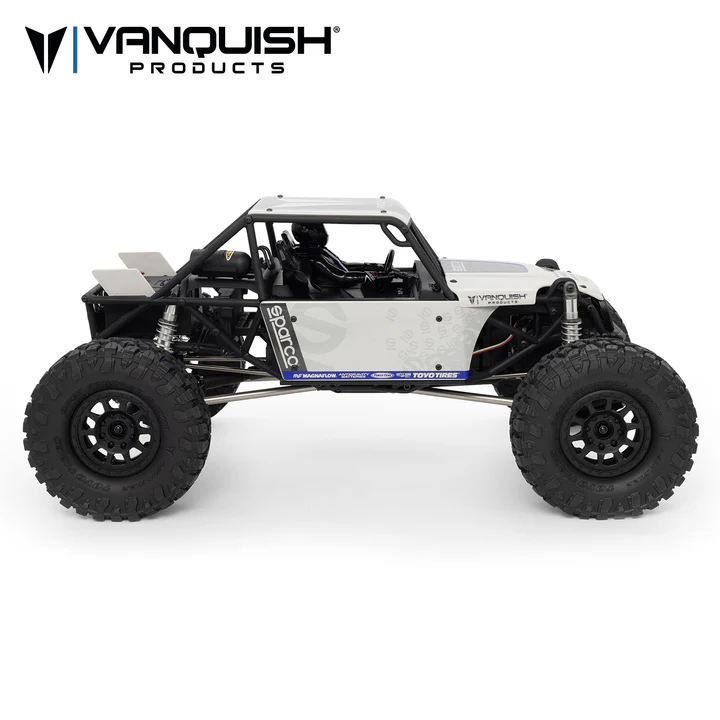

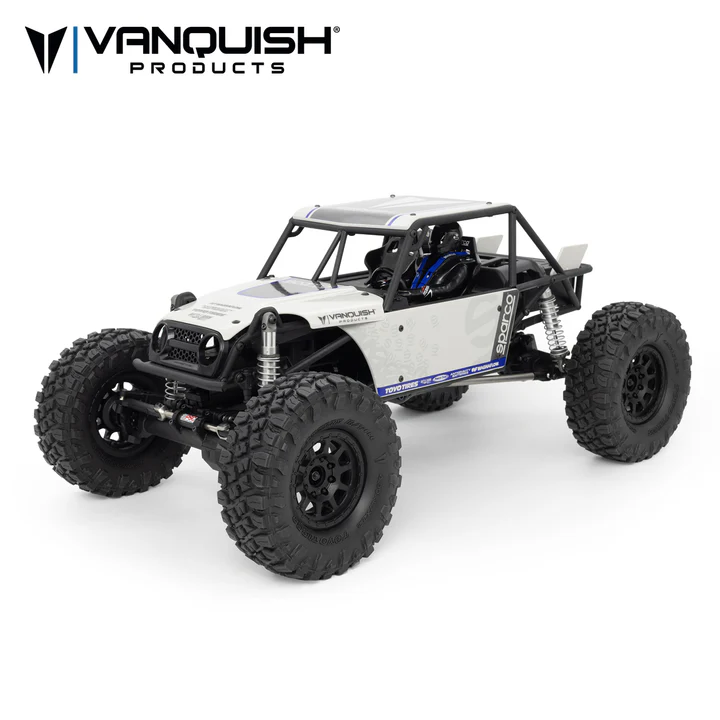

VPS09018 Vanquish Products H10 Optic Sparco Brushless RTR (v2)

The Vanquish H10 Optic 1/10 4WD RTR Brushless Rock Crawler is engineered from the ground up as a high-performance trail buggy that combines extreme off-road capability with premium scale realism. Designed to dominate technical terrain, the H10 features a rugged caged chassis, widened H10 axles, and a long 13.25-inch wheelbase for exceptional stability and confidence on the rocks. Massive 2.2-inch Toyo Tires Open Country R/T Pro tires mounted on Battle Born Sierra wheels provide aggressive traction and a bold trail-ready stance.

At the heart of the H10 Optic is the Hobbywing Fusion SE 1800kV 2-in-1 Brushless System, delivering ultra-smooth throttle response and precise low-speed crawling performance through advanced FOC technology. The integrated hydro-style ram steering system enhances both scale appearance and steering capability, while the hard-molded body and detailed Sparco-equipped interior add an unmatched level of realism.

Built for enthusiasts who demand durability, performance, and scale detail in one package, the Vanquish H10 Optic RTR is ready to tackle challenging trails straight out of the box. Whether you’re navigating rocky climbs, technical obstacles, or scenic trail runs, this premium brushless rock crawler delivers the perfect balance of power, control, and authentic off-road styling.

Features:

• Brushless Hobbywing Fusion SE system for smooth low-speed control
• FOC technology maintains precise throttle response over obstacles
• Exclusive H10 axles with increased width for added stability

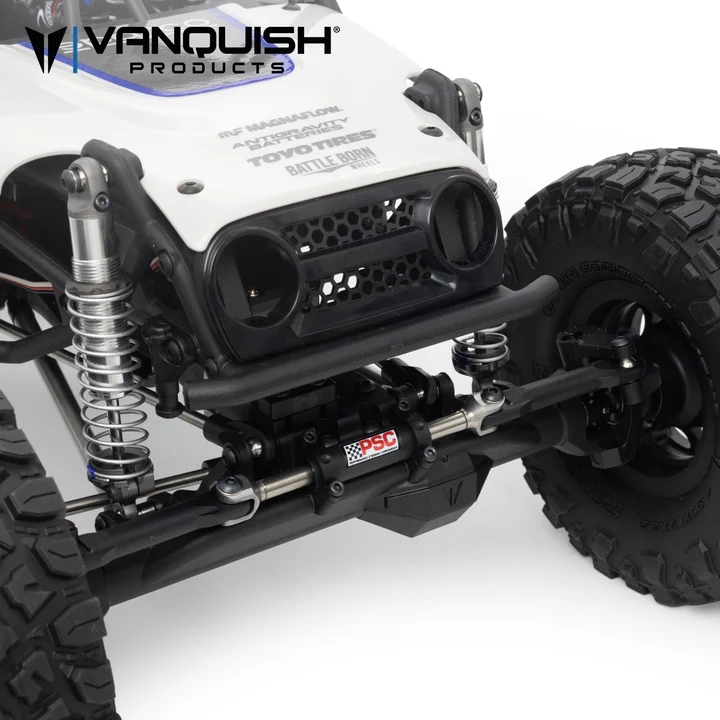

• PSC hydro style ram steering system with hidden servo placement

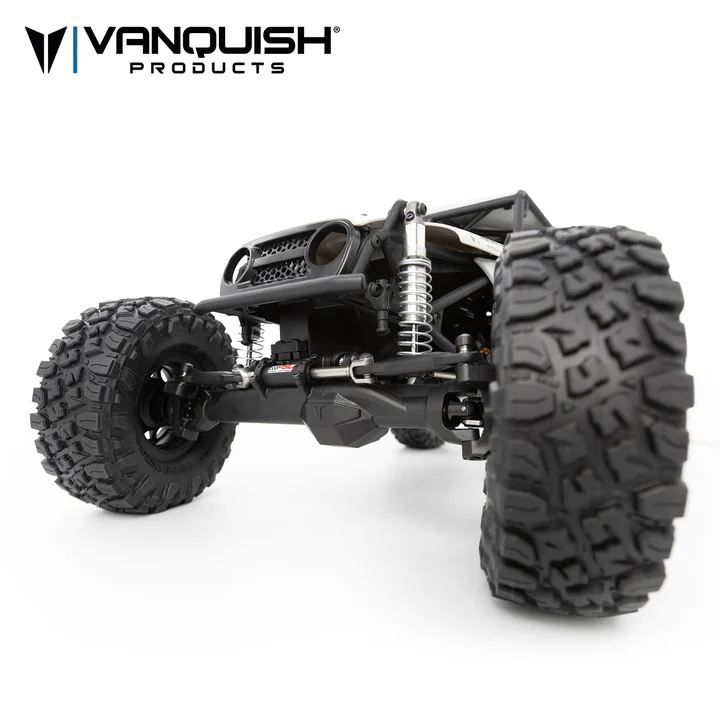

• VDI universal axle shafts offering up to 47° steering angle
• Rigid ABS hard body with detailed interior and molded panels
• Symmetrical two-seat design for narrow trail navigation
• Short front and rear overhangs improve approach and departure angles

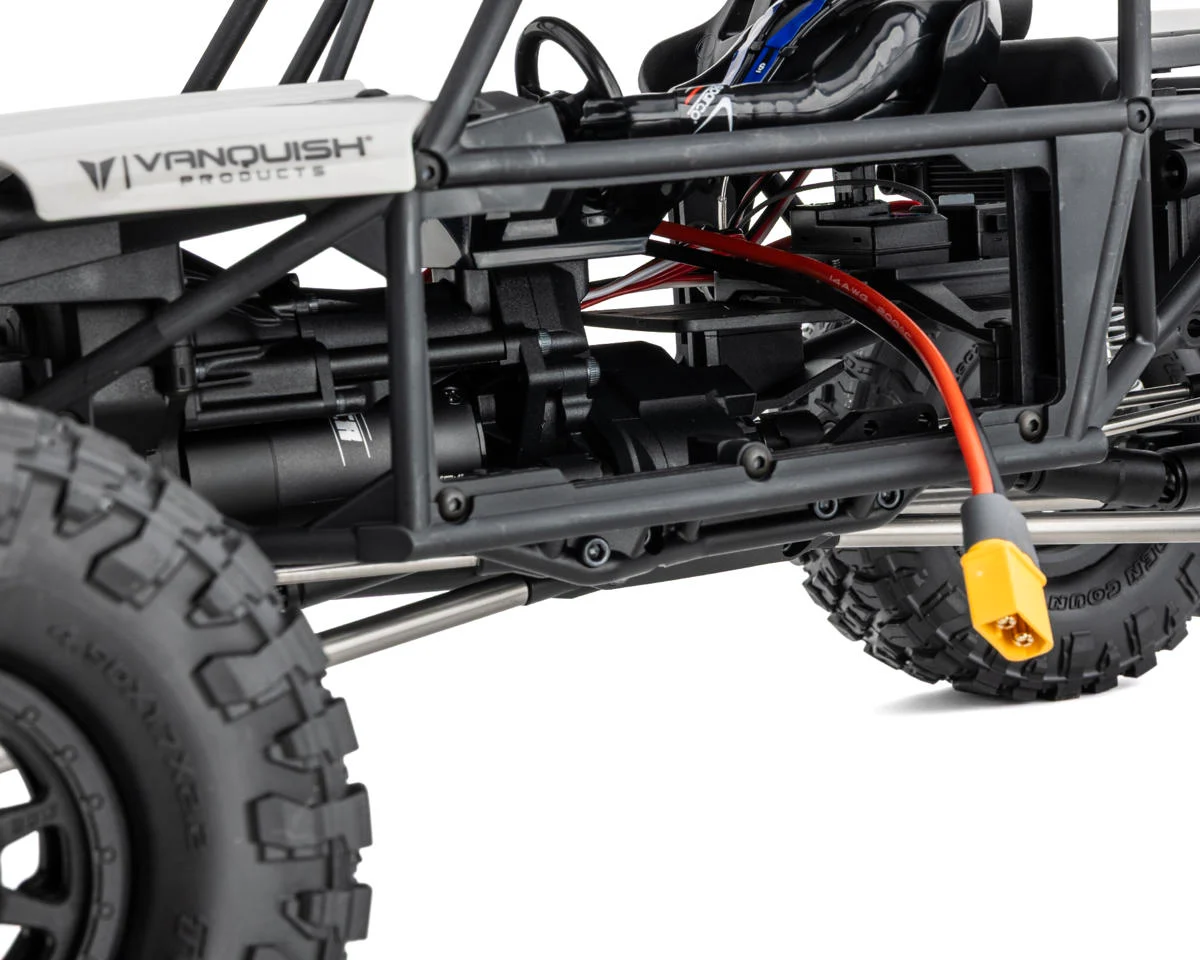

• VFD transmission with low motor placement for balanced handling
• Quick-access pin-and-latch battery compartments for fast trail swaps

Specs:

• 1/10th Scale

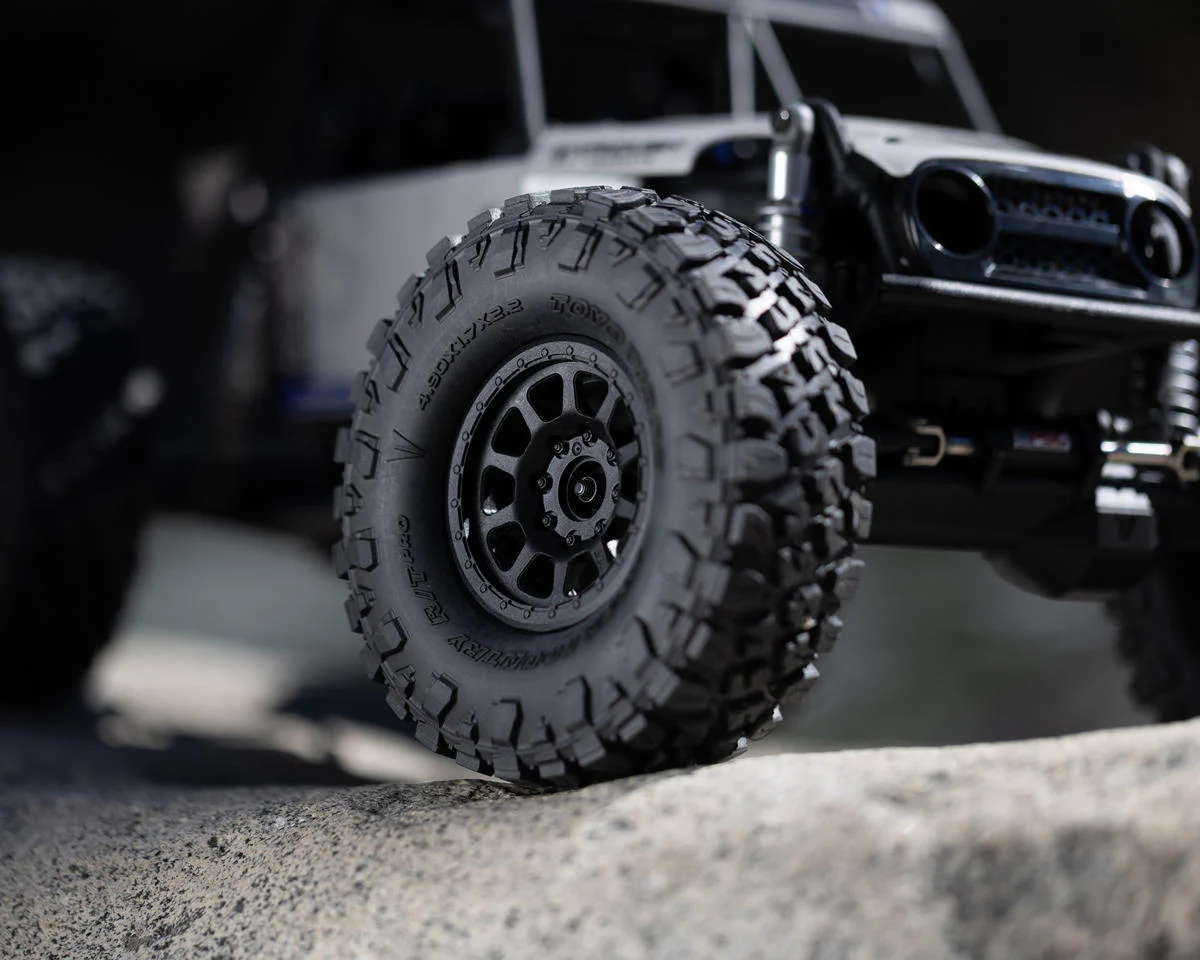

• Toyo Tires R/T Pro Red Compound 4.9” x 2.2” Tires
• Axle Ratio 3.75:1
• Pinion 15T 32P
• Spur 56T 32P
• Overall Width Hex to Hex - 206mm (8.11”)
• Wheelbase - 337mm (13.26”)
• Overall Height - 200mm (7.87”)
• Overall Front Ratio 41.3:1
• Overall Rear Ratio 44.0:1
• Final Overdrive 6%
• RTR Weight (without battery) 5.35lbs (2.43kg)
• Battery Compartment Size: 93mm x 36mm x 42mm

Required Items:

• 2-3S LiPo Battery (Compartment Size: 93MM X 36MM X 42MM)
• Battery Charger
• Battery and Charger must be equipped with XT60 connection
