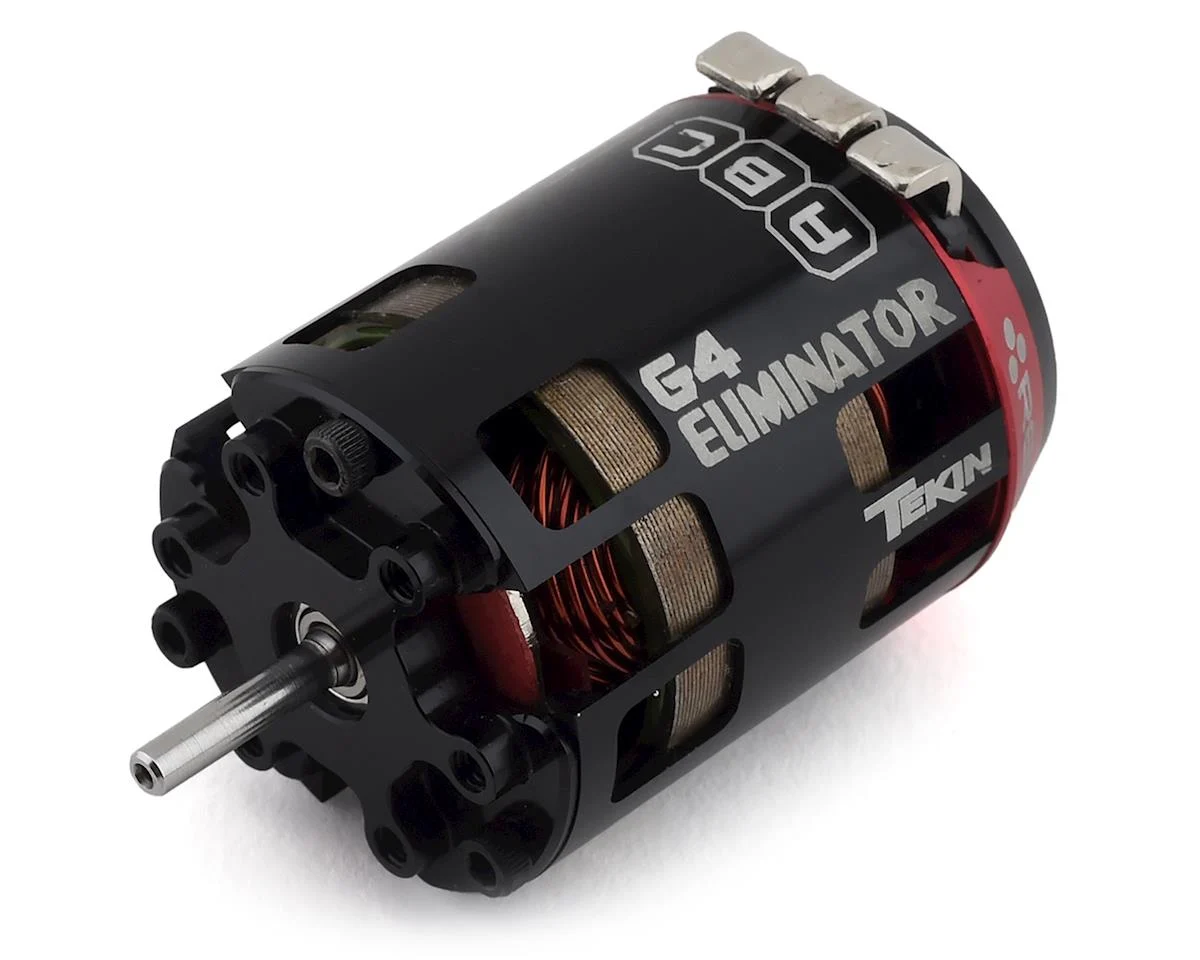

TEKTT2773 Tekin Gen4 Eliminator Drag Racing Modified Brushless Motor (2.5T)

The Tekin GEN4 Eliminator 2.5T is a purpose-built 1/10 scale drag racing brushless motor engineered for extreme power and high-RPM performance. Its precision-stamped stator and high-purity copper windings reduce resistance while maximizing energy conversion and power delivery. The motor uses a 13.5mm Ultra Torque Yellow neodymium rotor and a CNC-machined 6061-T6 aluminum heat-sink can for strong acceleration and effective heat management. Sensored-system ready with 60-degree adjustable timing, it can be tuned for different drag racing setups and driving conditions. The rebuildable design, high-RPM precision bearings, and oversized front bearing make it a durable and serviceable choice for serious drag racers.

Features:

• 2.5T GEN4 Eliminator brushless motor designed specifically for 1/10 drag racing.
• 13.5mm Ultra Torque Yellow neodymium rotor provides aggressive power and acceleration.
• Precision-engineered stator and high-purity copper windings maximize efficiency.
• CNC-machined 6061-T6 billet aluminum heat-sink can helps control operating temperatures.
• Sensored-system ready with 60-degree adjustable timing advance.
• High-RPM precision bearings and oversized front bearing support reliable operation.
• Rebuildable design with replaceable sensor PCB and optional rotor tuning.

Specifications:

• Part Number: TEKTT2773
• Motor: GEN4 Eliminator
• Turns: 2.5T
• Input Voltage: 1S-2S LiPo/LiHV
• Voltage Range: 4.2V-8.7V
• Rotor: 13.5mm Ultra Torque Yellow
• Weight: 145g / 5.1oz
• Shaft: 3.18mm / 1/8in x 15.3mm
• Motor Diameter: 35.85mm / 1.40in
• Motor Length: 50.25mm / 1.987in
• Maximum RPM: 100,000
• Maximum Operating Temperature: 180°F / 82°C
• Mounting Pattern: M3 at 25.4mm / 1in
• Rebuildable: Yes
• Front Bearing: 4 x 13 x 5mm
• Rear Bearing: 1/8 x 3/8 x 5/32in
