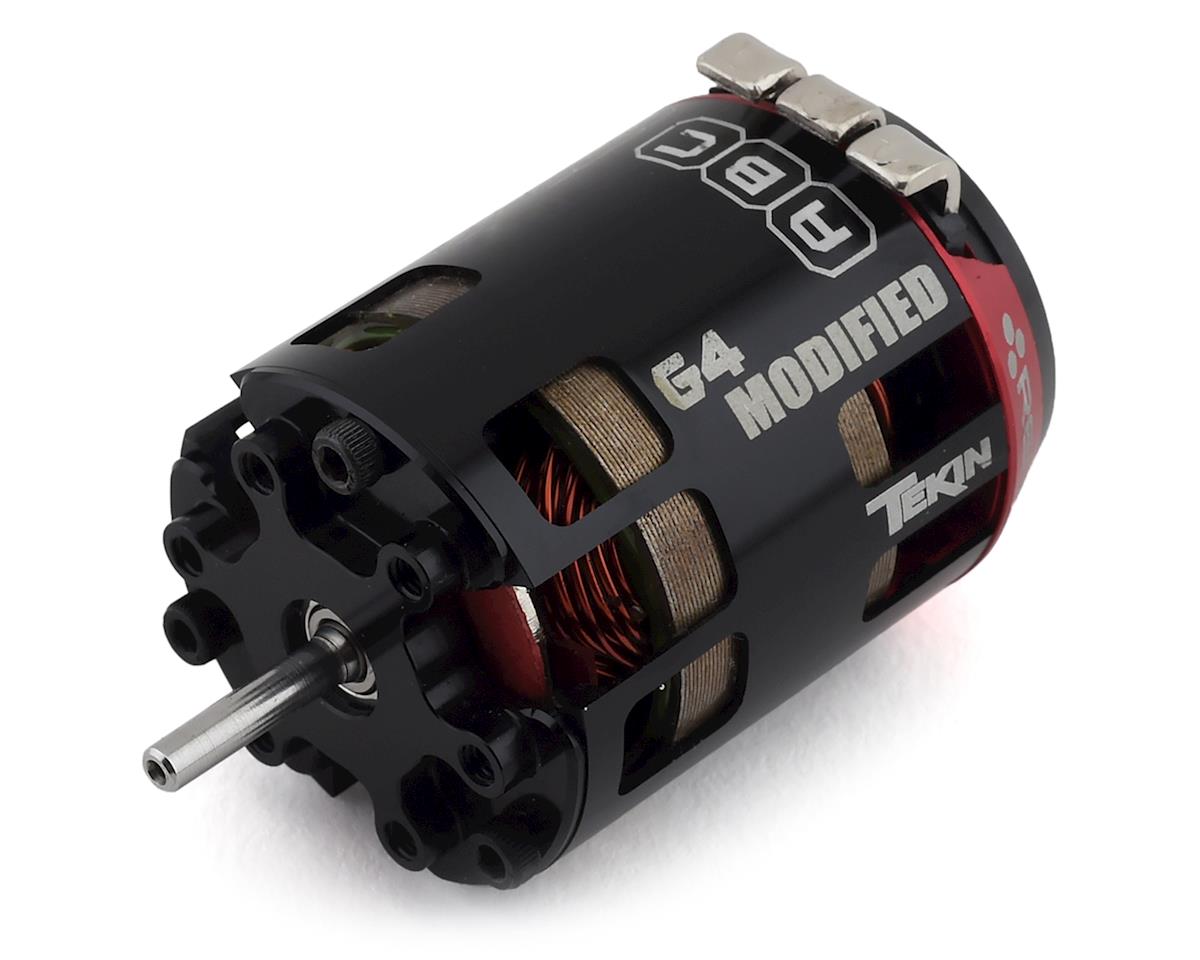

TEKTT2769 Tekin Gen4 Modified Sensored Brushless Motor (6.5T)

The Tekin GEN4 6.5T Modified is a competition-focused sensored brushless motor designed for high-performance 1/10 scale racing. Its precision-stamped stator, high-purity copper windings, and low-resistance construction provide efficient power delivery with smooth response throughout the RPM range. The motor features a 12.5mm Green neodymium rotor and 60-degree adjustable timing, allowing racers to tune torque and RPM characteristics for different applications. A CNC-machined 6061-T6 aluminum heat-sink can helps manage operating temperatures, while the rebuildable design makes maintenance and performance tuning straightforward. Designed for 1S-2S LiPo/LiHV operation, it is well suited for modified buggy, truck, touring car, pan car, drift, oval, and 1/10 drag racing applications.

Features:

• 6.5T GEN4 Modified sensored brushless motor for competitive 1/10 scale racing.
• 12.5mm Green neodymium rotor provides a strong balance of torque and RPM.
• Precision-engineered stator and high-purity copper windings maximize efficiency.
• CNC-machined 6061-T6 aluminum heat-sink can helps manage operating temperatures.
• 60-degree adjustable timing allows racers to fine-tune motor performance.
• Dual-plug sensor harness supports sensored and sensorless ESC systems.
• Rebuildable construction with high-RPM precision bearings and oversized front bearing.

Specifications:

• Part Number: TEKTT2769
• Motor: GEN4 Modified
• Turns: 6.5T
• Motor Type: Sensored Brushless
• Input Voltage: 1S-2S LiPo/LiHV
• Voltage Range: 4.2V-8.7V
• Rotor: 12.5mm Green
• Weight: 145g / 5.1oz
• Shaft: 3.18mm / 1/8" x 15.3mm
• Motor Diameter: 35.85mm / 1.40"
• Motor Length: 50.25mm / 1.978"
• Maximum RPM: 100,000
• Maximum Operating Temperature: 180°F / 82°C
