TAM58745 Tamiya TT-02 Porsche 911 GT3 R 1/10 4WD Electric Touring Car Kit

German Performance Engineered On-Road Racing Kit

The Porsche 911 GT3 R features the TT-02 chassis, celebrated for its ease of use and adaptability. Its shaft-driven 4WD layout delivers excellent stability, with the motor and battery positioned longitudinally for balanced performance. The chassis also offers extensive customization options, including two wheelbase choices, adjustable ground clearance, and multiple tread configurations, making it highly versatile for a range of driving styles.

About the Porsche 911 GT3 R

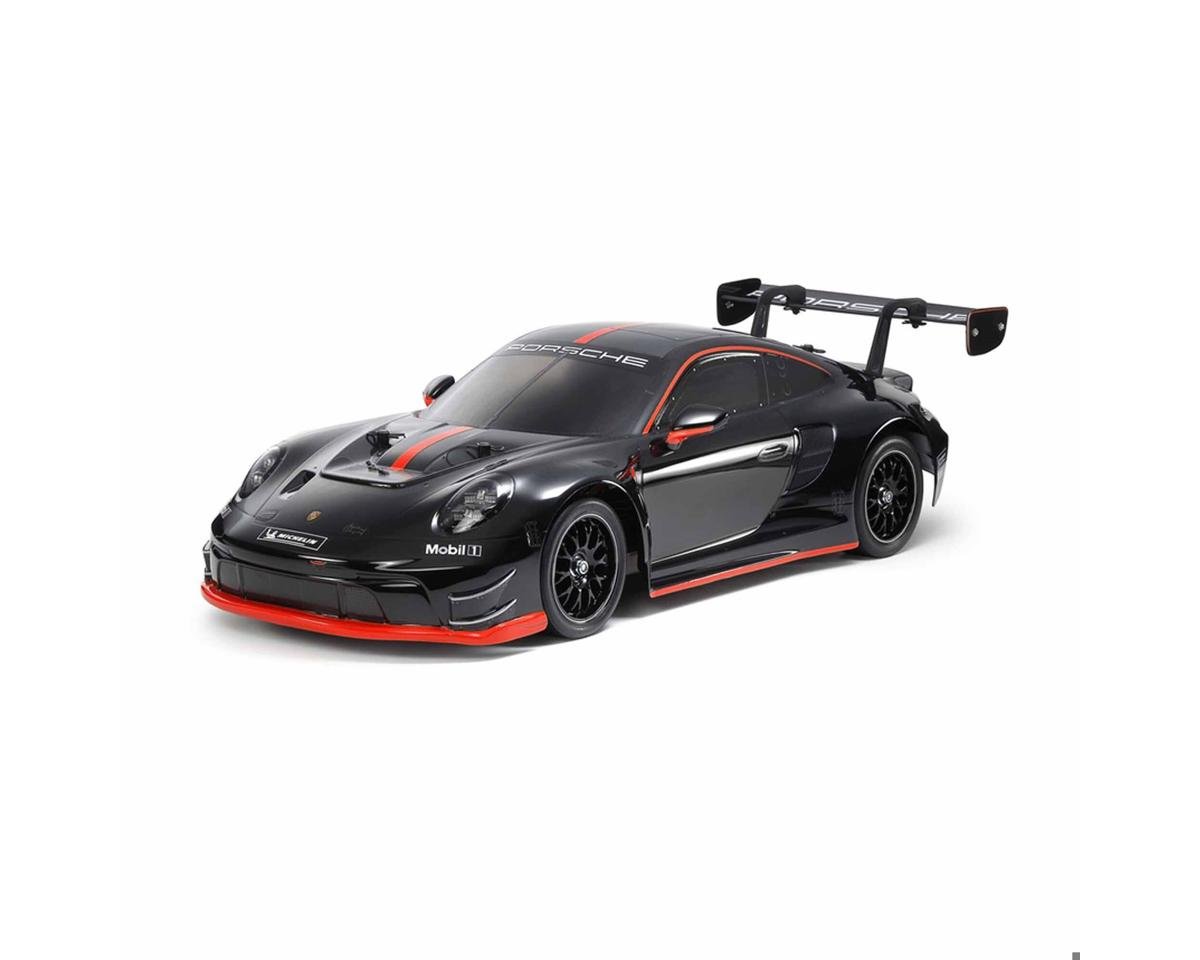

Clear Porsche 911 GT3 R Body
The Porsche 911 GT3 R (992) is a track-focused powerhouse, engineered for precision, speed, and victory in global GT3 racing. Its 565-horsepower naturally aspirated six-cylinder boxer engine, combined with a lightweight carbon-reinforced construction, delivers outstanding performance. Built to compete in the Fanatec GT World Challenge and SRO series, the GT3 R blends Porsche’s iconic heritage with advanced aerodynamics, ensuring exceptional agility and race-winning potential on the world’s most demanding circuits.

Performance Chassis
The TT-02 chassis, featuring a shaft-driven 4WD system, provides outstanding stability with a longitudinal layout that positions the battery on the left and the motor on the right. Designed for straightforward assembly, it incorporates identical left and right suspension arms and uprights, along with easily maintainable gearboxes. Highly versatile, the chassis offers two wheelbase options, adjustable ground clearance, multiple tread setups, and a selection of ten gear ratios. Beyond performance, it boasts aesthetic features such as brake disc-style wheel hubs, stylish front bumper supports, gun-metal 10-spoke wheels, and sleek slick tires for a sporty appearance.

Included Electronics
This kit comes equipped with a torque-tuned RS-540 brushed motor and a Hobbywing Quicrun 1060 ESC. The ESC delivers efficient power with a built-in capacitor module, exceptional current endurance, configurable parameters via jumpers, automatic throttle calibration, and an IP-67 waterproof rating. Together with the torque-tuned motor, these electronics provide enhanced acceleration, higher top speeds, and reliable performance, making it ideal for on-road racing enthusiasts.

Features:

• Smooth shaft-driven 4WD TT-02 chassis

• Stickers and window masking for easy body painting

• Sleek racing wheels to complement the iconic body

• Lightweight, rigid polycarbonate body

• Fully independent double wishbone suspension

• Low-maintenance friction-style shocks

• Reliable Hobbywing THW 1060 brushed ESC

• Torque-tuned Mabuchi RS-540 brushed motor

• High-strength ABS chassis

• Grease-filled differentials for smooth operation

Includes:

• (1) Tamiya Porsche 911 GT3 R Kit

• (1) Hobbywing 1060 ESC with Tamiya Connector

• (1) Torque-tuned 540 brushed motor

• Manual

Needed to Complete:

• 2-channel radio system

• (1) Standard or low-profile steering servo

• Polycarbonate paint for body

• (1) 7.2V NiMH battery with Tamiya connector

• Compatible charger

Specifications:

• Scale: 1/10

• Length: 18.85 in (479 mm)

• Width: 7.4 in (188 mm)

• Height: 5 in (127 mm)

• Wheelbase: 9.88 in (251 mm)

• Drive: 4WD

• Input Voltage: 7.2V

• Assembly Level: Kit*

*RC Kits are unassembled remote control models that require assembly and racer-supplied electronics and accessories. Photos of assembled models are for illustrative purposes only. For a full list of required items to operate the kit, please see the list above.
