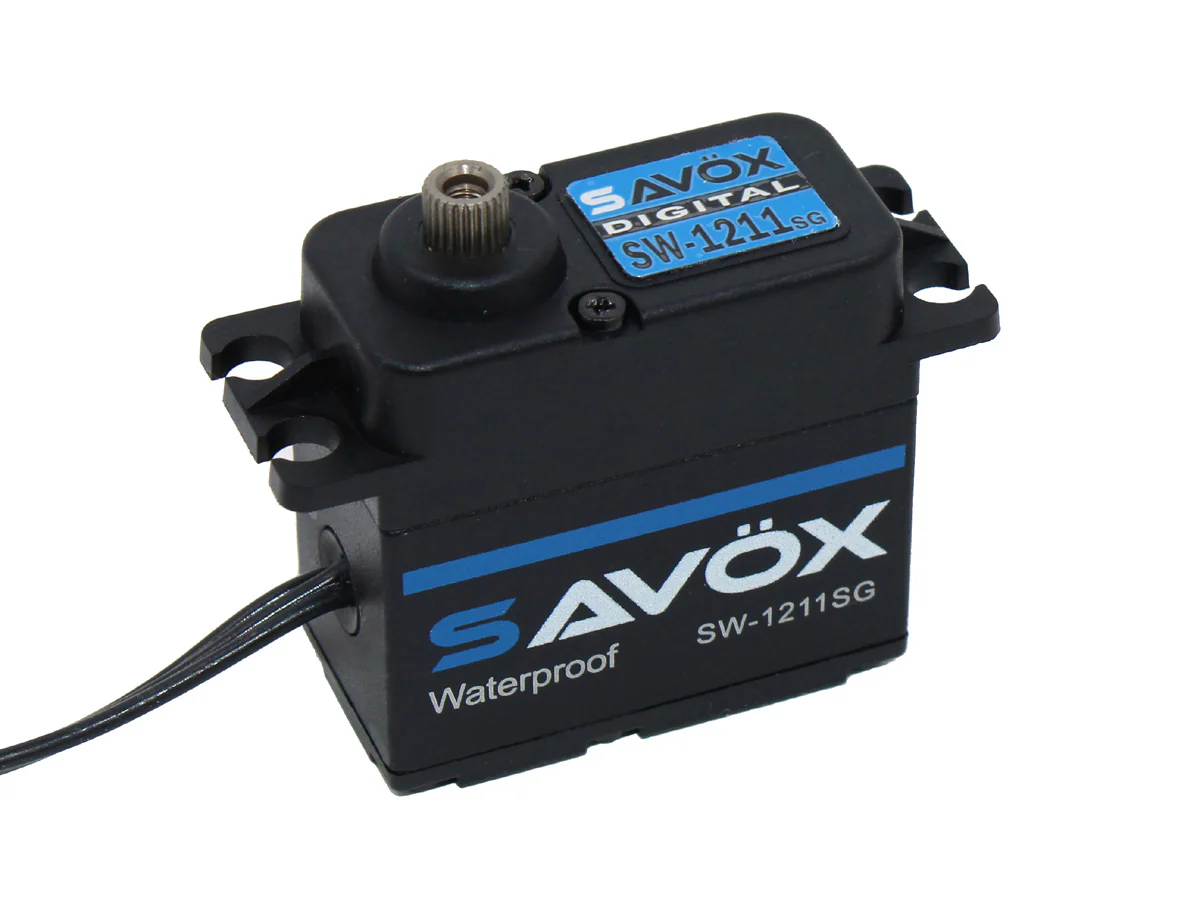

SW-1211SG-BE Digital Servo

Designed for high-performance RC vehicles, this waterproof high voltage digital servo delivers a strong combination of speed, torque, and durability for demanding steering applications. The coreless motor provides fast, smooth response with efficient operation, while the hardened steel geartrain is built to handle heavy loads and harsh driving conditions. The Black Edition design features a sleek finish while maintaining the rugged construction needed for off-road vehicles, crawlers, boats, and bashers. Waterproof protection helps shield internal electronics from rain, mud, snow, and debris for reliable all-weather performance. With high voltage capability up to 8.4V, this servo provides increased torque and faster response for drivers looking to upgrade from standard RTR steering systems.

Features:

• High voltage operation from 6.0V to 8.4V provides increased torque and speed for demanding RC steering applications.
• Coreless motor technology delivers smooth, efficient operation with fast response times of 0.08 sec/60° at 7.4V and 0.07 sec/60° at 8.4V.
• Hardened steel gears provide excellent durability and wear resistance for high-load steering conditions.
• Waterproof IP67-rated construction protects internal components from water, mud, snow, and harsh outdoor environments.
• Produces up to 25kg-cm (347.2 oz-in) of torque at 7.4V and 30kg-cm (416.6 oz-in) at 8.4V for powerful steering performance.
• Standard-size dimensions of approximately 40.6 × 20.7 × 42.0mm with a 25T spline output provide compatibility with many RC platforms.
• Dual ball bearings and digital control circuitry provide smooth movement, accurate positioning, and reliable centering during operation.
