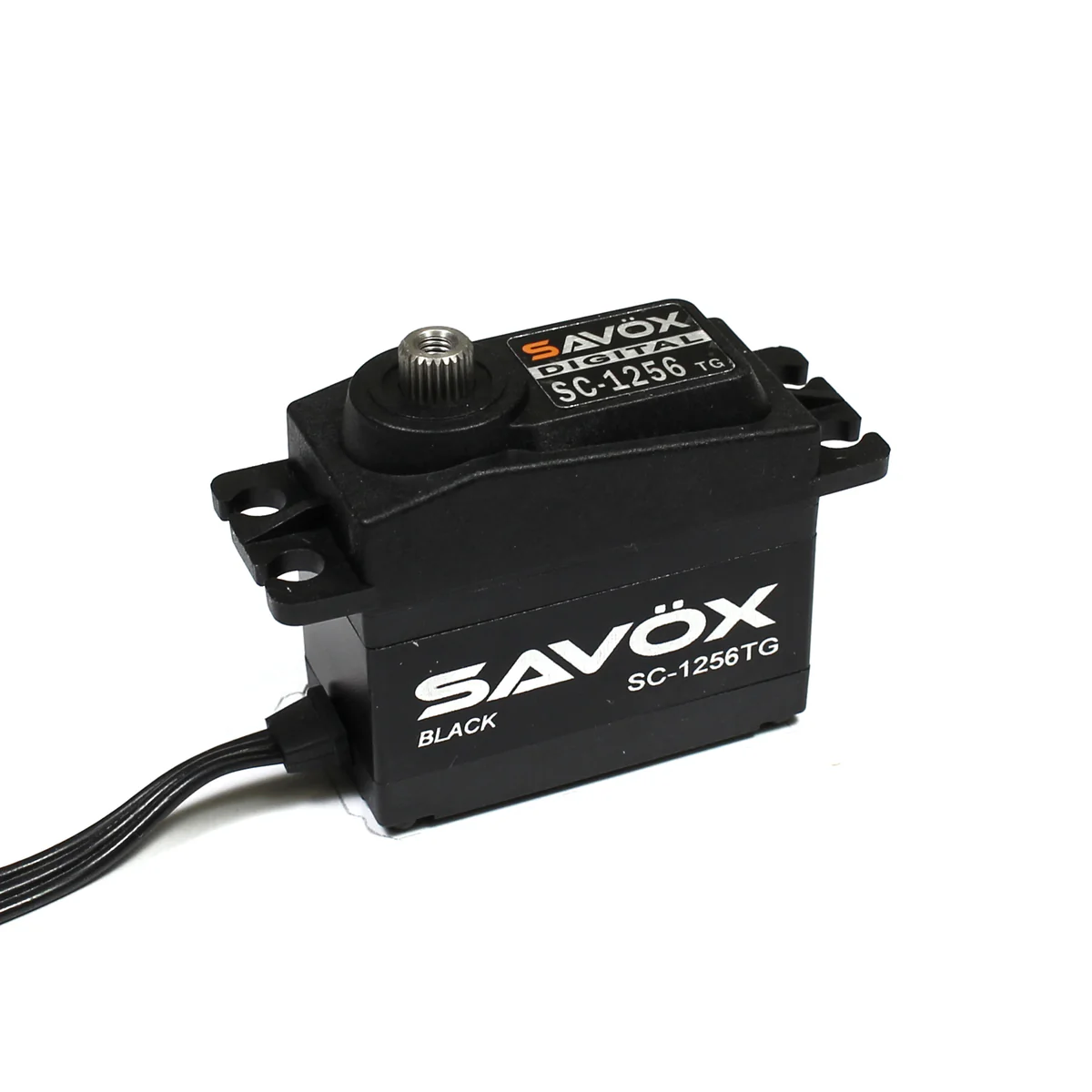

SC-1256TG Savox Digital Servo

This standard-size digital servo is built around a coreless motor and high-strength titanium gearing for a combination of smooth response and strong output. It produces 16.0 kg/cm of torque at 4.8V and 20.0 kg/cm at 6.0V, making it suitable for demanding 1/8 and 1/10 scale RC applications. The aluminum center case helps manage heat during extended use while keeping the servo housing rigid. Two ball bearings support the output shaft for smooth movement and reduced play. A 25-tooth output spline provides compatibility with a wide range of common servo horns.

Features:

• Standard-size digital servo
• Coreless motor for smooth response
• Titanium and aluminum gear construction
• Aluminum center case for improved heat dissipation
• 20.0 kg/cm torque at 6.0V
• 0.15 sec/60° speed at 6.0V
• 25T output spline with dual ball bearings
