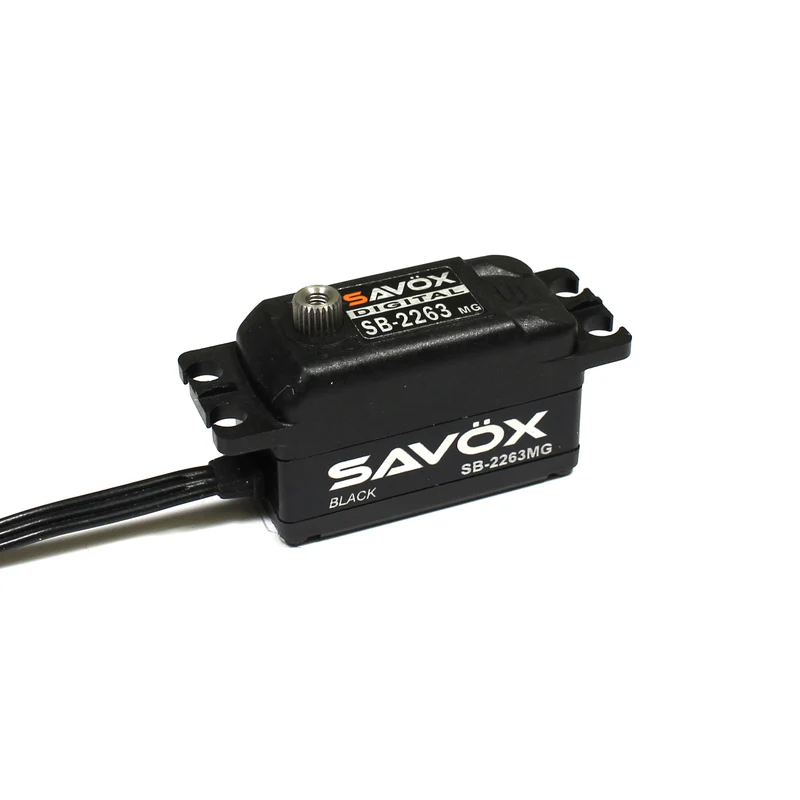

SB-2263MG Low Profile Servo

Designed for high-speed RC racing applications, this low-profile digital servo combines brushless motor technology with a durable metal geartrain for fast, precise, and reliable control. The efficient brushless motor provides quick response, cooler operation, and extended service life compared to traditional servo motors. Its compact low-profile design allows installation in tight chassis layouts while maintaining the strength needed for competitive driving. The hybrid aluminum and composite case improves durability and heat management during extended operation. With precise digital control, dual ball bearings, and a 25T output spline, this servo is an excellent choice for 1/10 scale touring cars, on-road racers, and other performance RC vehicles where speed and accuracy are critical.

Features:

• Brushless motor technology delivers fast response, efficient operation, and extended durability for competitive RC applications.

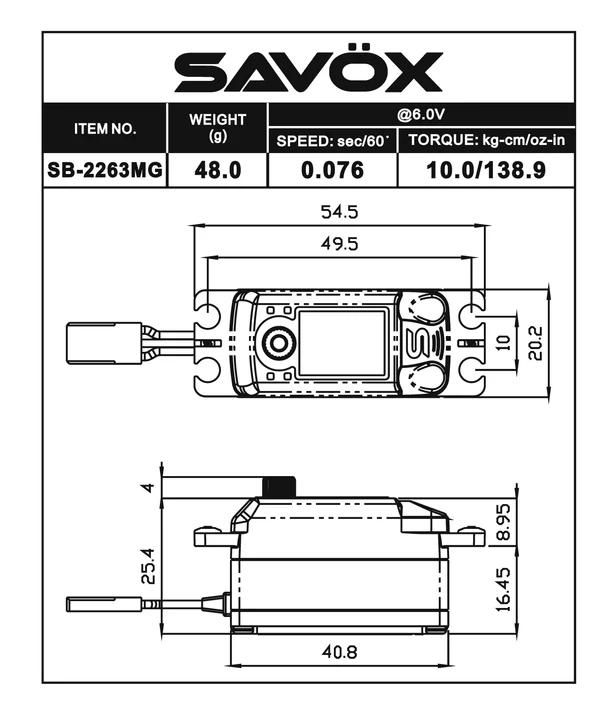

• Low-profile design with dimensions of approximately 40.8 × 20.2 × 25.4mm allows installation in vehicles with limited servo space.
• Metal geartrain provides excellent strength and wear resistance for demanding racing conditions.
• Produces up to 10.0kg-cm (138.9 oz-in) of torque at 6.0V with a rapid 0.076 sec/60° response speed for precise steering control.
• Hybrid aluminum and composite case improves structural rigidity while helping dissipate heat during extended use.
• Digital 12-bit electronics provide accurate positioning, smooth movement, and consistent centering performance.
