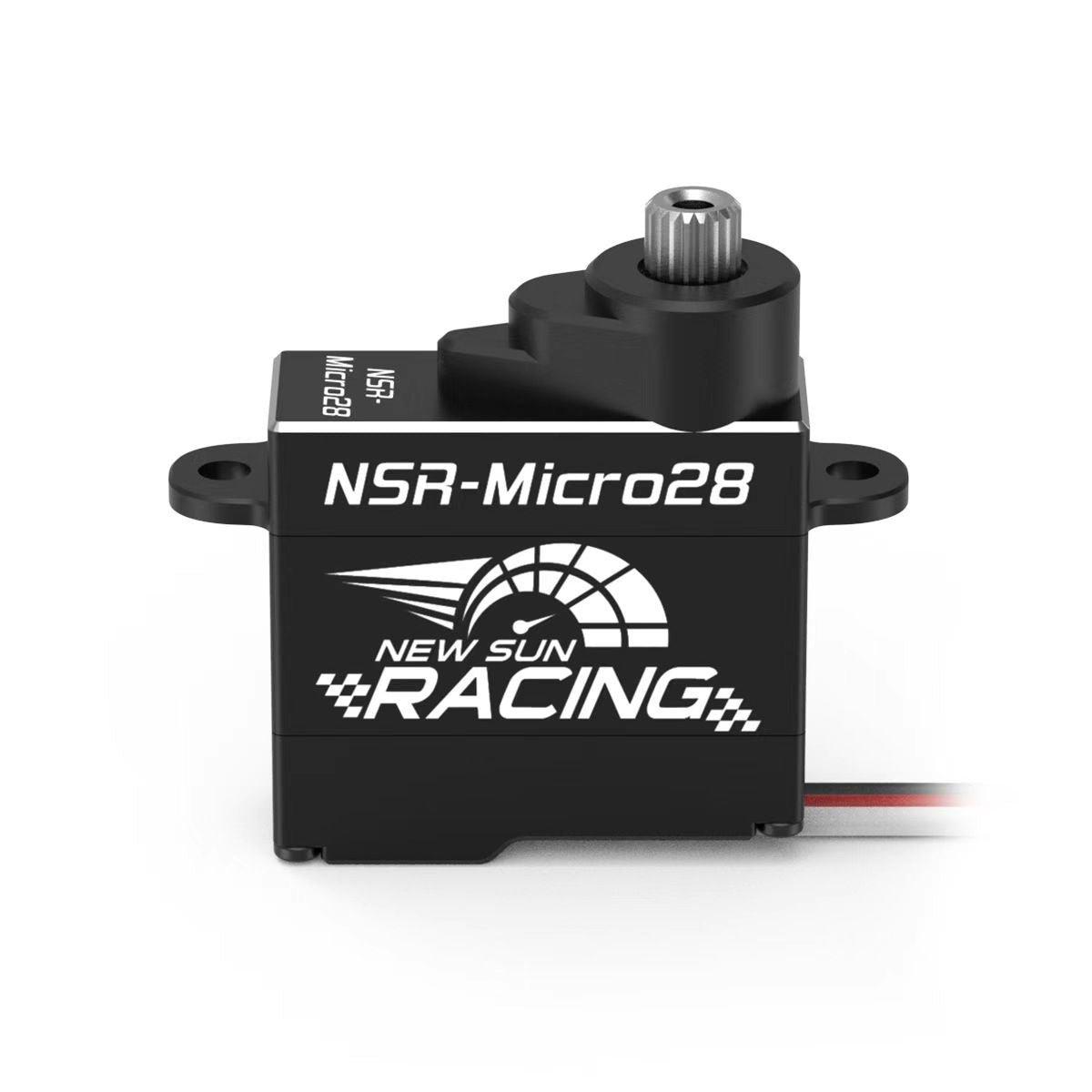

NSR-Micro28 3KG 0.052Sec Coreless Digital Servo for Mini-Z/RC28 (20T)

Micro Servo, Major Advantage.

The New Sun Racing NSR-Micro28 High-Performance Micro Servo delivers unmatched speed and torque at 8.4V, making it the ultimate choice for Kyosho Mini-Z, Team Associated RC28, PN Racing, GL Racing, Reflex, and more. Built with a full CNC aluminum case, titanium gears, and a coreless motor, this servo ensures precision, durability, and reliability. With up to 3.0 kg-cm (41 oz-in) torque and 0.052sec/60° response time, it’s also versatile enough for small aircraft wing applications. Fully programmable with the AGF-SPV3 programmer, you can fine-tune torque, speed, angle, and inversion for your exact needs.

Specification

NSR-Micro28 (20T Aluminum Servo Horn)

Operating Voltage: 4.8-8.4V

Operating speed: 0.075sec/60°@4.8V

Operating speed: 0.066sec/60°@6.0V

Operating speed: 0.058sec /60° @ 7.4V

Operating speed: 0.052sec /60° @ 8.4V

Stall Torque: 1.8 kg-cm (25 oz-in) @4.8V

Stall Torque: 2.2 kg-cm (30 oz-in) @6.0V

Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V

Stall Torque: 3.0 kg-cm (41 oz-in) @ 8.4V

Gear: Titanium

Motor: Coreless

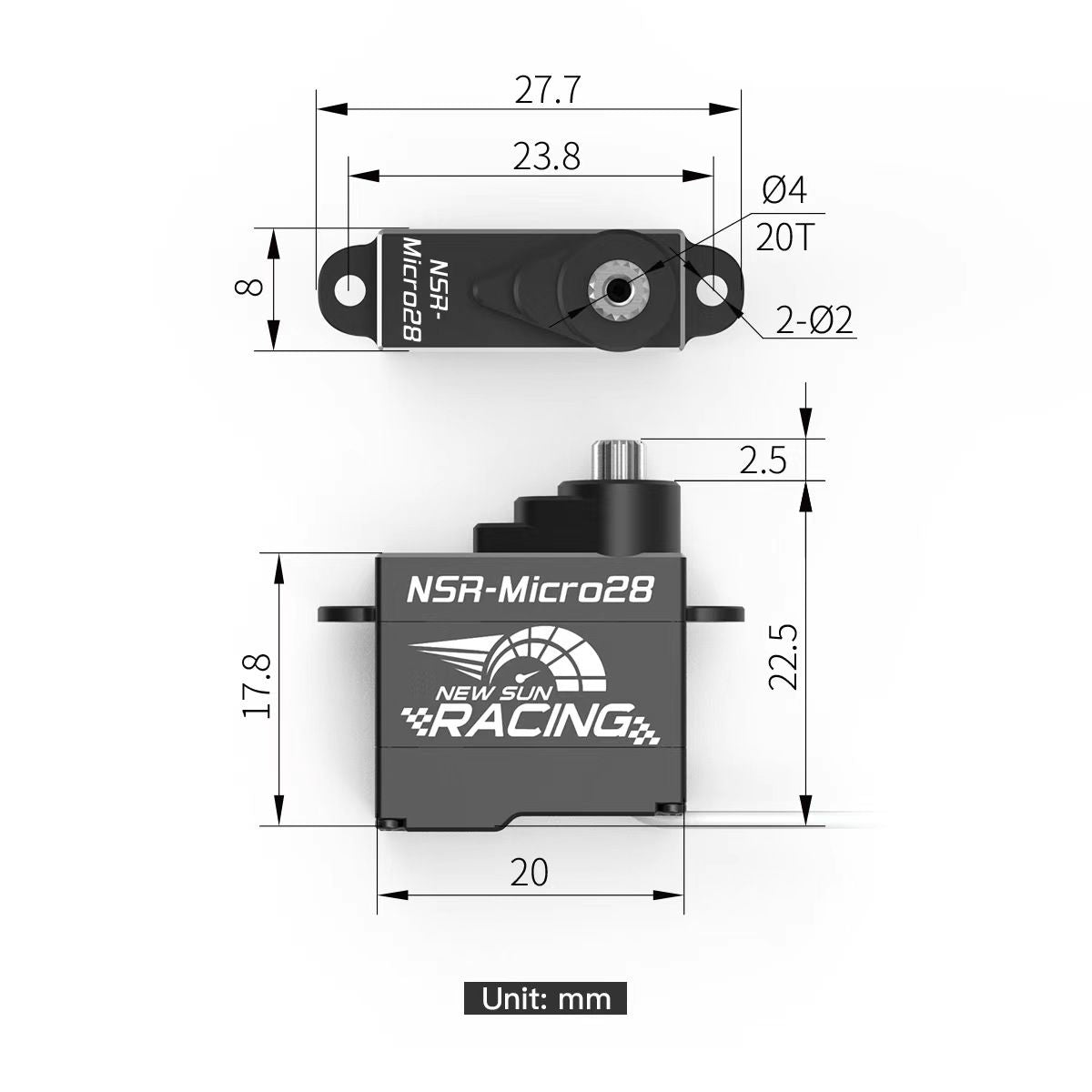

Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)

Weight: 7g

Connector Wire: JST1.5 60mm / 28AWG
