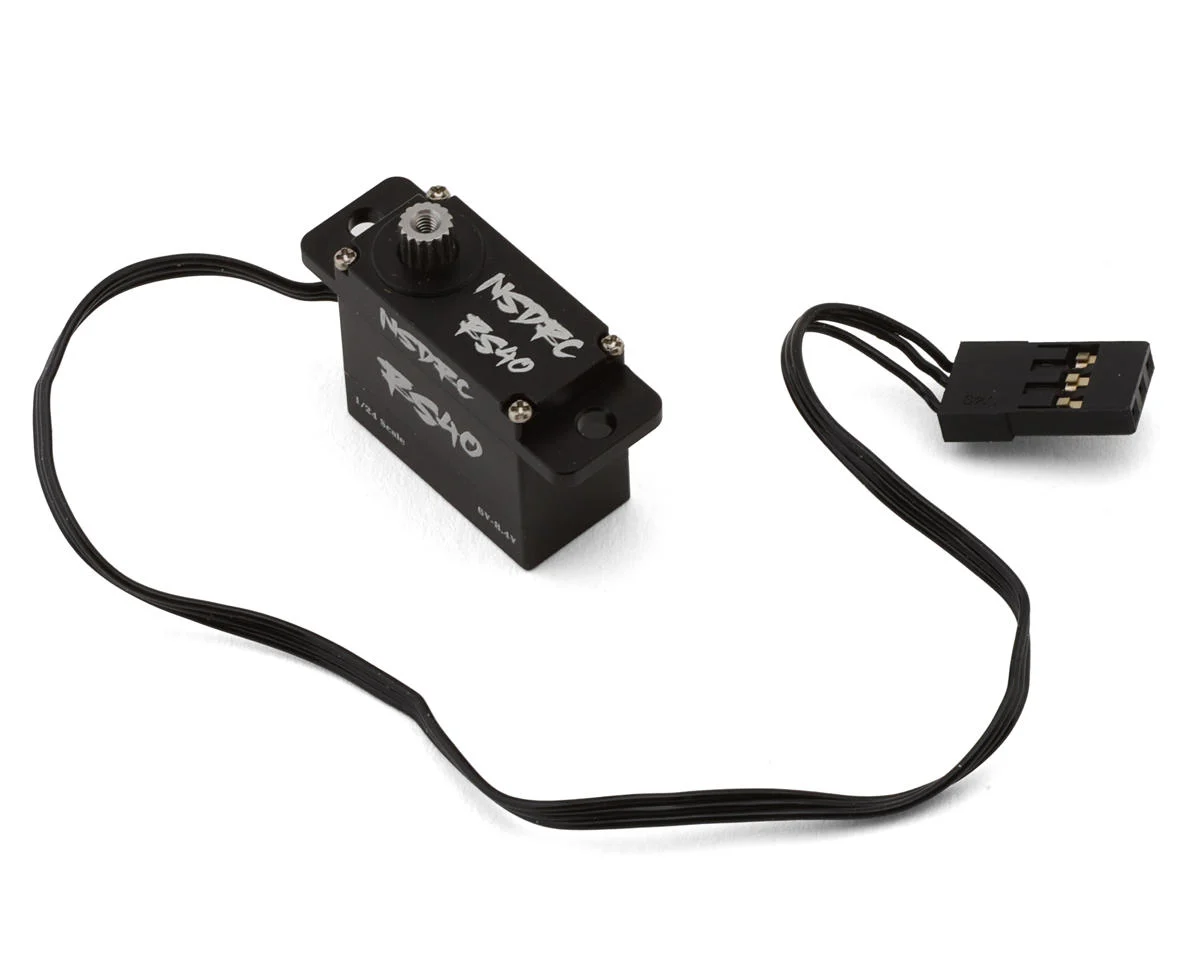

NSD-RS40S No Superior Designs RC RS40 Nano Micro-B Servo

The NSD-RS40S is a compact, high-performance digital servo designed for RC applications that require quick response, strong torque, and reliable operation. It is a great upgrade for steering and control systems where precision and durability are important.

Specifications

• Operating Voltage: 5.0V to 8.4V
• Signal Type: Digital
• Operating Temperature: -10°C to 50°C
• Overall Dimensions: 20.0 × 10.0 × 17.3 mm
• Spline: Φ3.80, 15T
• Bearing: Dual Ball Bearing
• Gear: Metal
• Weight: 10 ± 1 g
• Connector Wire Gauge: #32 AWG
• Connector Wire Length: 180 ± 5 mm
• Motor: Coreless
• Angle Sensor: Magnetic
• Case: Full Metal
• Waterproof: Water Resistant
• Operating Travel: 130°
• Neutral Position: 1500 μsec
• Dead Band Width: 2 μsec
