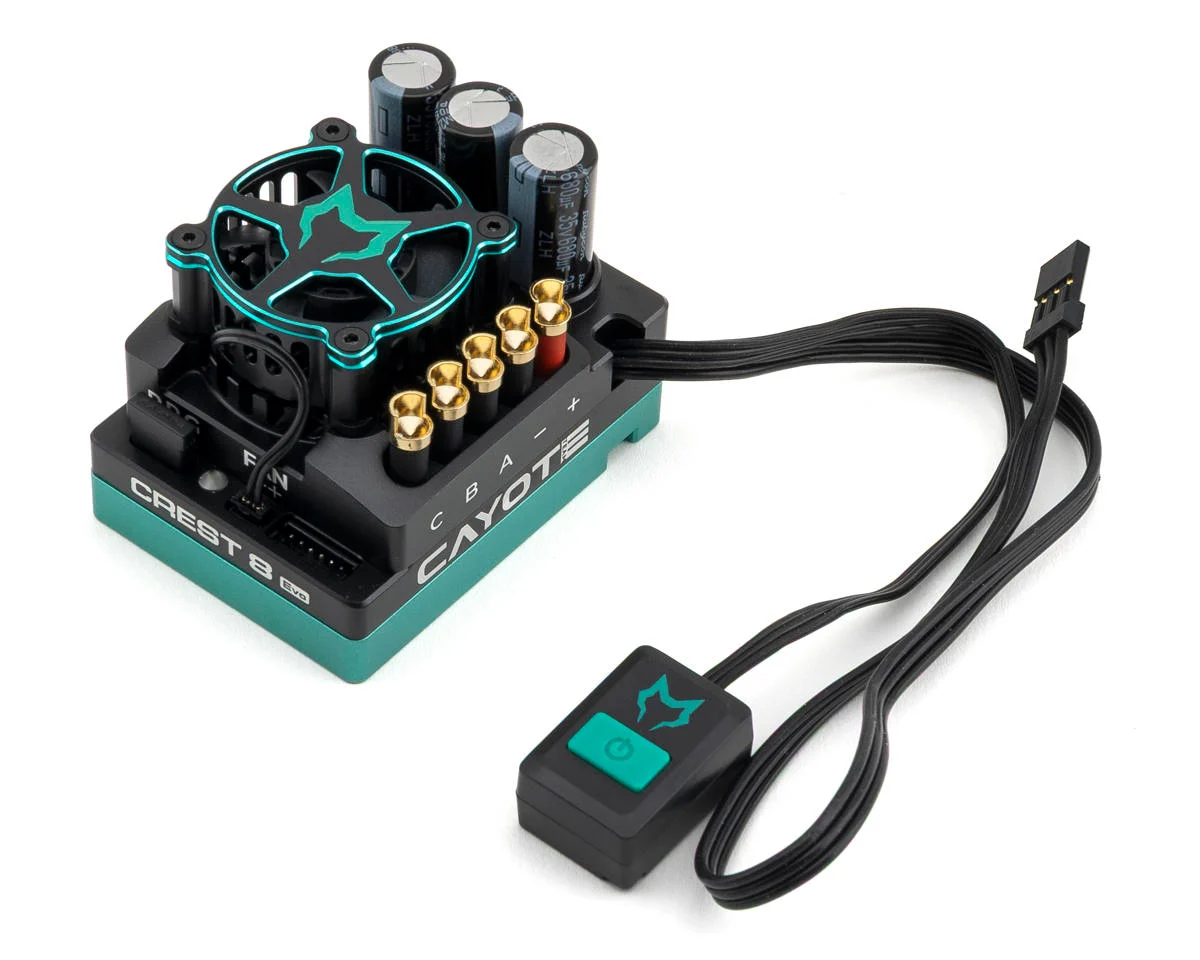

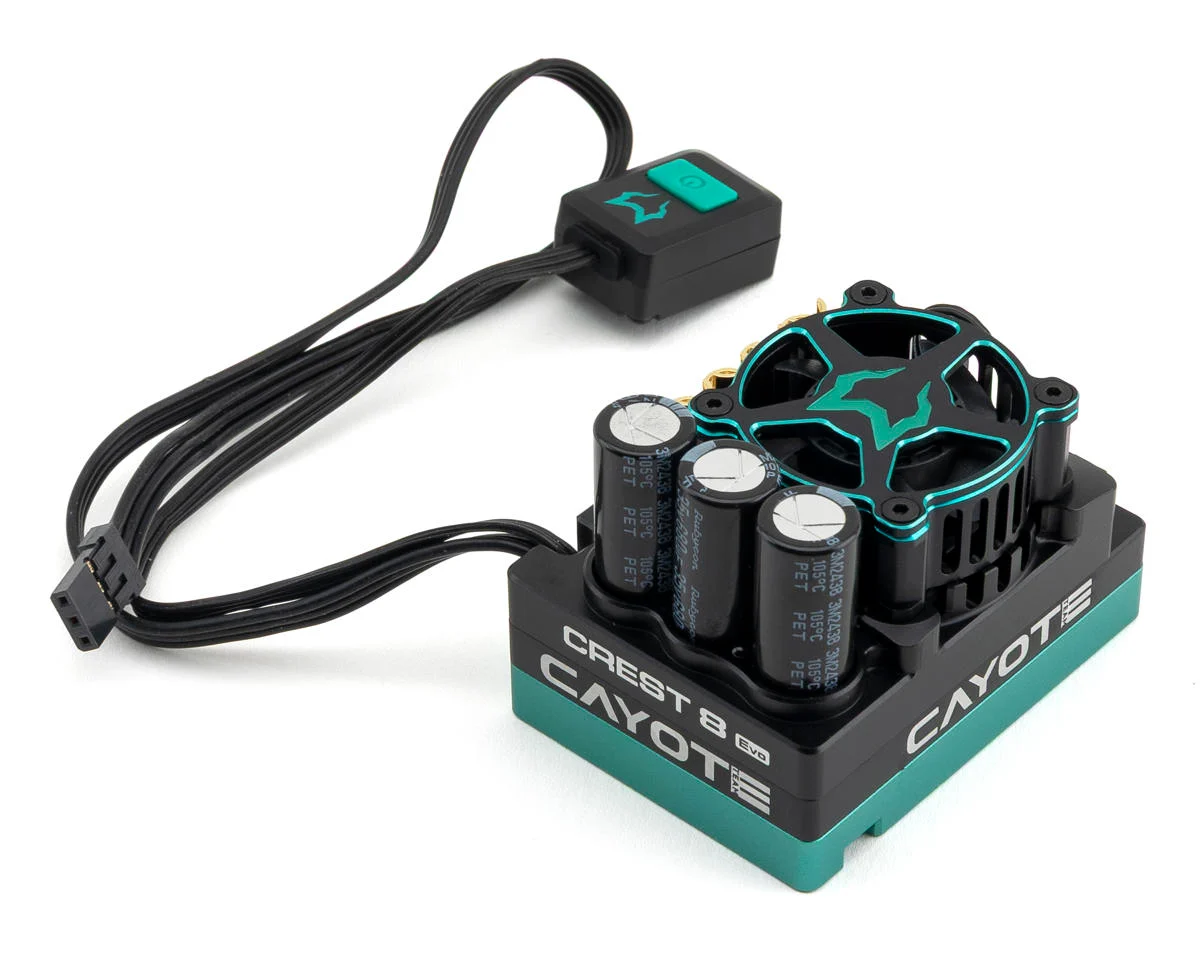

CYEA10802 Cayote Crest 8 EVO 1/8 200A Sensored Brushless ESC w/Bluetooth

Cayote Crest 8 Evo 1/8 200A Sensored Brushless ESC (Bluetooth)

The Cayote Crest 8 Evo 1/8 200A Sensored Brushless ESC is engineered for high-performance RC racing and extreme off-road applications. Built to deliver precise power control, consistent reliability, and improved peak output, this ESC gives you the competitive edge needed for serious performance. With advanced features like Bluetooth tuning, reverse polarity protection, and a built-in glitch buster, the Crest 8 Evo is designed to handle the demands of competitive racing and rugged terrain.

Key Features

• Bluetooth compatibility with the Cayote Team app for wireless tuning and monitoring

• Up to 10% more peak power for increased acceleration and speed

• Advanced boost & turbo timing (48°) for optimized motor efficiency

• Offline data recording for performance tracking and analysis

• Reverse polarity protection to prevent damage from wiring errors

• Full parameter tuning with over 37 adjustable settings

• High-performance ARM Cortex-M4 core for faster processing and improved control

• Multiple protection functions including low voltage and motor overheat protection

• Optional RPM limiting (10–88K RPM)

• Adjustable drag brake (1–20 levels)

• Throttle midpoint adjustment (4%, 6%, 8%, or 10%)

Bluetooth & Data Monitoring

The Crest 8 Evo includes built-in Bluetooth for seamless wireless tuning and performance monitoring. The ESC also supports offline data recording, allowing users to track performance metrics and make data-driven adjustments to improve lap times and battery efficiency. Recorded data can be reviewed through the Cayote Team app or the Xlink Multifunction LCD Program Box (CYECPB01 - sold separately).

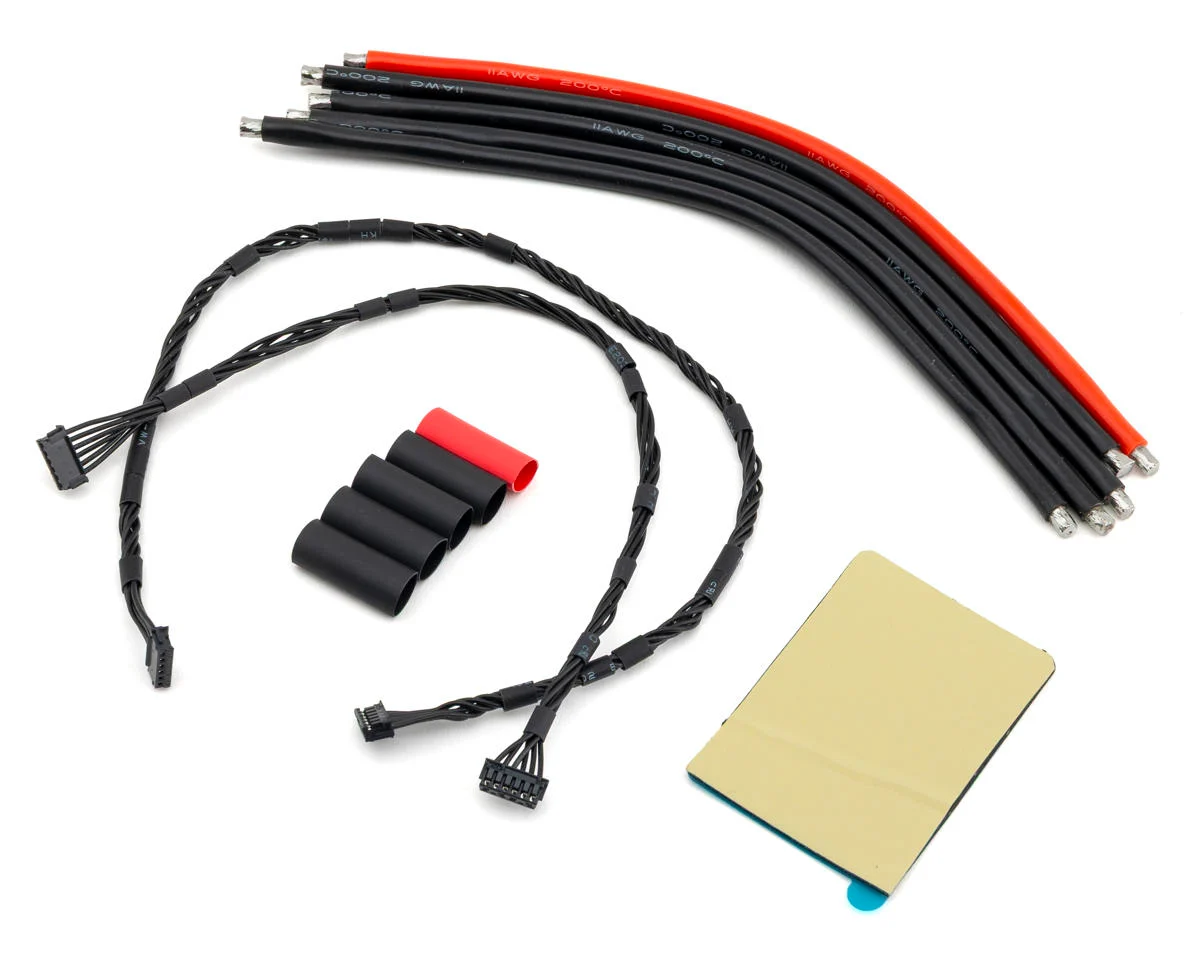

Includes

• (1) Crest 8 Evo 1/8 200A Sensored Brushless ESC

• (1) Sensor Cable

• (3) Black 10AWG Wire Connectors

• (1) Black 13AWG Wire Connector

• (1) Red 13AWG Wire Connector

• (1) Heat Shrink Tube Set

• (1) Double-Sided Mounting Tape

• Instruction Manual

Specifications

• Suggested Application: 1/8 Buggies, Truggies & Trucks

• Motor Type: Brushless - Sensored/Sensorless

• Input Voltage: 2–4S LiPo (7.4–14.8V)

• Continuous Current: 200A

• Peak Current: 1080A

• Dimensions: 2.24 x 1.64 x 1.57 in (56.8 x 41.6 x 40 mm)

• Weight: 4.3 oz (122 g)

• Motor Limits: 4268/4274 3000kV max with 4S LiPo

• BEC Voltage: 6.0/7.4V

• BEC Continuous Current: 8A

• BEC Peak Current: 12A

• Motor Connector: Solder

• Battery Connector: Solder

• Motor Wire: 10AWG

• Battery Wire: 13AWG

• Programmable: Yes, with Cayote Xlink Program Box or Cayote Team App

Tech Note

To read and review recorded data, the Cayote Xlink Multifunction LCD Program Box (CYECPB01) or the Cayote Team app is required (sold separately).
