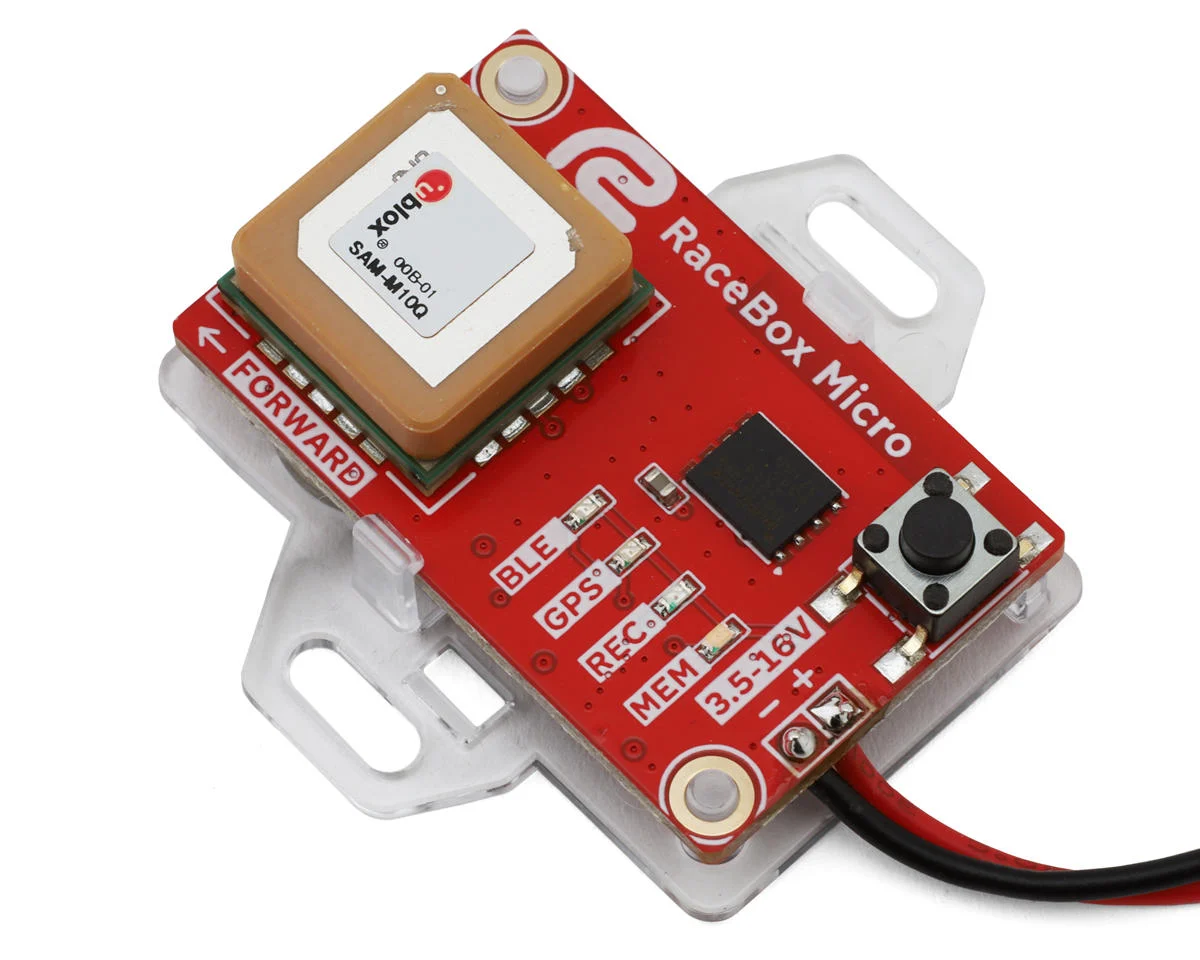

BOX001 Racebox Micro GPS Speed Meter & Telemetry Data Logger

RaceBox Micro GPS Speed Meter & Data Logger – Overview

The RaceBox Micro GPS Speed Meter & Data Logger is a compact, high-precision tracking device designed for DIY enthusiasts, racers, and developers. Built with advanced technology and a lightweight bare-board design, it offers reliable performance and easy integration into any project.

With support for both the RaceBox Protocol and the industry-standard NMEA format over Bluetooth, the RaceBox Micro connects seamlessly to a wide range of apps and devices. Developers will appreciate the detailed API documentation, making it easy to customize and expand functionality.

Equipped with a 25Hz GNSS receiver, the RaceBox Micro delivers exceptional accuracy, measuring position to within 10 centimeters. It excels in lap timing, drag timing, and performance logging, providing consistent and reliable data. The device also features standalone operation with built-in storage and a simple hardware button for easy start/stop recording.

Features

• Supports RaceBox Protocol and NMEA standard over Bluetooth

• 25Hz GNSS receiver with 10cm accuracy

• Standalone operation with built-in data storage

• Compatible with Android and iOS smartphones

• Tracks multiple satellite systems including GPS, GLONASS, and Galileo

• Includes high-precision accelerometer and gyroscope

• Wide voltage range: 3.5–16V with low power consumption

• Compact, lightweight design for easy integration

• Easy start/stop recording with a dedicated hardware button

Specifications

• GNSS Module: 25Hz

• Satellite Systems: GPS, GLONASS, Galileo, Beidou, SBAS, QZSS

• Voltage Range: 3.5–16V

• Power Consumption: 20mA (recording), <1mA (standby)

• Dimensions: 0.98 × 1.57 × 0.47 in (25 × 40 × 12 mm)

• Weight: 0.5 oz (15 g)

• Accelerometer: ±8G

• Gyroscope: ±320 dps

• Data Storage: >2 hours at 25Hz, >5 hours at 10Hz

• Connector: Female JST 2-pin

Includes

• (1) RaceBox Micro GPS Speed Meter & Data Logger

Needed to Complete

• (1) Compatible smartphone or device

• (1) 3.5–16V power source
