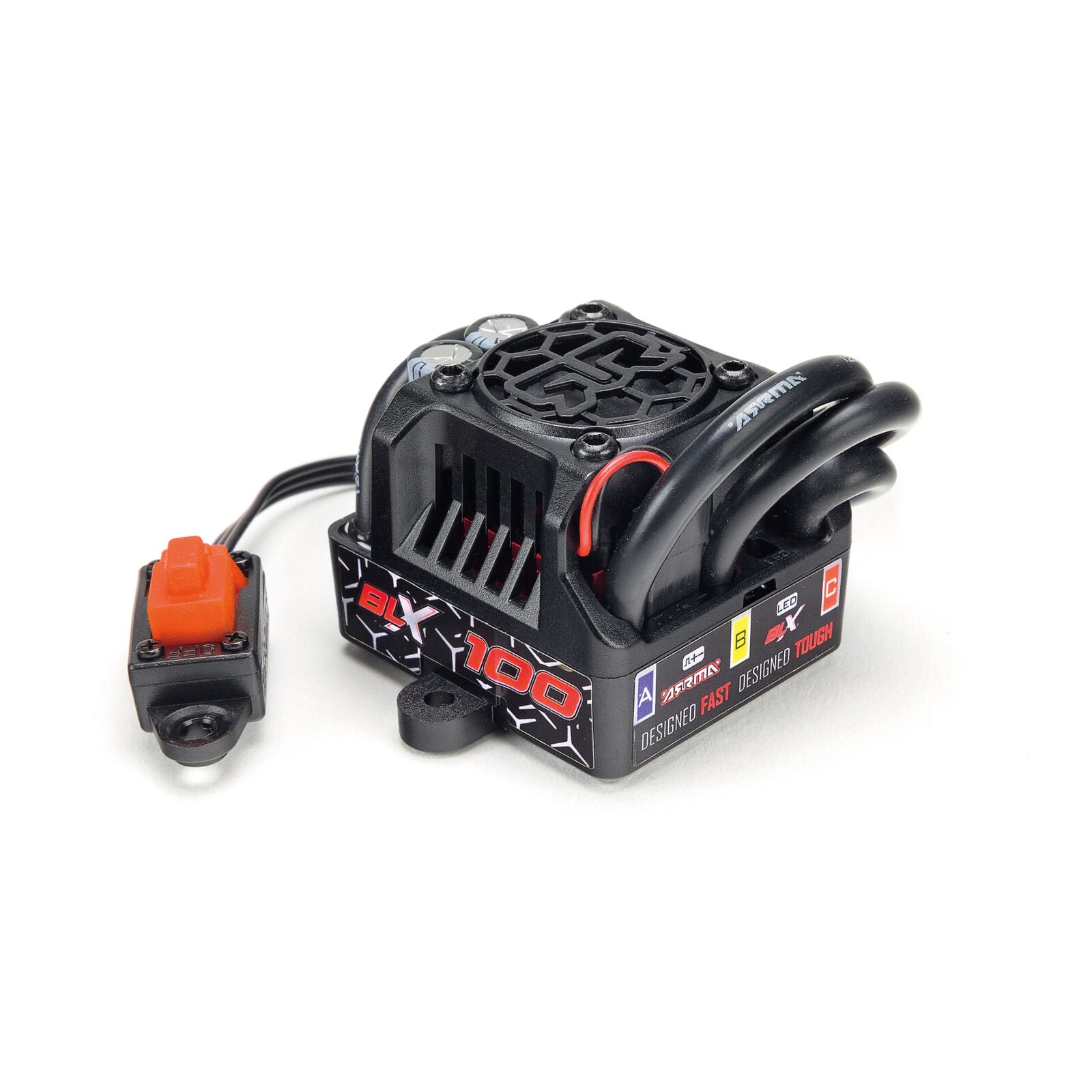

ARA390069 BLX100 Brushless 10th 3S ESC: 4x4

ARA390069 is a specific identification code used to reference a particular product, part, or catalog entry within an inventory or management system. This code allows for accurate tracking, efficient order processing, and organized record keeping. By using ARA390069, businesses and customers can quickly access essential information such as product specifications, availability, pricing, and transaction history. Unique reference codes like this help maintain operational clarity, minimize errors, and support smooth coordination across supply and sales channels.

Includes

1 x BLX100 Brushless 3S ESC

Features

Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

SPECIFICATION

Battery usage2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMHLow Voltage Cut-Off (LVC)3.4V per cellThermal Protection Temperature125°C / 257°FOver-Voltage ProtectionOver 12.6VBEC Voltage6VBEC Current4AESC Length43mm / 1.69"ESC Height34mm / 1.34"ESC Width54.5mm / 2.15" (Including hold-down tabs)ESC Weight120g / 4.2ozReceiver Wire Length170mm / 6.70"Battery Wire Length125mm / 4.92"Motor Wire Length (Including Connector)200mm / 7.87"Switch Length110mm / 4.33"Switch Width12.8mm / 0.5"Switch Height18mm / 0.71"Motor Bullet Connector Size4mm / 0.16"Wire Specifications12AWGESC Battery Connector TypeEC5
